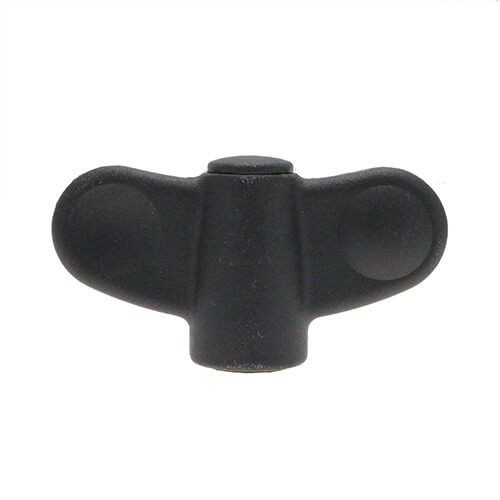

M5 Plastic Butterfly Wing Nut (Female Thread)
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.16 | £1.39 |
| 25 - 49 | £1.00 | £1.20 |
| 50 - 99 | £0.85 | £1.02 |
| 100 - 499 | £0.74 | £0.89 |
| 500 + | £0.68 | £0.81 |
£1.39 / each
.png)
Product Specification
| Head Size | 32mm x 19mm |
| Step Size | 11mm x 4mm |
| Thread Size | M5 |
| Thread Material | Brass |
| Thread Type | Female |
Frequently Bought Together
Total Price: £0.00
M5 Style 2 Butterfly Wing Nut - 32mm x 19mm | Brass Female Thread
Designed for compact fixtures, access panels and light equipment, this M5 Style 2 Butterfly Wing Nut uses a 32mm x 19mm Black Thermoplastic head with a Brass female thread. The 11mm x 4mm step section gives the fixing a defined locating profile while the butterfly shape provides a secure hand grip for repeated tightening and release.
What Are Style 2 Butterfly Wing Nuts?
Style 2 Butterfly Wing Nuts with female threads are hand-operated fastening components designed to screw onto compatible threaded studs or bolts. The moulded butterfly head gives more finger grip than a standard nut while the internal Brass thread provides the fastening connection.
Common Applications
- Machinery Guards: Allows suitable protective panels and guards to be tightened or released without routine spanner use.
- Production Jigs: Supports quick setup changes on stops, guides and positioning fixtures.
- Commercial Furniture: Supports adjustable or removable fittings on suitable furniture frames.
- Engineering Fixtures: Supports repeated adjustment on fabricated fixtures and equipment.
M5 32mm x 19mm Style 2 Butterfly Wing Nut Dimensions
- Head Size: 32mm x 19mm
- Step Size: 11mm x 4mm
- Thread Size: M5
- Thread Material: Brass
- Thread Type: Female
- Colour: Black
Key Benefits
- M5 metric thread provides a clear compatibility reference.
- 11mm x 4mm step size defines the lower locating section of the component.
- Female thread format suits the specified adjustment arrangement.
- Suitable for guards, stands, fixtures, frames and adjustable equipment.
View the complete Style 2 Butterfly Wing Nuts range to compare other thread sizes, head sizes and Female or Through Thread versions. You can also browse the wider Wing Nuts range for alternative styles. For help selecting the correct option, contact the Vital Parts technical sales team on 01233 713581.
