Plastic Inline Lift-off Hinge - HIN220
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £2.80 | £3.36 |
| 25 - 49 | £2.66 | £3.19 |
| 50 - 99 | £2.53 | £3.04 |
| 100 + | £2.28 | £2.74 |
Product Stock

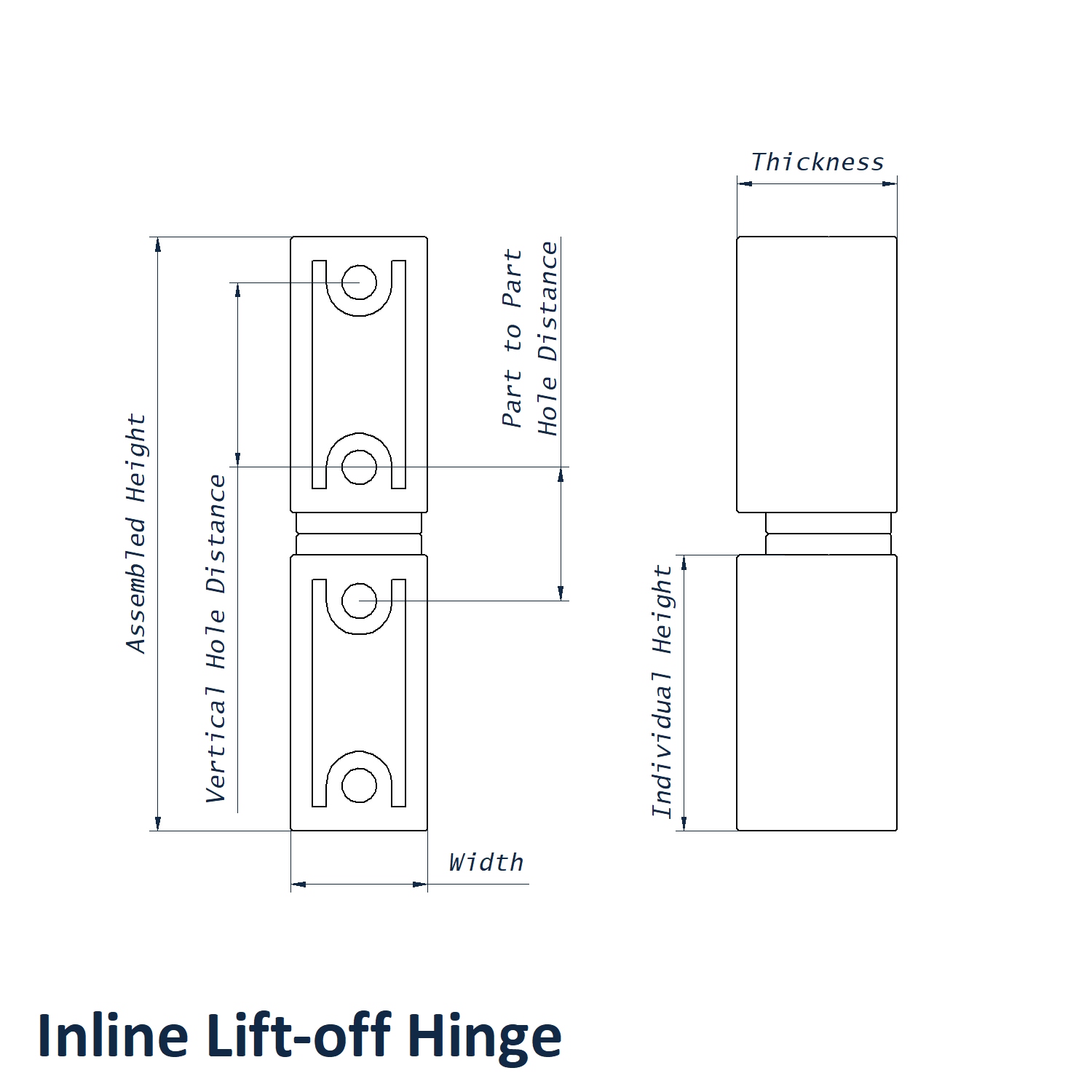

| Product Specifications | HIN220 |
|---|---|
| Assembled Height | 83mm |
| Width | 19mm |
| Vertical Hole Distance | 25.5mm |
| Male To Female Part Vertical Hole Distance | 19mm |
| Thickness | 22mm |
| Individual Height | 38mm |
| Thread Size | M6 |
| Colour | Black |
| Material | Nylon |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

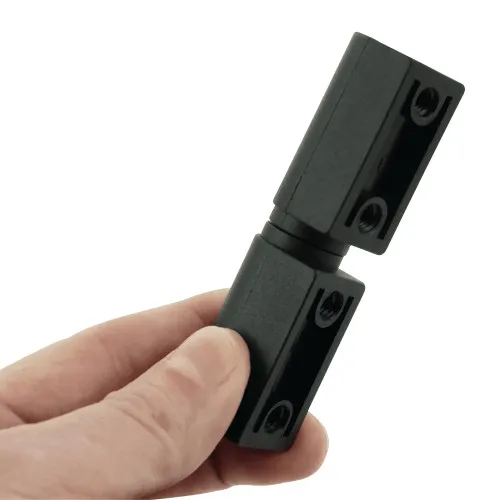

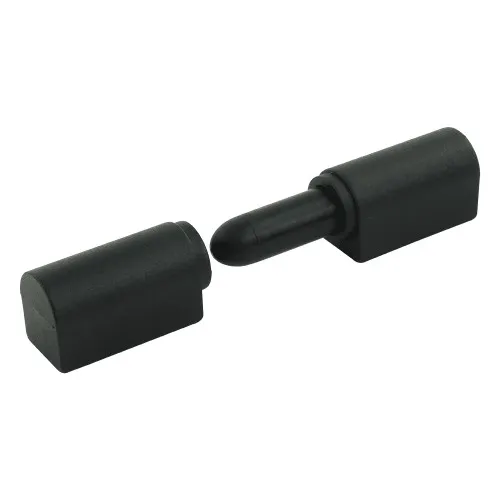

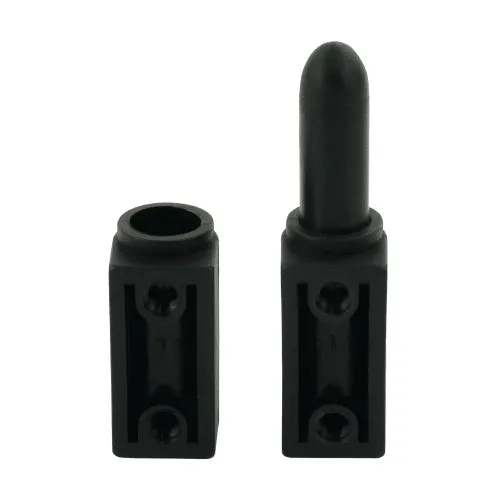

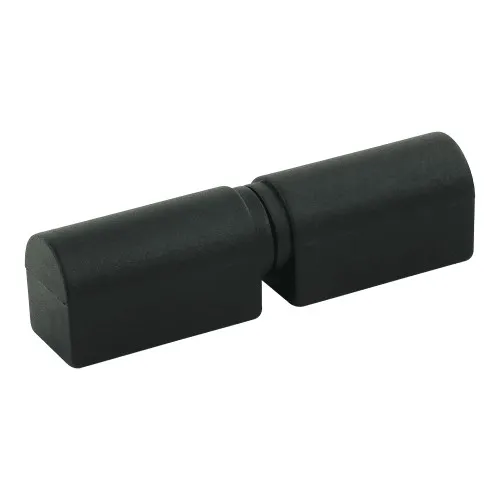

Plastic Inline Lift-off Hinges are designed for use in industrial cabinets and enclosures, allowing for the installation of a removable door. They can be installed in the same or opposing orientation to allow for easy access or to prevent the door from being lifted off.
This black Plastic Inline Lift-off Hinge has an assembled height of 83mm and a width of 19mm. The M6 threaded mounting holes are spaced out by a vertical distance of 25.5mm on the two parts, and when assembled the two parts have a hole distance of 19mm. It has a Thickness of 22mm and an Individual Height of 38mm.
These hinges come with threaded holes for clean mounting and are commonly used in IT, HVAC, Telecoms, and manufacturing machinery.
The Radial Load of this Hinge is 220N and the Axial Load is 640N.
