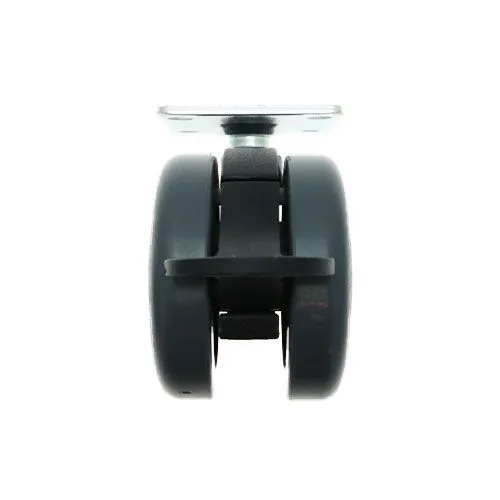

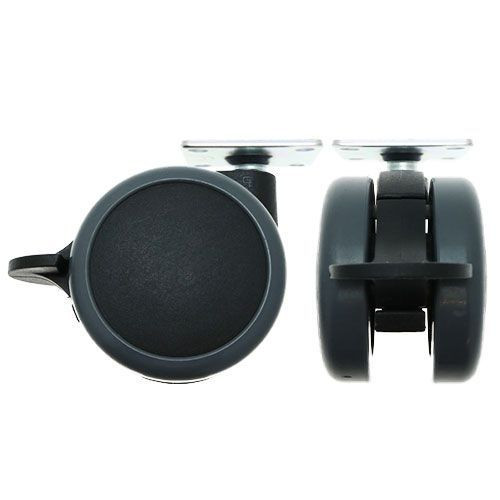

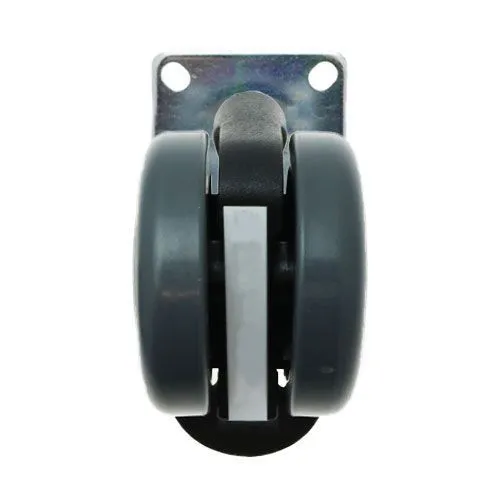

100mm Braked Conductive Plate Castor Wheel - 55mm x 55mm Plate (For Hard Floors) | 75kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £38.21 | £45.85 |
| 2 - 499 | £35.53 | £42.64 |
| 500 - 999 | £33.04 | £39.65 |
| 1000 - 4999 | £30.73 | £36.88 |
| 5000 - 9999 | £28.58 | £34.30 |
| 10000 + | £26.58 | £31.90 |
£45.85 / each
.png)
Product Specification
| Wheel Diameter | 100mm |
| Plate Size | 55mm x 55mm |
| Hole Centres | 40mm to 42mm Slot |
| Screw Hole Size | 6.0mm |
| Castor Height | 113.0mm |
| Style | For Hard Floor |
| Weight Rating | 75kg |
| Braked | Braked |
| Material | Nylon / Steel BZP |
Frequently Bought Together
Total Price: £0.00
100mm Braked Conductive Plate Castor - 55mm x 55mm Plate | Black Nylon / Steel BZP
Manufactured for ESD workstations and component-handling equipment, this conductive castor wheel combines a 55mm x 55mm mounting plate with 40mm to 42mm Slot hole centres and a 100mm wheel. Its Nylon / Steel BZP construction is specified for hard-floor applications while the brake provides parking control when the item needs to remain in position with a stated 75kg weight rating.
What Are Plate Castors?
Conductive plate castors combine a flat multi-hole mounting plate with a wheel design intended for static-sensitive environments. They are used where reducing static build-up is important, including electronics production and clean technical areas. Plate size, load rating, floor classification and brake status still need to match the equipment.
Common Applications
- Cleanroom Trolleys: Suitable for controlled-environment carts where static management is important.
- Test Equipment: Adds mobility to instrument stands and electronic inspection equipment.
- Technical Storage: Supports movable cabinets used for sensitive electronic parts and tools.
- ESD Workstations: Provides a conductive castor option for movable technical benches and fixtures.

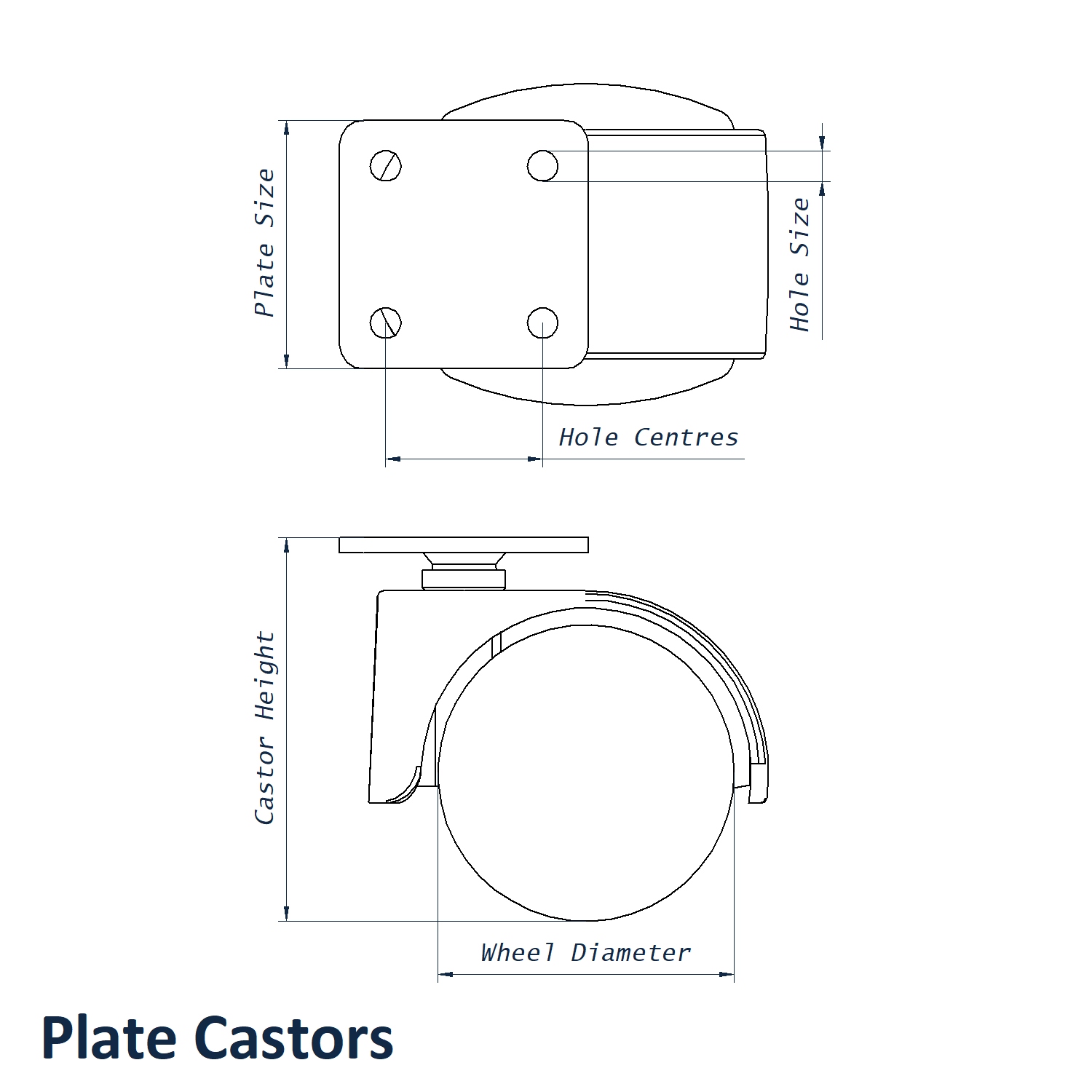

100mm 55mm x 55mm Braked Conductive Plate Castor Dimensions
- Plate Size: 55mm x 55mm
- Wheel Diameter: 100mm
- Castor Height: 113.0mm
- Hole Centres: 40mm to 42mm Slot
- Screw Hole Size: 6.0mm
- Style: For Hard Floor
- Braked: Braked
- Weight Rating: 75kg
- Material: Nylon / Steel BZP
- Colour: Black
Key Benefits
- The supplied 75kg weight rating supports load-based product selection.
- Conductive wheel specification supports equipment used in static-sensitive working areas.
- A 113.0mm castor height makes the finished installation height easy to plan.
- Nylon / Steel BZP construction matches the uploaded material specification.
Further configurations are available through the Vital Parts Plate Castors category. For assistance checking plate dimensions, wheel type or brake selection, speak with our team on 01233 713581.
