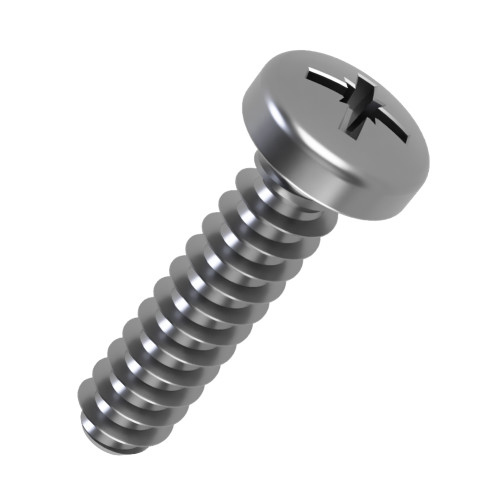

5mm x 16mm Pozi Pan Head Screw for Soft Plastics (PT30) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.47 | £0.57 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 249 | £0.19 | £0.23 |
| 250 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.57 / each
.png)
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 16mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.8mm |
| Head Height | 3.40mm |
| Drive | PZ2 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
5mm x 16mm Pozi Pan PT30 Screw for Soft Plastics | A2 Stainless Steel
Built for food and catering equipment components, this 5mm x 16mm PT30 Screw uses a Pan head, PZ2 drive and A2 Stainless Steel construction. The specialised thread form creates the mating thread in compatible plastics by displacement rather than conventional chip-forming self tapping.
What Are Pozi Pan PT30 Screws?
PT30 plastic screws are designed for moulded or predrilled pilot holes in materials such as polypropylene, ABS, LDPE and Nylon. Their thread-forming action pushes material aside rather than producing the chips and swarf associated with a conventional cutting screw.
Common Applications
- Furniture Components: Secures suitable moulded plastic fittings and components used in furniture manufacture.
- Control Equipment: Secures plastic covers and housings used around switches, sensors and control devices.
- Consumer Electronics: Fastens plastic casings, covers and internal supports used in electronic products.
- Retail Displays: Fastens moulded plastic display components, signs and point-of-sale equipment.

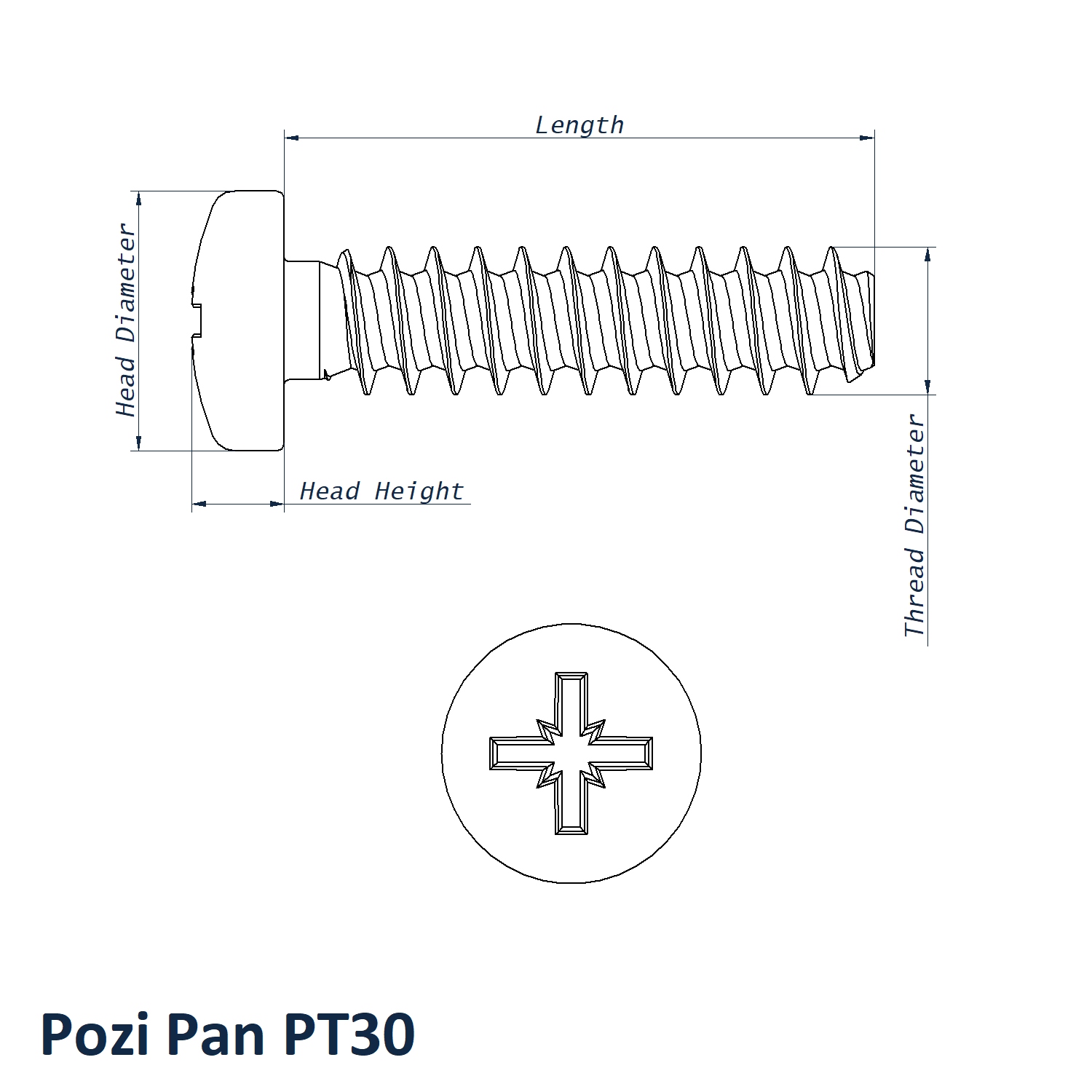

5mm x 16mm Pozi Pan PT30 Screw Dimensions
- Thread Size: 5.0mm
- Thread Length: 16mm
- Head Diameter: 8.8mm
- Head Height: 3.40mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- 8.8mm head diameter and 3.40mm head height match the uploaded SKU specification.
- Pan head provides a broad bearing surface above the plastic component.
- Thread-forming action displaces plastic rather than producing conventional cutting swarf.
- 5mm thread size and 16mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Pozi Pan PT30 Screw range. Our Engineering Guide to Screws for Plastic explains thread forming, 30° and 45° profiles, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
