RDD Right Angle Strain Relief Bushings - STRB181F
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £1.02 | £1.22 |
| 2 - 249 | £0.97 | £1.16 |
| 250 - 499 | £0.88 | £1.06 |
| 500 - 999 | £0.78 | £0.94 |
| 1000 - 2499 | £0.69 | £0.83 |
| 2500 - 4999 | £0.60 | £0.72 |
| 5000 + | £0.51 | £0.61 |
Product Stock
| Product Specifications | STRB181F |
|---|---|
| Mounting Hole Diameter | 15.9mm (14mm AF) |
| Panel Thickness | 0.8 - 2.5mm |
| Min Cable Diameter | 2.9 x 8.0mm |
| Max Cable Diameter | 4.1 x 7.6mm |
| Colour | White |
| Cable Type | Flat |
| Material | Nylon 66 |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

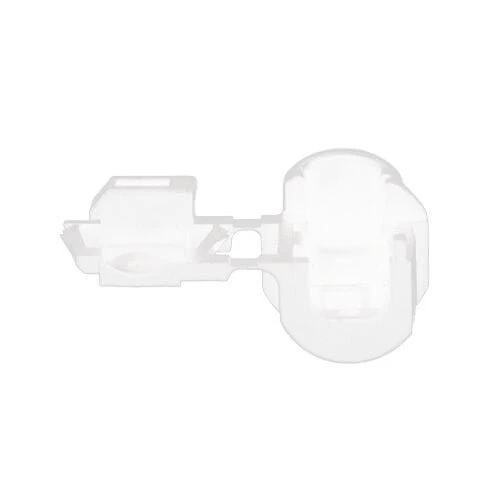

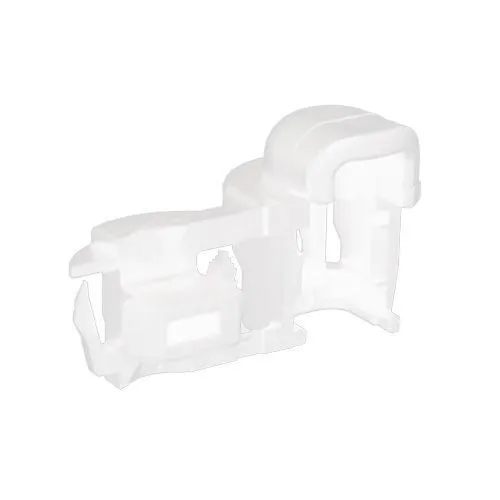

White RDD Right Angle Strain Relief Bushings - 15.9mm (14mm AF) Mounting Hole Diameter - For Cable Diameters from 2.9 x 8.0mm to 4.1 x 7.6mm - Flat Cable Type - Nylon 66 | Vital Parts - STRB181F
RDD Right Angle Strain Relief Bushings are part of the Heyco Lockit range and are designed to snap securely into double D-shaped panel holes. These bushings provide firm cable retention while preventing rotation after installation. The right-angle design guides cables smoothly into a bend, helping to avoid kinks and extend cable lifespan. Manufactured from UL94V-2 rated Nylon 6/6, they are suitable for use in a variety of electrical and mechanical environments, with operating temperatures between -18°C and +105°C.
CLICK HERE - to check out our guide to Strain Relief!
What are RDD Right Angle Strain Relief Bushings?
RDD Right Angle Bushings are strain relief components engineered to snap into double D-shaped holes. Their angled cable exit is ideal for use in confined spaces where depth is limited or where routing needs to change direction. With a Lockit finger design, they offer a secure, tool-free snap fit that reduces pull-out risk and rotational movement. They are available for both round and flat cable types across multiple panel thicknesses.
Key Features:
- Manufactured from UL94V-2 flammability rated Nylon 6/6
- Multiple Lockit finger design for secure snap-fit
- Right angle cable exit to prevent kinking
- Compatible with double D-shaped panel holes
- No tools required for installation
Key Applications and Industries
- Electrical panels and enclosures with space restrictions
- Equipment requiring strain relief at a cable bend
- Assembly lines looking for tool-free cable retention
- Appliances and electronics using double D knockouts
- General cable management in industrial systems
Technical Specifications :
- Mounting Hole Diameter: 15.9mm (14mm AF)
- Panel Thickness: 0.8 - 2.5mm
- Min Cable Diameter: 2.9 x 8.0mm
- Max Cable Diameter: 4.1 x 7.6mm
- Colour: White
- Material: Nylon 6/6 (UL94V-2 flame rating)
- Operating temperature range: -18°C to +105°C
- Mounting: Snap-fit for double D panel holes
- Cable fitment: Flat
Certifications:
- UL Recognised - File E15331
- Certified by CSA - File 8919
Installation Notes:
Push the bushing into a compatible double D-shaped panel hole until it locks securely. The angled cable route helps guide the wire while protecting against strain. Use "R" part numbers for round cable compatibility and "F" for flat.
Why Choose Vital Parts?
- UK-based supplier with fast dispatch and expert support
- Bulk discounts and trade pricing for larger orders
- Comprehensive range of strain relief and cable management solutions
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
