RDD Straight Thru Strain Relief Bushings - STRB129R
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 249 | £0.50 | £0.60 |
| 250 - 499 | £0.48 | £0.58 |
| 500 - 999 | £0.43 | £0.52 |
| 1000 - 2499 | £0.36 | £0.43 |
| 2500 - 4999 | £0.27 | £0.32 |
| 5000 + | £0.20 | £0.24 |
Product Stock
| Product Specifications | STRB129R |
|---|---|
| Mounting Hole Diameter | 22.2mm (19.6mm AF) |
| Panel Thickness | 0.8 - 4.0mm |
| Min Cable Diameter | 8.6mm |
| Max Cable Diameter | 10.9mm |
| Colour | White |
| Cable Type | Round |
| Knock Out Hole Size | 1/2" |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

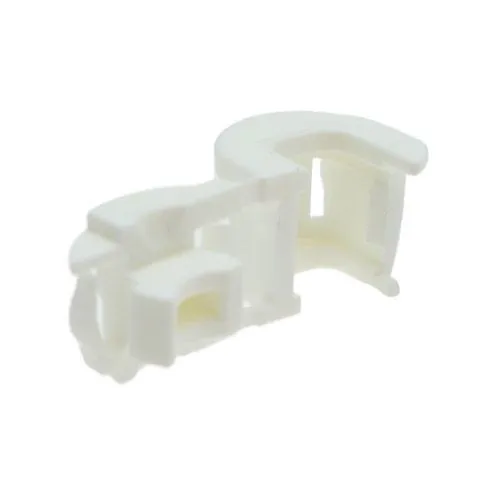

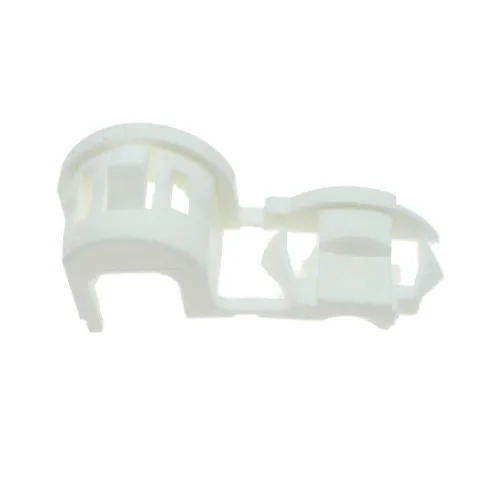

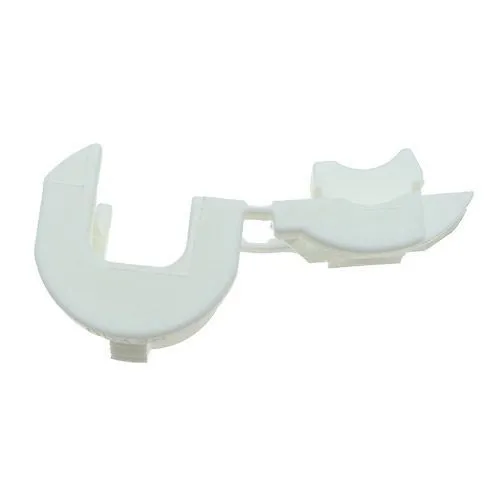

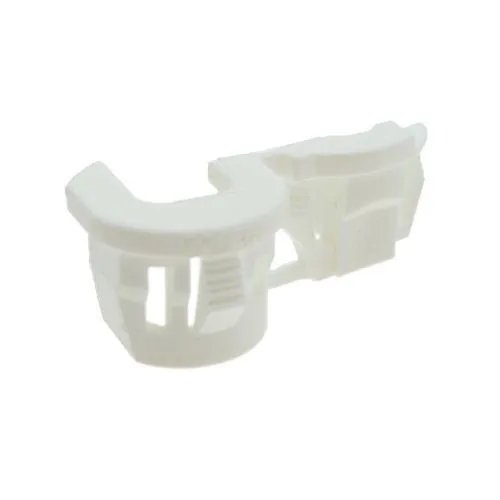

White RDD Straight Thru Strain Relief Bushings - 22.2mm (19.6mm AF) Mounting Hole Diameter - 8.6mm Min to 10.9mm Max Cable Diameter | Vital Parts - STRB129R
RDD Straight Thru Strain Relief Bushings are part of the Heyco Lockit range and are specifically designed to snap into double D-shaped panel holes. These bushings lock cables securely in place while eliminating the risk of rotation, which could lead to cable wear or failure. Manufactured from UL94V-2 rated Nylon 6/6, they are suitable for use across a wide range of environments and temperatures, from -18°C to +105°C.
What are RDD Straight Thru Strain Relief Bushings?
CLICK HERE - to check out our guide to Strain Relief!
RDD Bushings are strain relief devices that push-fit into double D-shaped panel cut-outs to prevent cable pull-out and rotational movement. The Lockit finger design offers secure snap-fit retention with no need for tools. Suitable for Round cable types, these bushings are ideal for use in electronics housings, electrical panels and industrial equipment where secure cable strain relief is required.
Key Features:
- Manufactured from UL94V-2 rated Nylon 6/6
- Multiple locking fingers for a secure snap-fit installation
- Prevents cable rotation within double D mounting holes
- Compatible with Round cables
- No installation tools required
Key Applications and Industries
- Electrical enclosures and cable management systems
- Panel strain relief for industrial and consumer equipment
- Secure wire routing in electronic appliances and devices
- Assembly-friendly installations without specialised tools
- Custom panels with standardised knockout hole dimensions

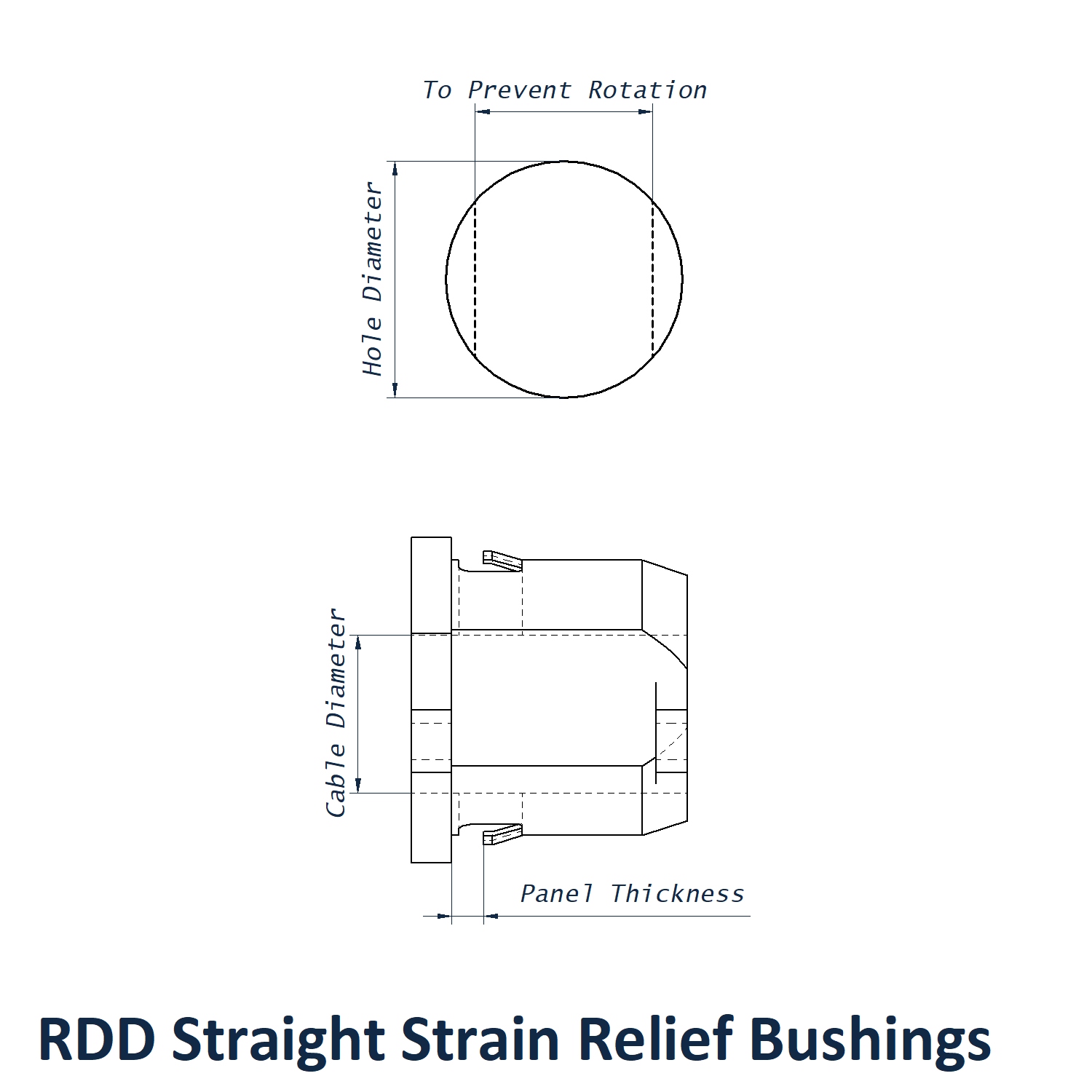

Technical Specifications :
- Mounting Hole Diameter: 22.2mm (19.6mm AF)
- Panel Thickness: 0.8 - 4.0mm
- Min Cable Diameter: 8.6mm
- Max Cable Diameter: 10.9mm
- Colour: White
- Knock Out Hole Size: 1/2"
- Material: Nylon 6/6 (UL94V-2 flame rating)
- Operating temperature range: -18°C to +105°C
- Mounting: Snap-fit into double D holes
- Cable fitment: Round designations
Certifications:
- UL Recognised - File E15331
- Certified by CSA - File 8919
Installation Notes:
Simply align and press the bushing into a double D-shaped mounting hole until it snaps into place. Part numbers ending with "R" refer to round cable compatibility, while "F" refers to flat cable compatibility. No tools are required for installation.
Why Choose Vital Parts?
- UK-based supplier with fast dispatch and expert support
- Bulk discounts and trade pricing for larger orders
- Full range of Heyco strain relief solutions in stock
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
