Rectangular Blanking Plugs - BLA398
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £0.71 | £0.85 |
| 2 - 249 | £0.68 | £0.82 |
| 250 - 499 | £0.62 | £0.75 |
| 500 - 999 | £0.50 | £0.60 |
| 1000 - 2499 | £0.44 | £0.53 |
| 2500 - 4999 | £0.38 | £0.46 |
| 5000 + | £0.26 | £0.31 |
Product Stock
| Product Specifications | BLA398 |
|---|---|
| Mounting Hole Length | 11.5mm |
| Mounting Hole Width | 13.9mm |
| Maximum Thickness | 2.50mm |
| Material | Nylon 6/6 |
| Head Dimensions | 14.7mm x 14.7mm |
| Overall Height | 10.2mm |
| Colour | Black |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Rectangular Blanking Plugs - 13.9mm Mounting Hole Width - 11.5mm Mounting Hole Length - 2.5mm Maximum Thickness - 14.7mm x 14.7mm Head Dimensions - 10.2mm Overall Height - Black Nylon 6/6 | Vital Parts - BLA398
Our Rectangular Blanking Plugs are an ideal solution for sealing off unwanted rectangular panel holes and connector ports. Manufactured from UL94V-2 rated Nylon 6/6, these plugs are designed for secure snap-fit installation using integrated locking fingers. With excellent resistance to high and low temperatures, they are well-suited for both indoor and outdoor use across a range of industries including electronics, manufacturing and electrical systems. These plugs are a reliable and professional option for covering American standard outlet cut-outs and other common rectangular hole formats.
What are Rectangular Blanking Plugs?
Rectangular Blanking Plugs are specialised snap-in fasteners used to close off open rectangular holes in panels, enclosures, or electrical boxes. Designed to fit securely using built-in locking fingers, they function much like traditional round Snap Fit Blanking Plugs but are specifically tailored for non-circular openings. These plugs are made from durable Nylon 6/6 and offer a sleek rectangular head for a neat, flush finish. Engineered to accommodate a wide range of panel thicknesses, these plugs are suitable for commercial and industrial applications where both function and appearance are important.
Key Features:
- Manufactured from UL94V-2 rated Nylon 6/6 for flame resistance
- Designed to snap securely into place using integrated locking fingers
- Temperature resistant from -40°C to 105°C
- Rectangular head design for non-circular cut-outs
- Neat flush finish in for professional appearance
- Available in a variety of standard mounting hole and panel thickness options
Key Applications and Industries
In the UK, Rectangular Blanking Plugs are used widely across key sectors:
- Electrical installation: Blanking off unused connector ports or power outlets
- Electronics: Closing off rectangular component access points
- Industrial control panels: Sealing legacy or spare openings
- Appliance manufacturing: Finishing unused cut-outs in panels or housings
- Telecoms and IT: Blanking unused slots in server and rack enclosures

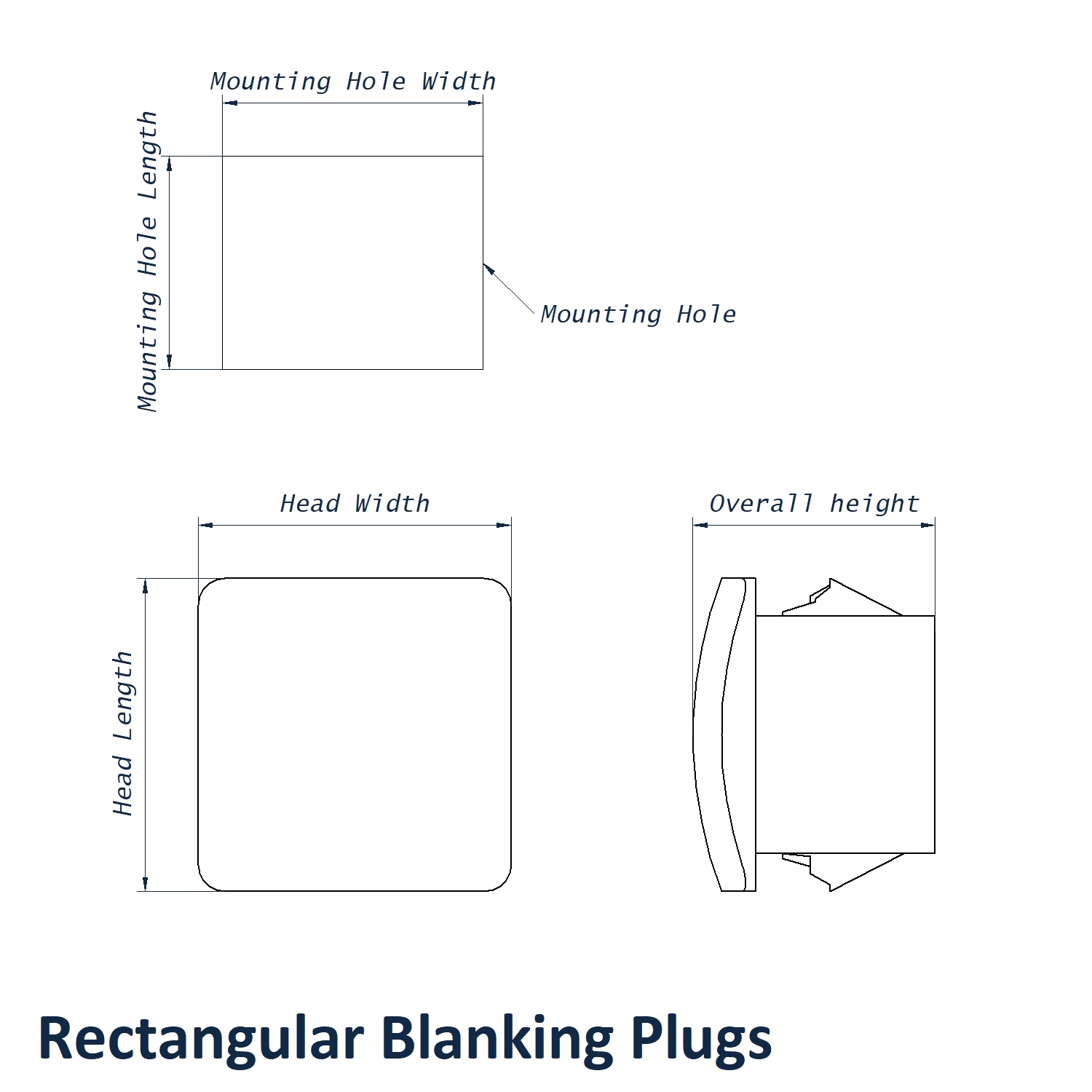

Technical Specifications
- Mounting Hole Width : 13.9mm
- Mounting Hole Length : 11.5mm
- Maximum Thickness : 2.5mm
- Head Diameter : 14.7mm x 14.7mm
- Overall Height : 10.2mm
- Material: Nylon 6/6 (UL94V-2 flame rated)
- Temperature resistance: -40°C to 105°C
- Head style: Rectangular, flush-fit
- Colour: Black
- Mounting: Locking fingers for secure snap-fit installation
- Available sizes: Multiple panel thickness and hole size options
Benefits:
- Provides a secure and professional closure for rectangular holes
- Prevents ingress of dust, debris and moisture
- Neat finish improves visual appeal of panels and enclosures
- Quick and tool-free installation saves time on production lines
- Durable nylon construction ensures long-term performance in tough environments
Why Buy from Vital Parts?
As a trusted UK supplier of high-quality fasteners and industrial components, Vital Parts offers a customer-first experience with benefits that include:
- Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
- Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
- Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.
Click here to view our full Guide to Plugs & Stoppers
Rectangular Blanking Plugs provide a quick, clean and secure solution for blanking off non-round holes in a wide range of applications. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
