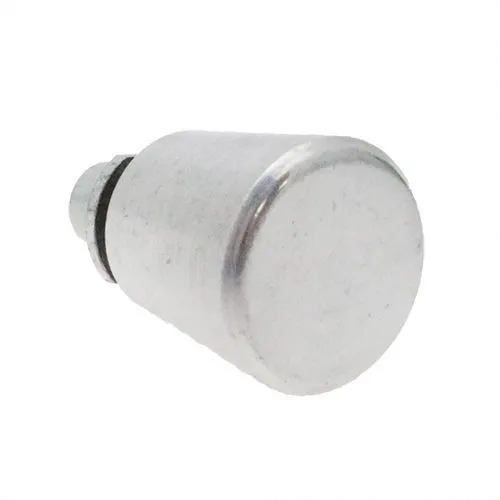

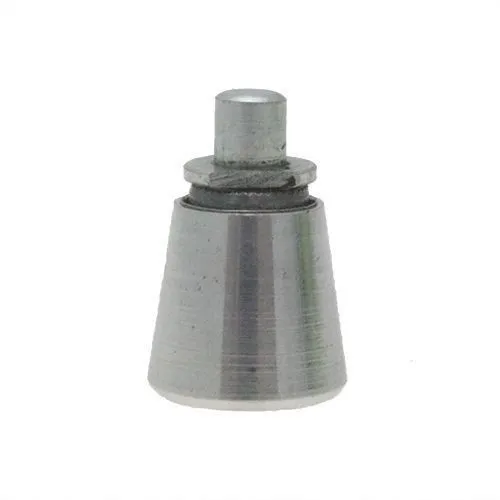

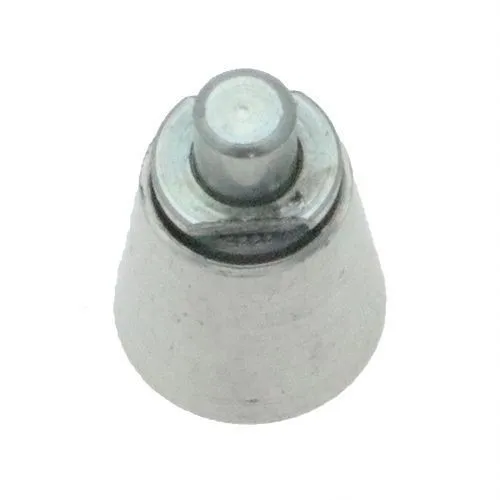

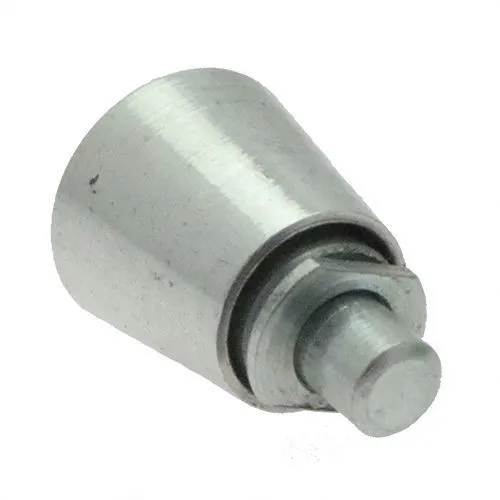

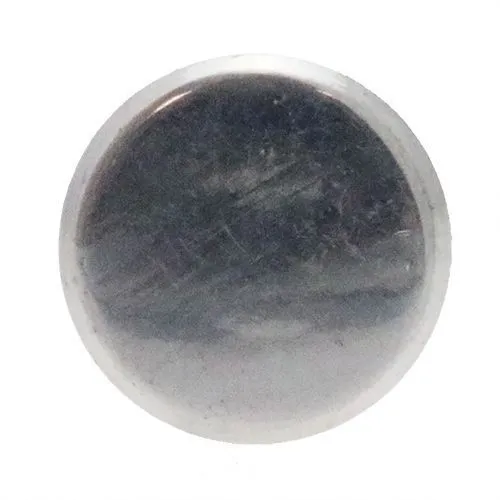

Retractable Index Plungers - IND066
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £2.27 | £2.72 |
| 25 - 49 | £2.26 | £2.71 |
| 50 - 99 | £2.09 | £2.51 |
| 100 - 499 | £1.88 | £2.26 |
| 500 + | £1.43 | £1.72 |
Product Stock

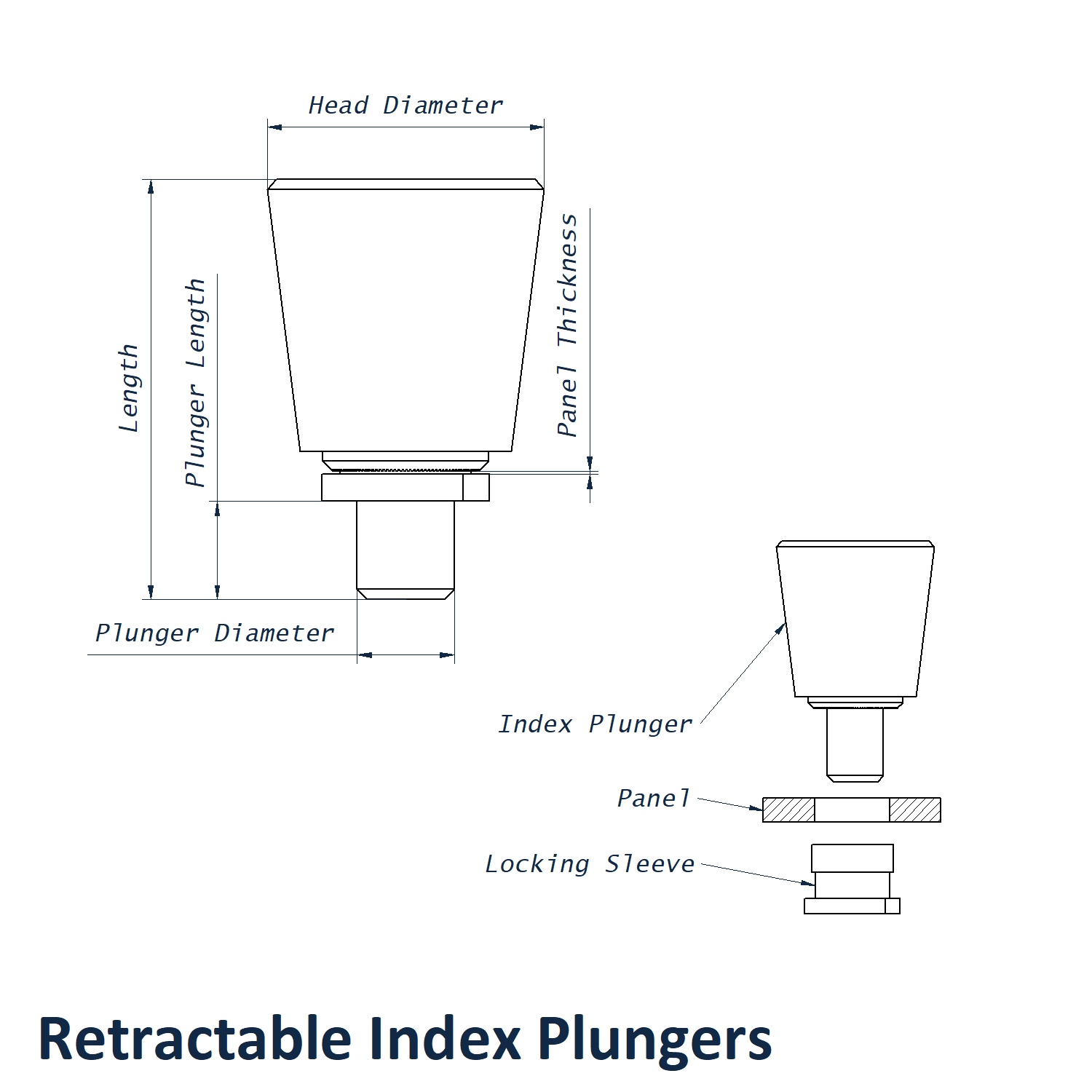

| Product Specifications | IND066 |
|---|---|
| Head Diameter | 17mm |
| Thread Size | M10 |
| Plunger Diameter | 6.2mm |
| Length | 26mm |
| Material | Aluminium |
| Locking Rest Position | Yes |
| Colour | Self-colour |
| Force For Full Retraction | 5N |
| Initiating Force | 1N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This aluminium index plunger has a 17mm head diameter and a M10 thread size. It has a plunger diameter of 6.2mm and a length of 26mm. It is available in Aluminium. Does it have a locking rest position? Yes.
The Retractable Index Plungers or retractable plungers come with an aluminum knob, steel spring, and release pin that allows for locking or positioning uses within a mechanism. They are recommended for restricted applications where there is a need to prevent wasted space, thanks to the short stroke pin that retracts during use.
These release pin plungers come with rest position functionality and can be locked in place to hold a position without the need for constant pressure. They are excellent for many positional uses within machinery or appliances and come in different finishes and thread sizes between M8 and M10, each with a locking rest position from standard.
