60.3-88.4mm Ribbed Pipe Plug (88.9mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.04 | £1.25 |
| 2 - 10 | £1.04 | £1.25 |
| 11 - 50 | £0.97 | £1.16 |
| 51 - 100 | £0.89 | £1.07 |
| 101 - 500 | £0.82 | £0.99 |
| 501 + | £0.77 | £0.92 |
£1.25 / each
.png)
Product Specification
| To Fit Internal Diameter | 60.3-88.4mm |
| Max Wall Thickness | 17.0mm |
| Head Diameter | 88.1 |
| Pipe Outside Diameter | 88.9mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00
88.9mm Ribbed Pipe End Plug (60.3-88.4mm Internal Fit) | Red LDPE
Ideal for 88.9mm pipe ends, this red ribbed LDPE protector fits internal diameters from 60.3-88.4mm and walls up to 17.0mm thick. Its 88.1 head diameter provides near-full face coverage while the internal ribs help retain the plug during handling, warehousing and delivery.
What Are Ribbed Pipe End Plugs?
This size is intended for large-bore pipe where secure temporary protection must remain easy to remove. The ribbed shank flexes to suit the internal opening and avoids the need to wrap or fasten a separate cover around the pipe. The head limits insertion and protects the end edge.
Common Applications
- Large-Diameter Pipework: Protects prepared ends before joining or site installation.
- Oil and Fluid Equipment Components: Keeps suitable open pipe sections covered during manufacture.
- Heavy Fabrication: Reduces ingress into large tubular parts between production operations.
- Engineering Logistics: Maintains visible protection through storage and delivery.

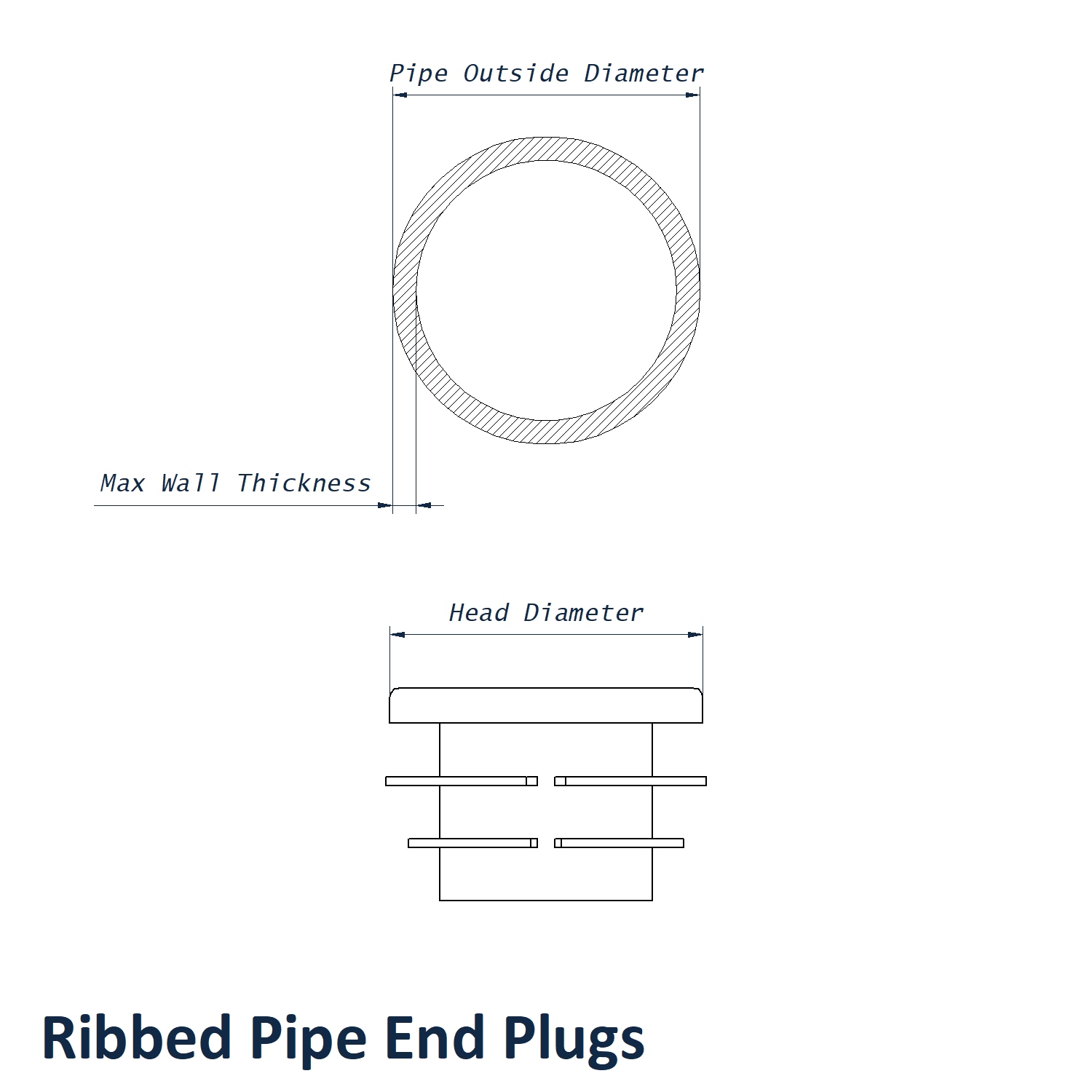

88.9mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 88.9mm
- Max Wall Thickness: 17.0mm
- To Fit Internal Diameter: 60.3-88.4mm
- Head Diameter: 88.1
- Material: Red LDPE
Key Benefits
- Matched to 88.9mm pipe outside diameters
- Suitable for walls up to 17.0mm thick
- Wide ribbed shank fits bores from 60.3-88.4mm
- 88.1 head diameter provides extensive pipe-end coverage
View the complete Ribbed Pipe End Plugs range to compare neighbouring pipe sizes and internal diameter options. For help checking the correct fit against your pipe measurements, contact the Vital Parts technical sales team on 01233 713 581.
