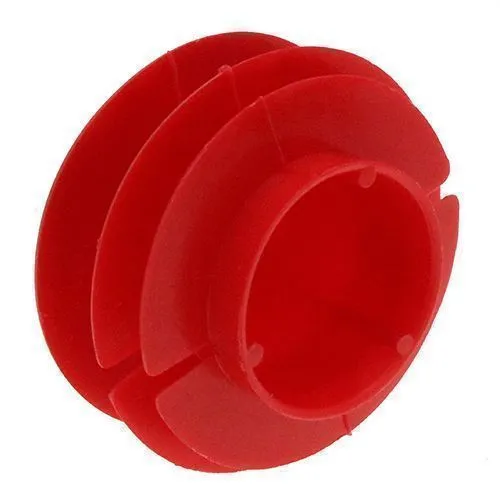

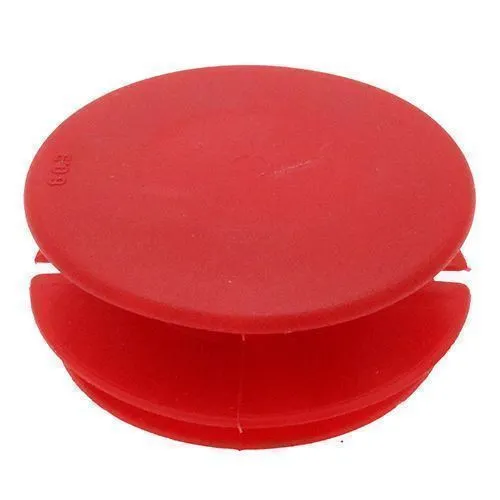

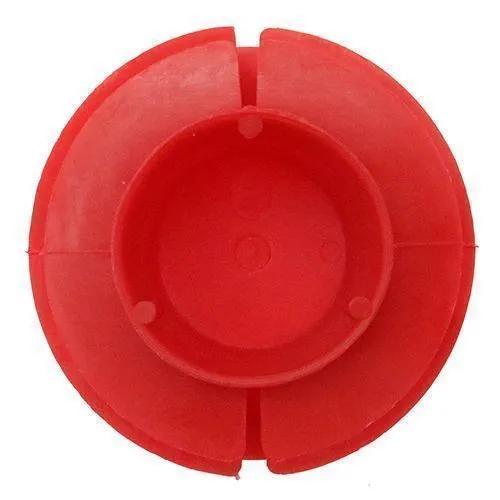

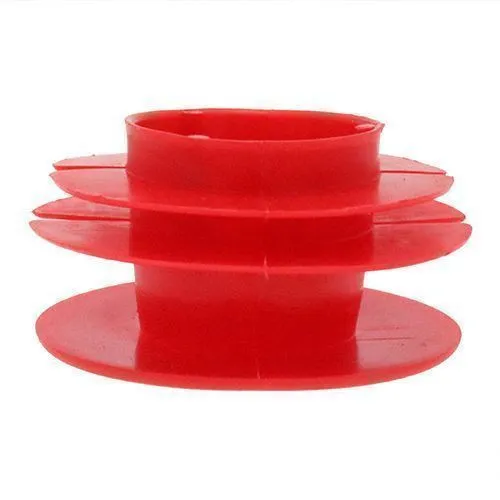

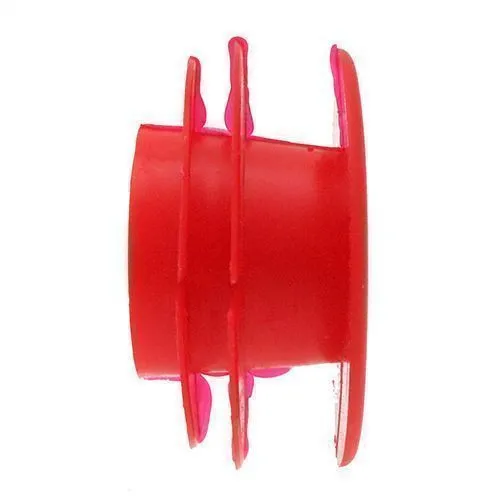

28.9-54.5mm Ribbed Pipe Plug (47.5-48.3mm Pipe OD) | Red LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.82 | £0.98 |
| 2 - 10 | £0.82 | £0.98 |
| 11 - 50 | £0.77 | £0.92 |
| 51 - 100 | £0.70 | £0.84 |
| 101 - 500 | £0.65 | £0.78 |
| 501 + | £0.60 | £0.72 |
£0.98 / each
.png)
Product Specification
| To Fit Internal Diameter | 28.9-54.5mm |
| Max Wall Thickness | 9.0mm |
| Head Diameter | 48.1 |
| Pipe Outside Diameter | 47.5-48.3mm |
| Material | Red LDPE |
Frequently Bought Together
Total Price: £0.00
47.5-48.3mm Ribbed Pipe End Plug (28.9-54.5mm Internal Fit) | Red LDPE
Developed for 47.5-48.3mm pipework, this red pipe end plug protects internal diameters from 28.9-54.5mm and accommodates walls up to 9.0mm. Its LDPE ribs help retain the plug inside the bore while the 48.1 head diameter guards the exposed end during movement and storage.
What Are Ribbed Pipe End Plugs?
As this larger plug is pushed into place, the ribbed shank adapts to the internal pipe size and provides progressive resistance. The head prevents the body from travelling too far into the pipe and offers a clear red surface for inspection teams to spot before final assembly.
Common Applications
- Large Tube Assemblies: Protects open sections before welding, fastening or connection.
- Plant and Machinery Frames: Keeps pipe interiors covered during staged production.
- Construction Supply: Reduces ingress into tubular components held on site.
- Exported Engineering Parts: Provides visible temporary protection during long-distance transport.

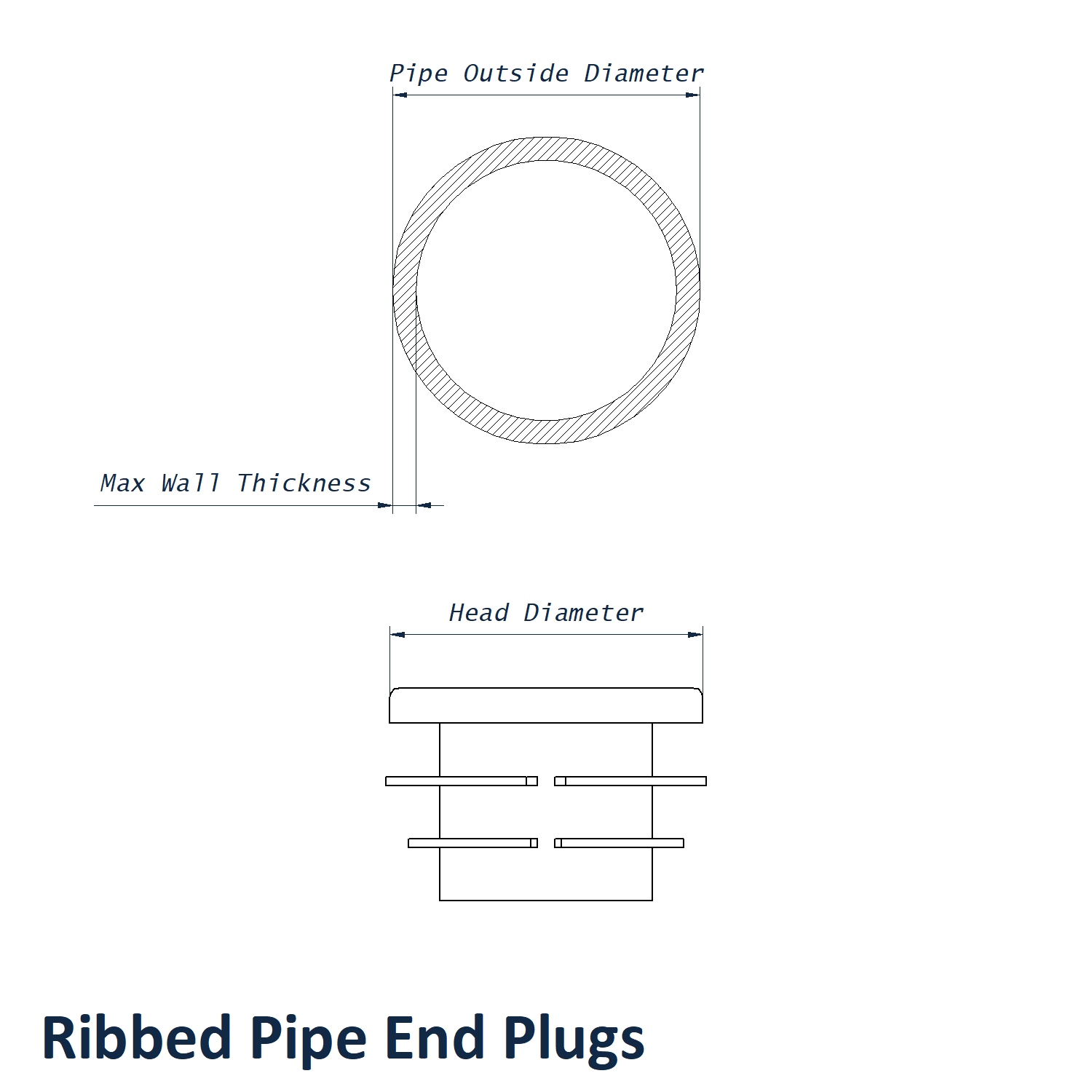

47.5-48.3mm Red LDPE Ribbed Pipe End Plug Dimensions
- Pipe Outside Diameter: 47.5-48.3mm
- Max Wall Thickness: 9.0mm
- To Fit Internal Diameter: 28.9-54.5mm
- Head Diameter: 48.1
- Material: Red LDPE
Key Benefits
- Matched to 47.5-48.3mm pipe outside diameters
- Supports wall thicknesses up to 9.0mm
- 28.9-54.5mm internal fit range offers useful flexibility
- 48.1 head diameter helps shield the pipe edge
Browse related internal pipe protection sizes in the Ribbed Pipe End Plugs collection. Our team can help match the plug to your outside diameter, wall thickness and bore on 01233 713 581.
