Ring Pull Index Plungers - IND034
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £2.43 | £2.92 |
| 25 - 49 | £2.43 | £2.92 |
| 50 - 99 | £2.25 | £2.70 |
| 100 - 499 | £2.03 | £2.44 |
| 500 + | £1.54 | £1.85 |
Product Stock

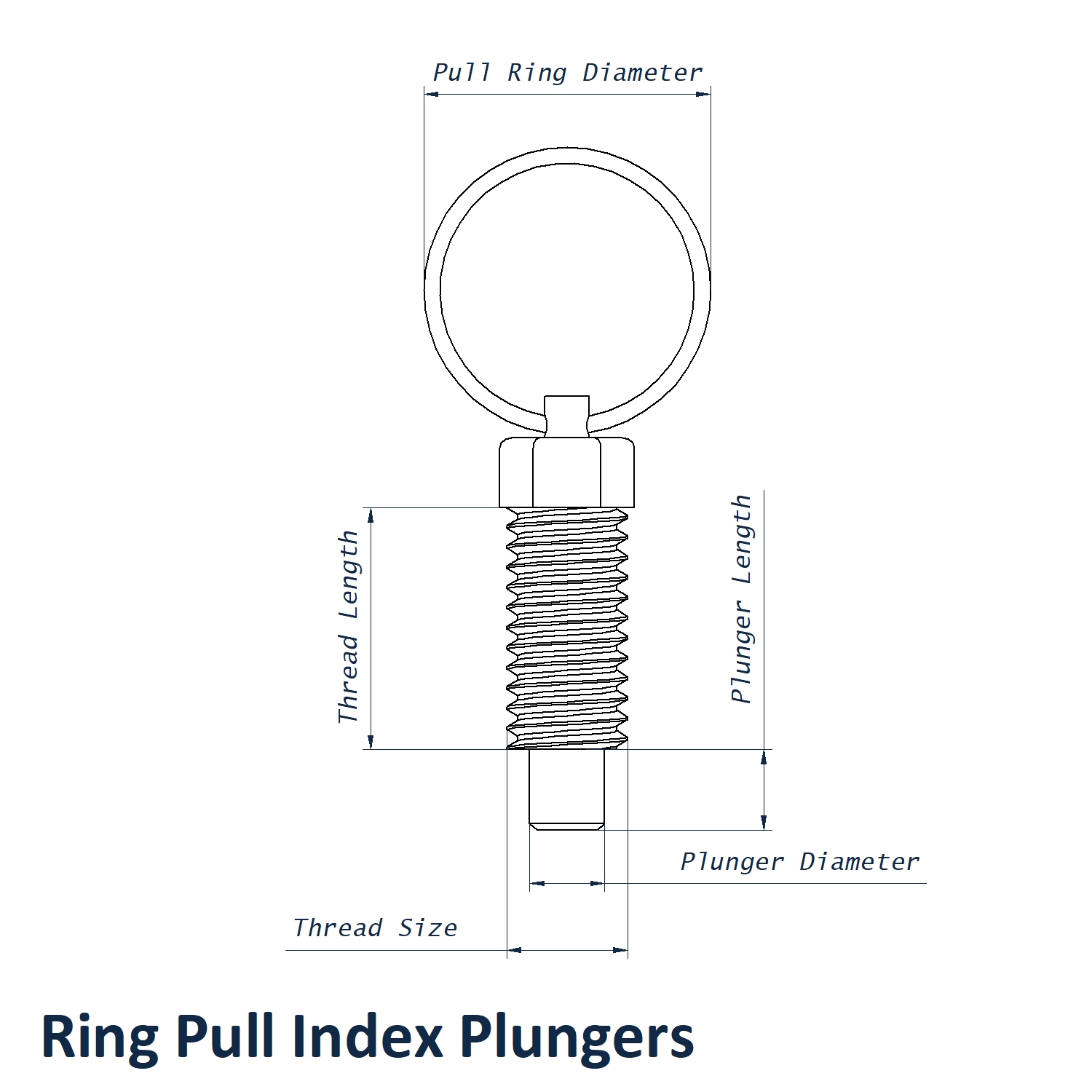

| Product Specifications | IND034 |
|---|---|
| Head Diameter | 30mm |
| Thread Size | M12 |
| Length | 24mm |
| Plunger Diameter | 8mm |
| Material | Zinc Plated Steel & Stainless Steel Pin |
| Plunger Length | 8mm |
| Initiating Force | 7N |
| Full Retraction Force | 18N |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description

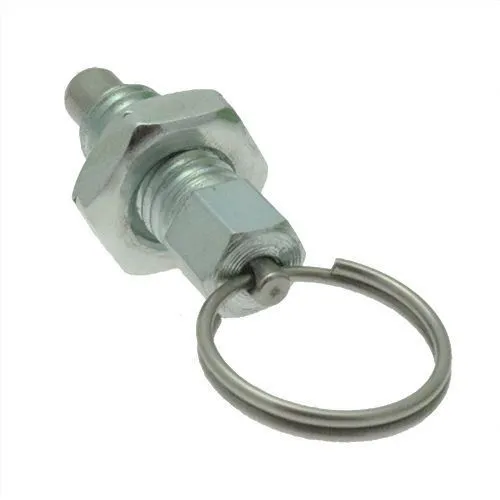

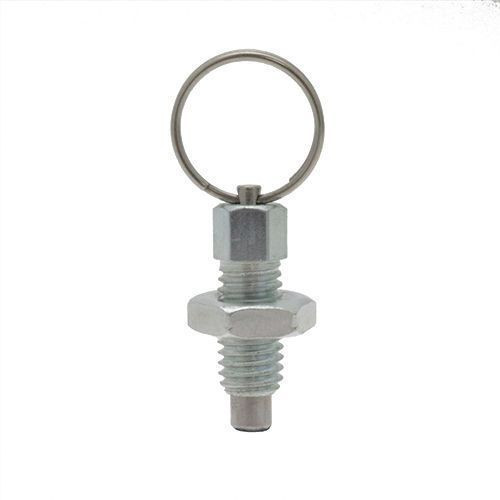

This ring pull index plunger has a 30mm head diameter and a 24mm length. It has a 8mm plunger diameter and is sized to fit a M12 thread. It is constructed from Zinc Plated w/SS Pin.
Ring Pull Index Plungers are operated via a lift ring and locking nut to activate a retractable spring-loaded mechanism. Made from a zinc-plated steel threaded body and a stainless steel pin, these plungers are suitable for moderately weighted uses where load bearing is minimal.
They are commonly used in industrial hardware and machinery to lock or position an application. The lift ring on each plunger prevents gripping issues. These plungers are available in several sizes, with threaded body sizes between M6 and M12.
They are commonly used as index plungers to hold an object in position. Free samples may be available upon request for Business customers.
