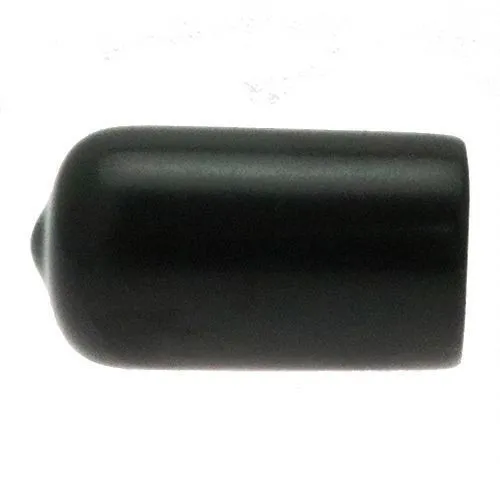

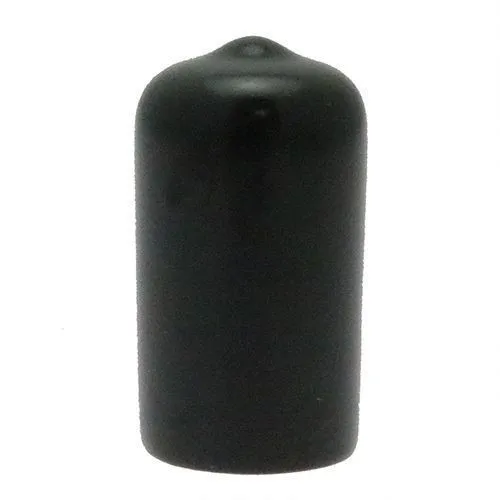

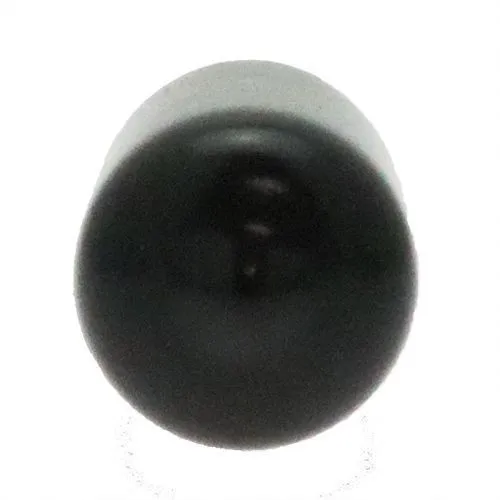

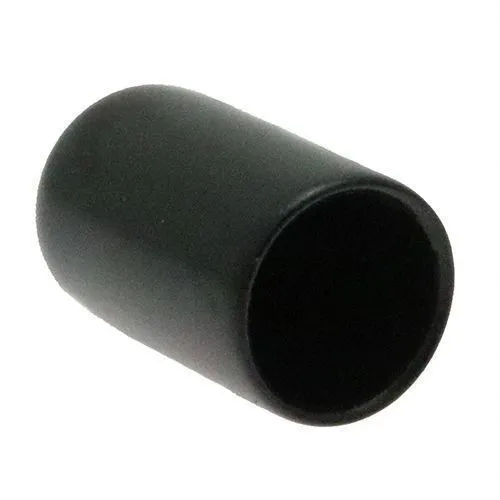

11.9mm x 12.7mm (M12) Stud Cap - Black | PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.00 | £1.20 |
| 2 - 50 | £0.45 | £0.54 |
| 51 - 100 | £0.33 | £0.39 |
| 101 - 500 | £0.23 | £0.27 |
| 501 - 1000 | £0.14 | £0.17 |
| 1001 - 5000 | £0.09 | £0.11 |
| 5001 - 10000 | £0.07 | £0.08 |
| 10001 + | £0.05 | £0.06 |
Product Specification
| Internal Diameter | 11.90mm |
| Length | 12.7mm |
| Wall Thickness | 1.4mm |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
11.90mm x 12.7mm PVC Stud Cap | Black PVC
Used for finishing black threaded caps during hydraulic fittings, this black thread cap is sized with a 11.90mm internal diameter and 12.7mm cap length for M12 thread coverage. The black PVC body provides a simple cover for thread protection, packing and component handling.
Its form is useful where threads need to stay protected between process stages such as coating, painting, storage or inspection. It can be used as a contamination control solution for threaded studs, rods, fittings and small assemblies where protection, presentation and quick removal are all important.
What Are PVC Stud Caps?
Thread protection caps are flexible vinyl covers that sit over an exposed threaded end. They are commonly used to reduce contamination, handling damage and unwanted marks while parts are stored, transported or prepared for installation.
Common Applications
- Hydraulic and pneumatic fitting protection
- Keeping connection threads cleaner
- Covering small threaded ports and studs
- Reducing contamination during maintenance work

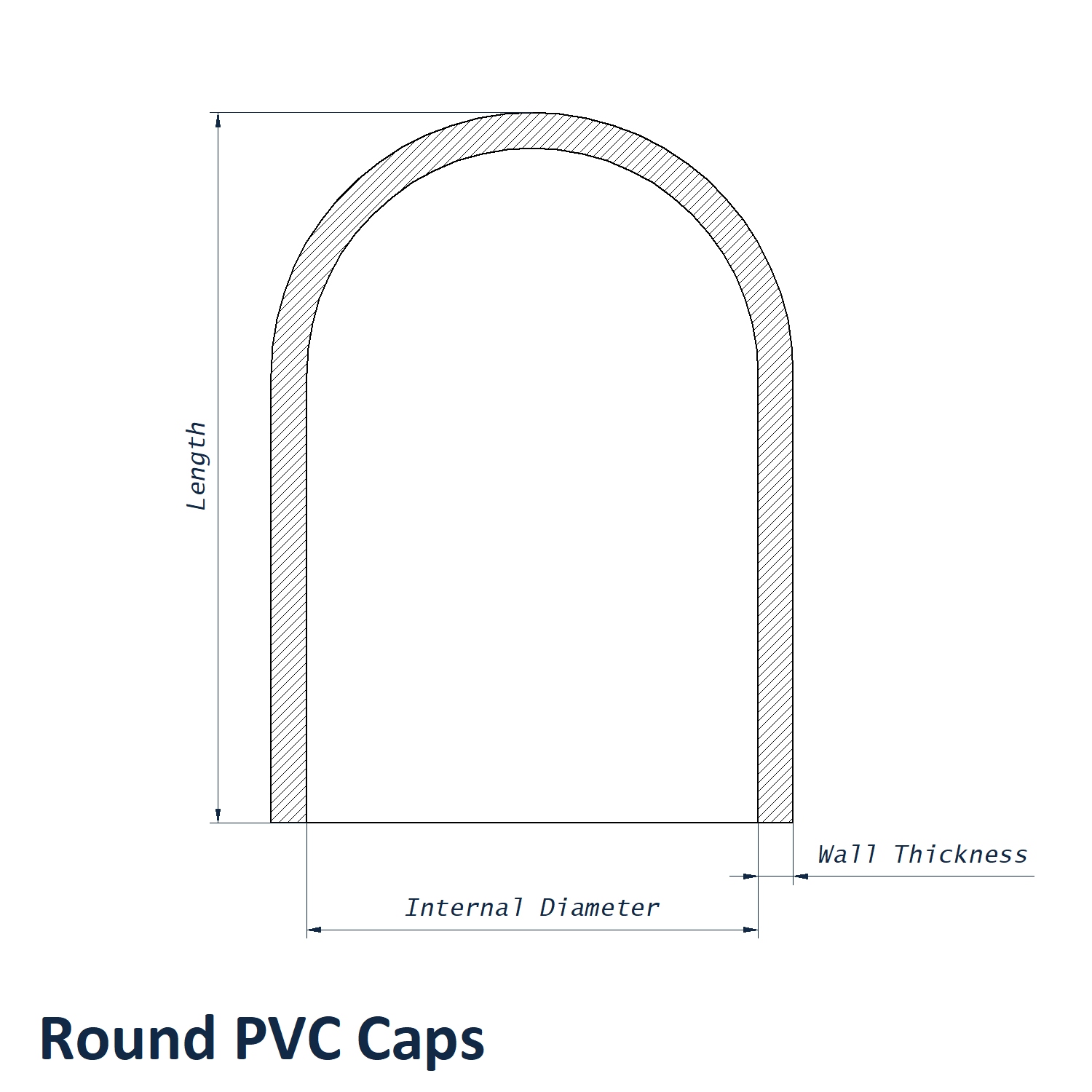

11.90mm x 12.7mm Black PVC Stud Cap Dimensions
- Internal Diameter: 11.90mm
- Length: 12.7mm
- Wall Thickness: 1.4mm
- Colour: Black
- Material: PVC
Thread and Stud Protection
These PVC stud caps are suited to exposed threaded parts that need protection from dirt, dust, moisture and handling damage. The push-on design helps keep installation quick while the flexible PVC construction supports secure coverage over the selected stud or rod size.
View our full PVC Stud Caps range.
Product Support and Trade Orders
If you are matching these caps to a metric stud, threaded rod or application with limited clearance, our team can help confirm a sensible fit. Call 01233 713581 for product guidance, samples where available and trade order support.
