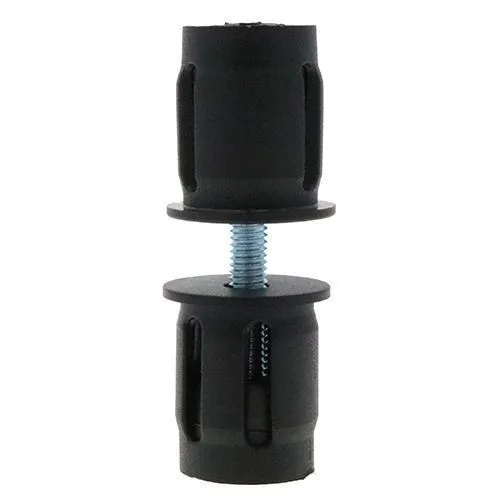

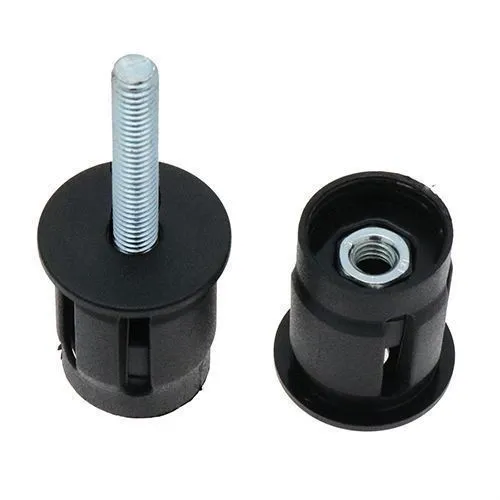

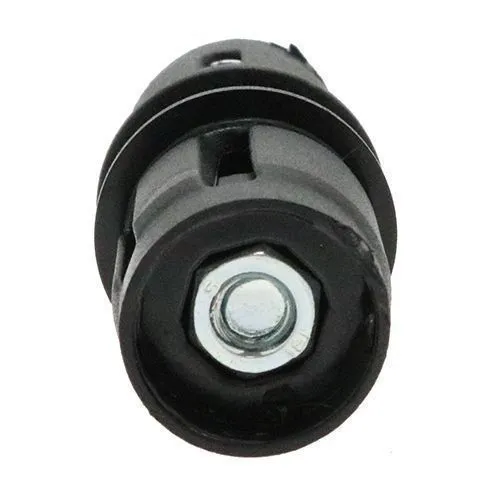

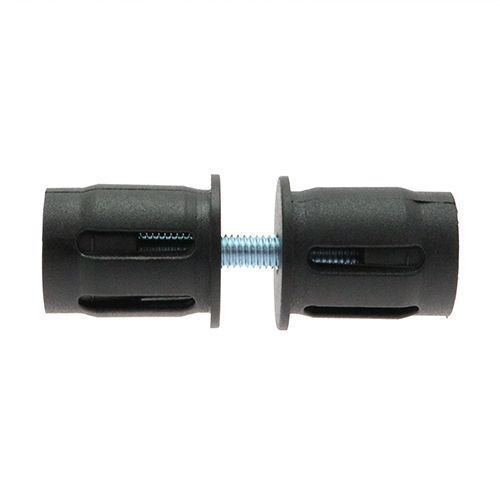

16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon

Product code: TC111
View All Specifications
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
16mm Round Tube Connector (M6 Thread) - 20mm Length - 1mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.84 £1.01
100 - 249 £0.70 £0.84
250 - 499 £0.59 £0.71
500 - 999 £0.45 £0.54
1000 + £0.38 £0.46

£1.01 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 16mm
Wall Thickness 1.0mm
Internal Length 20mm
Thread Size M6
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

16mm Round Straight Connector | M6 Thread | 1mm Wall | Nylon

Designed for custom tube assemblies and prototypes, this 16mm round tube connector provides an internal joining point for extending compatible round tubing. The 20mm internal length gives the connector secure engagement inside the tube while the M6 fixing helps expand the ribbed body against the internal wall.

What Are Round Straight Connectors?

Round Straight Connectors are internal tube joiners designed to connect two matching round tubes in a straight 180° line. The ribbed Nylon body fits inside the tube ends and expands during tightening to help create a secure joint without an external connector around the outside.

Common Applications

  • Furniture Frames: Joins matching round tube sections in chairs, tables and other tubular furniture assemblies.
  • Fabricated Frames: Creates a straight internal joint between compatible tube sections in light engineering structures.
  • Modular Assemblies: Allows tubular sections to be connected and separated as part of modular frame designs.
  • General Fabrication: Supports straight tube extensions where an internal connector is preferred over an external sleeve.

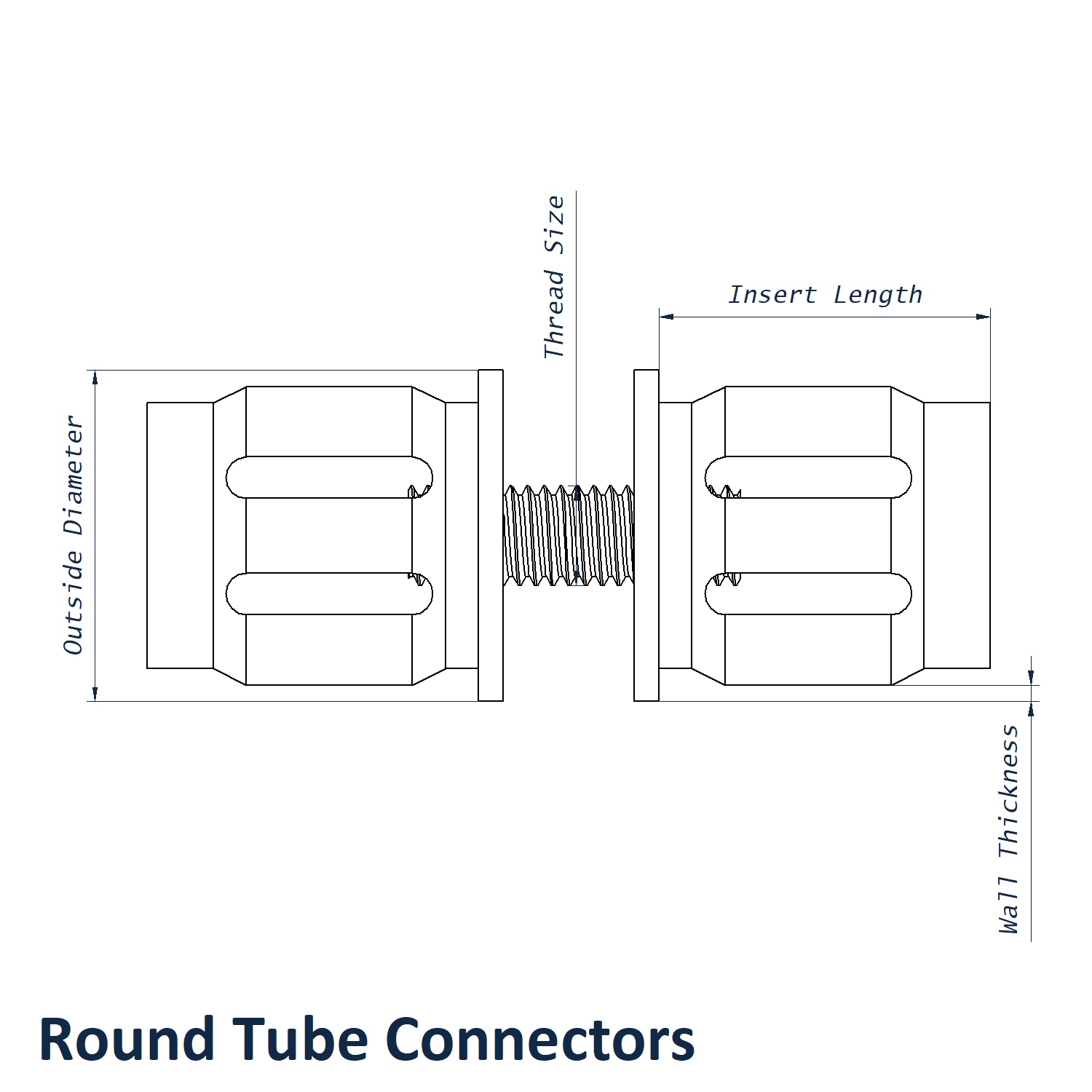

16mm Round Straight Connector Dimensions

  • Outside Diameter: 16mm
  • Wall Thickness: 1.0mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon

Key Benefits

  • 1mm wall-thickness specification helps identify compatible round tubing.
  • M6 thread size provides the specified expanding fixing for the connector.
  • Ribbed profile helps the connector grip the inside of correctly sized round tubing.
  • Straight 180° format is ideal for extending round tube assemblies.

Compare more sizes in our Round Tube Connector range for different tube diameters and wall thicknesses. For more complete tube assemblies, pair these with our Saddle Tube Connectors to combine straight tube extensions with cross-frame connections. If you are unsure which size fits, contact our team on 01233 713581.
