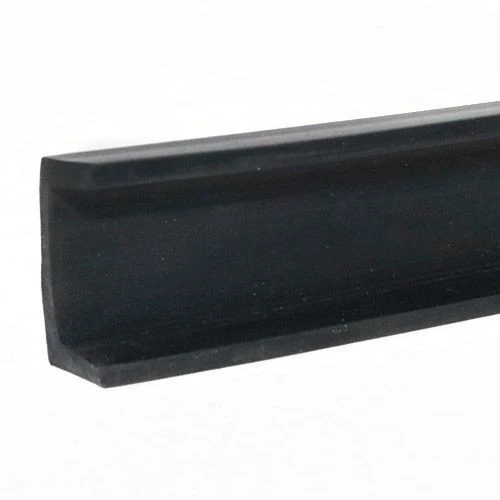

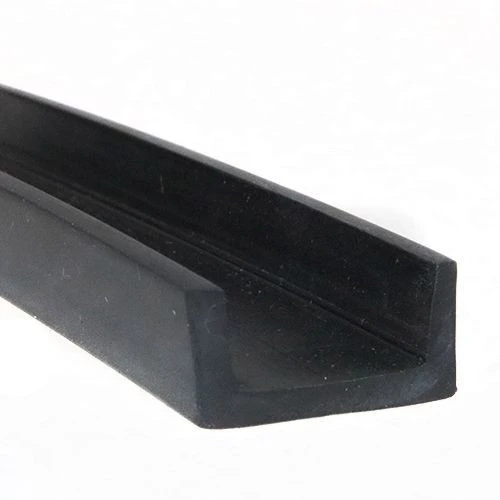

9mm x 25mm Square Channel Rubber Edge Trim (For 19mm Panel) 5m EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £17.71 | £21.25 |
| 2 - 5 | £17.00 | £20.40 |
| 6 - 10 | £16.27 | £19.52 |
| 11 + | £15.65 | £18.78 |
Product Specification
| To Fit Panel Thickness | 19mm |
| Roll Length | 5m |
| Overall Depth | 12mm |
| Width | 25mm |
| Panel Depth | 9mm |
| Profile | Square |
| Colour | Black |
| Material | EPDM |
Frequently Bought Together
Total Price: £0.00
9mm x 25mm Square Channel Rubber Edge Trim (For 19mm Panel) 5m EPDM

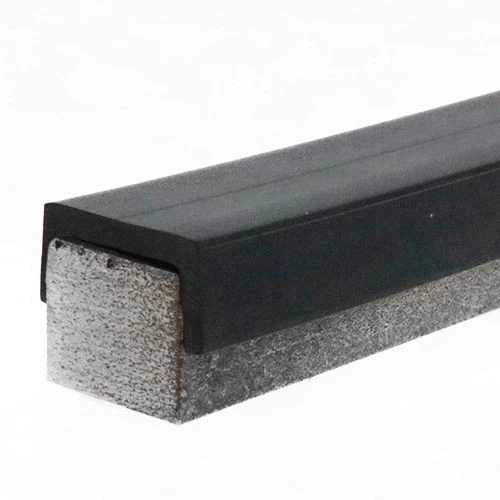

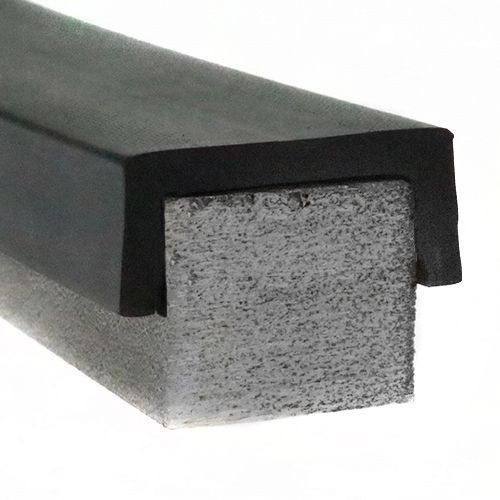

Supplied for 19mm panels with a 9mm panel depth, 12mm overall depth, 25mm width and 5m roll length, this black EPDM square channel rubber edge trim provides edge capping for thick boards, capping applications and robust edge finishing work. The profile uses a straight sided channel for flat edged panels that need a firm protective cap and a tidy finish while the balanced depth coverage without adding excessive bulk pairs with a wide face for large edge capping and stronger visual coverage.
For the 9mm x 25mm profile in a 5m roll, the 19mm panel fit and 12mm overall depth make this trim suitable for short runs, prototype builds and site fitting jobs. It helps reduce exposed sharpness on unfinished sheet edges and EPDM is selected for weathering, ozone and moisture resistance, helping protect exposed edges from handling damage, vibration marks and unfinished surfaces.
To learn more about Edge Protection, see our Guide to Rubber Edge Trim.
Common Applications
- Thicker panels, boards and heavy duty capping work
- Vehicle, trailer and industrial bodywork edges
- Straight panel edges needing a square channel finish
- Repairs, sample testing and short installation runs

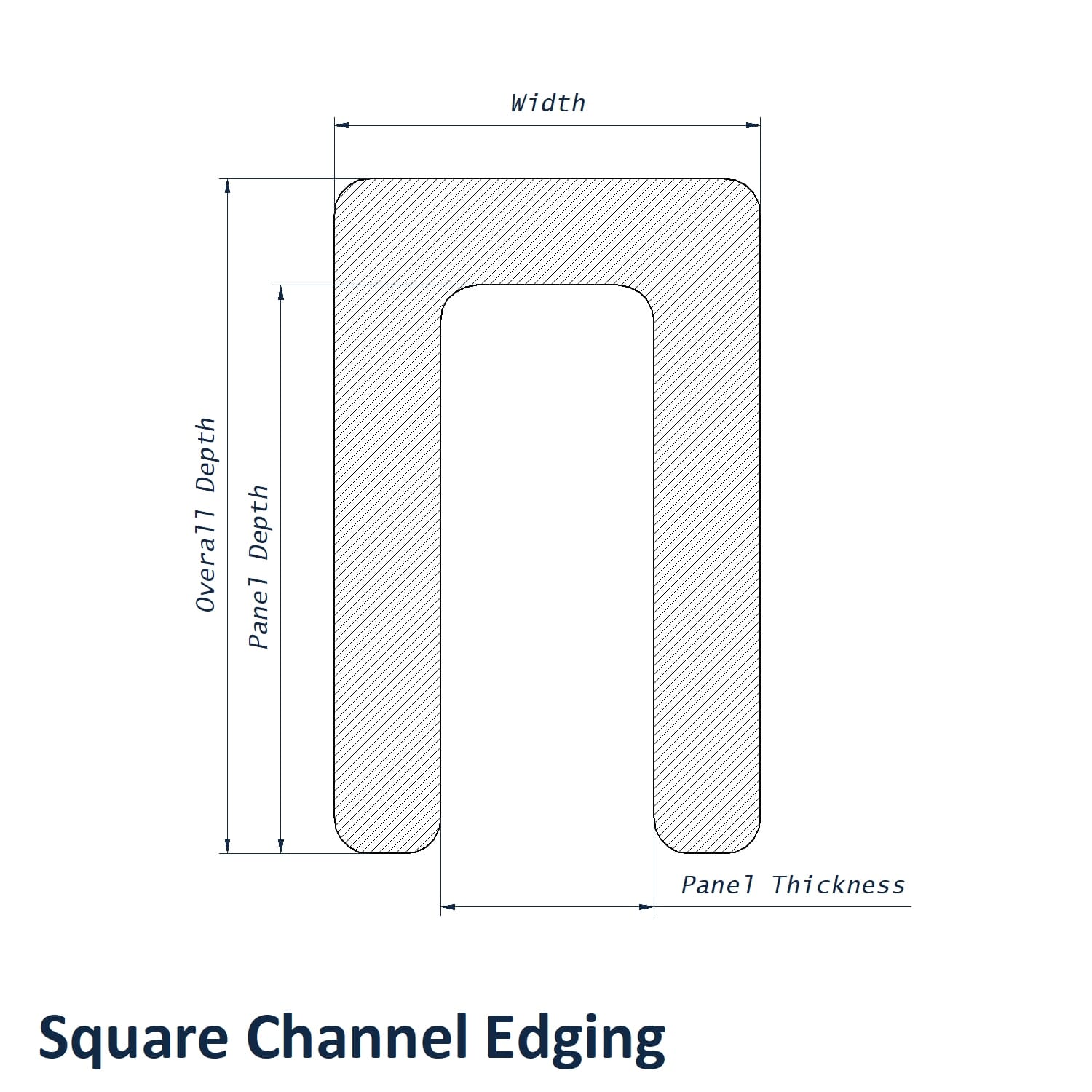

19mm Square Channel Rubber Edge Trim Dimensions
- To Fit Panel Thickness: 19mm
- Roll Length: 5m
- Overall Depth: 12mm
- Width: 25mm
- Panel Depth: 9mm
- Profile: Square
- Material: EPDM
- Colour: Black
