25mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.83 | £1.00 |
| 100 - 249 | £0.69 | £0.83 |
| 250 - 499 | £0.57 | £0.69 |
| 500 - 999 | £0.48 | £0.58 |
| 1000 + | £0.40 | £0.48 |
£1.00 / each
Product Specification
| Outside Diameter | 25mm |
| Wall Thickness | 2.0mm |
| Internal Length | 20mm |
| Thread Size | M6 |
| Style | Expanding |
| Material | Nylon |
Frequently Bought Together
- Thread Size M10
- Material Spring Steel
- Colour Chrome
- Outside Diameter 25mm
- Wall Thickness 1.5mm
- Material Nylon
- Colour Black
- Outside Diameter 25mm
- Wall Thickness 2.0mm
- Internal Length 54mm
- Thread Size M6
- Material Nylon
- Outside Diameter 25mm
- Wall Thickness 2.0mm
- Internal Length 26mm
Total Price: £0.00

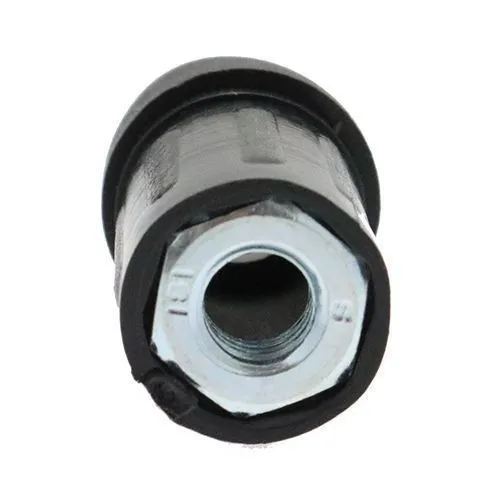

25mm Saddle Tube Connector – 2mm Wall | M6 Thread, Nylon (Expanding)
For round tube frames built from 25mm outside diameter sections, this saddle connector provides a threaded attachment using its M6 connection. It is specified for 2mm tube walls and has a 20mm internal length, helping match the connector to the tubing before assembly.
What Are Saddle Tube Connectors?
These round tube connectors incorporate a threaded fixing point to support assembly of tubular T-joints. They are selected by tube diameter and wall thickness rather than thread size alone. See our round and square tube connectors for other types of tubular junction.
Common Applications
- Protective Frameworks: Connecting round tubing in non-load-rated equipment guards and enclosure structures.
- Retail Displays: Building removable junctions for round-tube exhibition stands and shop display frameworks.
- Workshop Fabrication: Adding a threaded connection point when assembling round metal tube structures without a welded joint.
- Display Stands: Fitting transverse round tubes to frames used for presentation stands and temporary installations.
25mm M6 Saddle Tube Connector Dimensions
- Outside Diameter: 25mm
- Wall Thickness: 2mm
- Internal Length: 20mm
- Thread Size: M6
- Material: Nylon
- Style: Expanding
Key Benefits
- The connector supports T-joint assembly where the matching tube dimensions are known.
- A 2mm wall-thickness specification helps avoid mismatches between the insert and tube.
- The 20mm internal length allows fitting depth to be checked during assembly.
- The specified expanding style helps identify the intended fitting arrangement.
Browse the available round tube saddle connectors for alternative outside diameters and wall sizes. If you need help selecting the correct connector, call us on 01233 713581.
| Code | Thread Size | Style | Material | Outside Diameter | Wall Thickness | Internal Length | Stock | |
|---|---|---|---|---|---|---|---|---|
| TC081 | M6 | Expanding | Nylon | 24mm | 1.5mm | 20mm |
Checking...
|
|
| TC083 | M6 | Expanding | Nylon | 25mm | 1.5mm | 20mm |
Checking...
|
|
| TC082 | M6 | Expanding | Nylon | 25mm | 1.0mm | 20mm |
Checking...
|
|
| TC086 | M6 | Expanding | Nylon | 26mm | 1.5mm | 20mm |
Checking...
|
|
| TC085 | M6 | Expanding | Nylon | 26mm | 1.0mm | 20mm |
Checking...
|
|
| TC087 | M6 | Expanding | Nylon | 26mm | 2.0mm | 20mm |
Checking...
|
|
