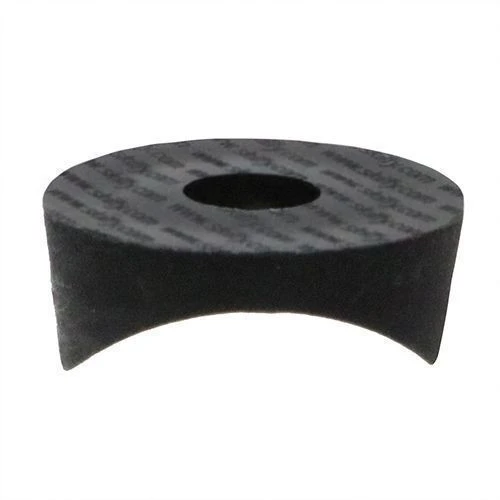

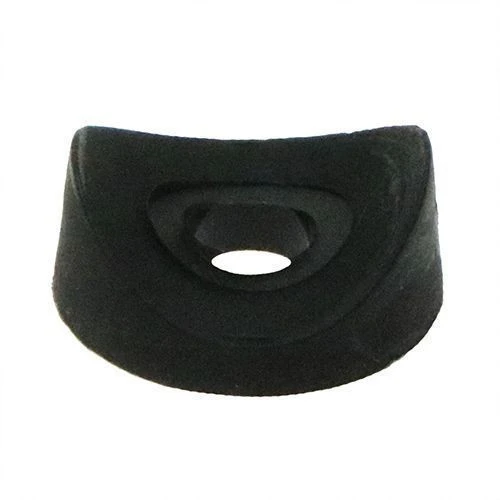

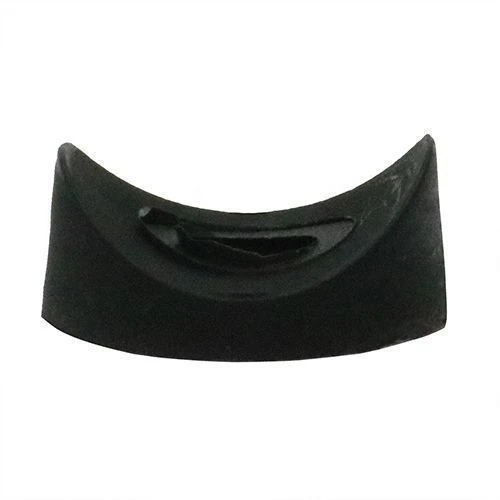

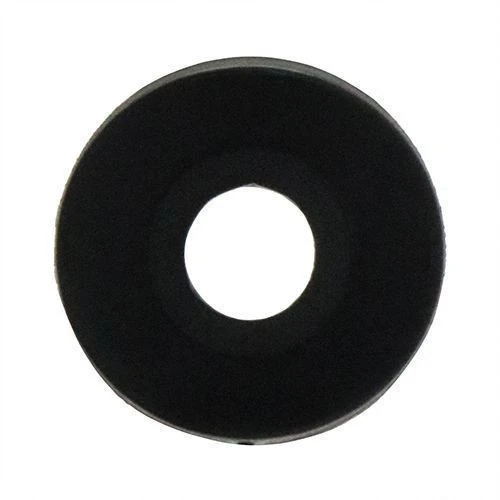

16mm Saddle Washer (5.0mm ID) For 15-17mm Tubes | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.23 | £0.28 |
| 1000 - 1999 | £0.19 | £0.23 |
| 2000 - 4999 | £0.16 | £0.19 |
| 5000 + | £0.13 | £0.16 |
Product Specification
| Tube Diameter | 15-17mm |
| Internal Diameter | 5.0mm |
| Outside Diameter | 16mm |
| Thickness | 6.8mm |
| Colour | Black |
| Material | Nylon |
| Tube Offset | 2.4mm |
Frequently Bought Together
Total Price: £0.00
15-17mm Saddle Washer (5.0mm ID) For 15-17mm Tubes | Black Nylon
Built for pipe mounting and saddle fixing applications, this medium tube saddle washer is produced for use with 15-17mm diameter tubes and features a 5.0mm internal diameter for compatible fixing points. The curved seating profile allows improved contact around cylindrical sections during fastening.
Manufactured from nylon in a black finish, this saddle washer is suited to fabrication, pipe mounting and tube support installations where a formed washer profile is required. The curved saddle profile helps improve load distribution across round surfaces while helping maintain stable positioning around curved surfaces.
Common Applications
- Cable routing and support work
- Industrial pipe fixing operations
- Automotive and workshop fabrication
- Machine and equipment assembly

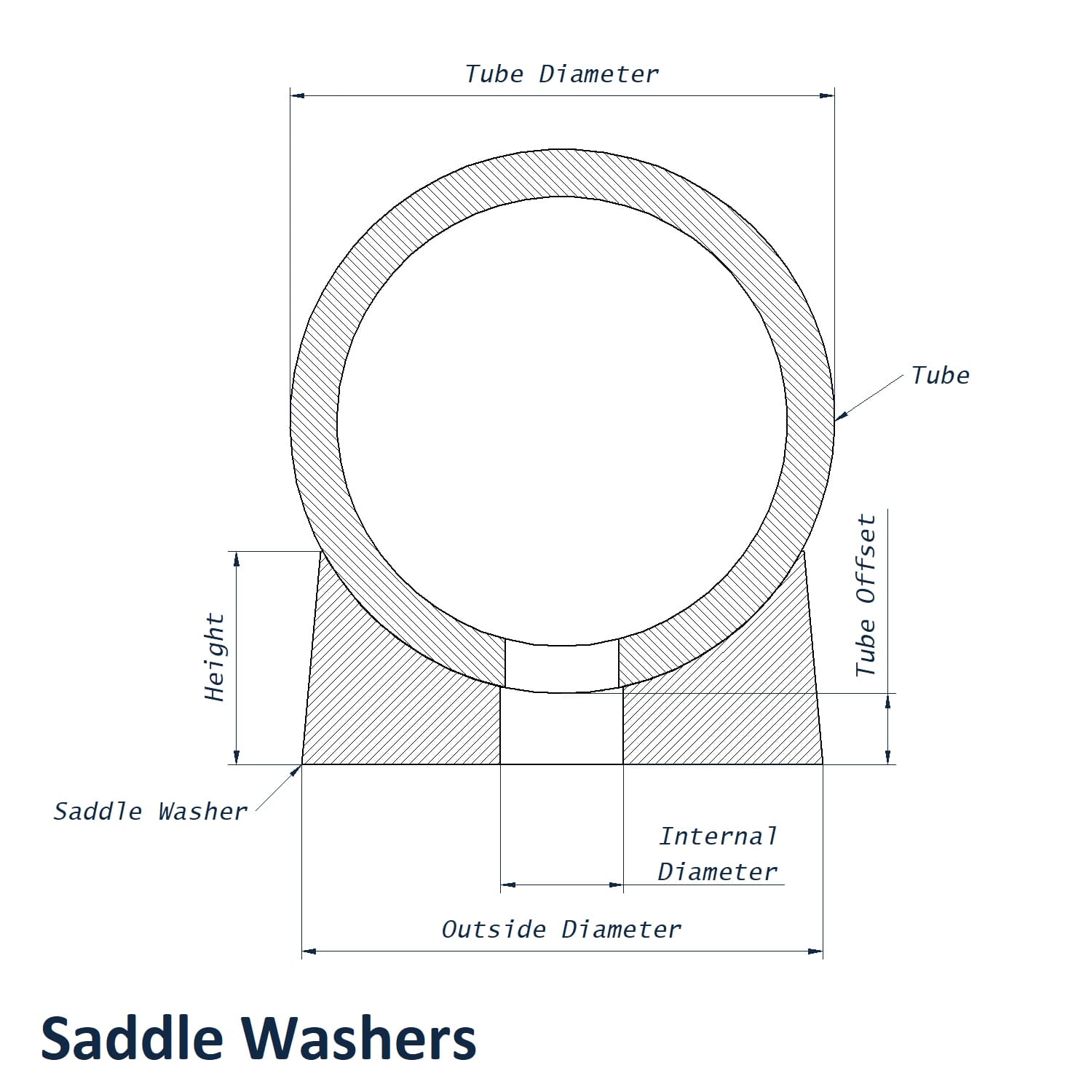

15-17mm Saddle Washer Dimensions
- Tube Diameter: 15-17mm
- Internal Diameter: 5.0mm
- Outside Diameter: 16mm
- Thickness: 6.8mm
- Tube Offset: 2.4mm
- Material: Nylon
- Colour: Black
View our full Saddle Washer range or browse our Washer collection.
