22mm Saddle Washer (6.2mm ID) For 21-23mm Tubes | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.40 | £0.48 |
| 1000 - 1999 | £0.37 | £0.44 |
| 2000 - 4999 | £0.33 | £0.40 |
| 5000 + | £0.31 | £0.37 |
Product Specification
| Tube Diameter | 21-23mm |
| Internal Diameter | 6.2mm |
| Outside Diameter | 22mm |
| Thickness | 9.0mm |
| Colour | Black |
| Material | Nylon |
| Tube Offset | 3.0mm |
Frequently Bought Together
Total Price: £0.00
21-23mm Saddle Washer (6.2mm ID) For 21-23mm Tubes | Black Nylon
Developed for securing cylindrical sections during assembly work, this medium tube saddle washer is produced for use with 21-23mm diameter tubes and features a 6.2mm internal diameter for compatible fixing points. The curved seating profile allows improved contact around cylindrical sections during fastening.
Manufactured from nylon in a black finish, this saddle washer is suited to fabrication, pipe mounting and tube support installations where a formed washer profile is required. The formed body supports improved stability when securing round sections while helping maintain stable positioning around curved surfaces.
Common Applications
- Structural tubing installations
- Maintenance and retrofit operations
- General industrial fastening
- OEM manufacturing applications

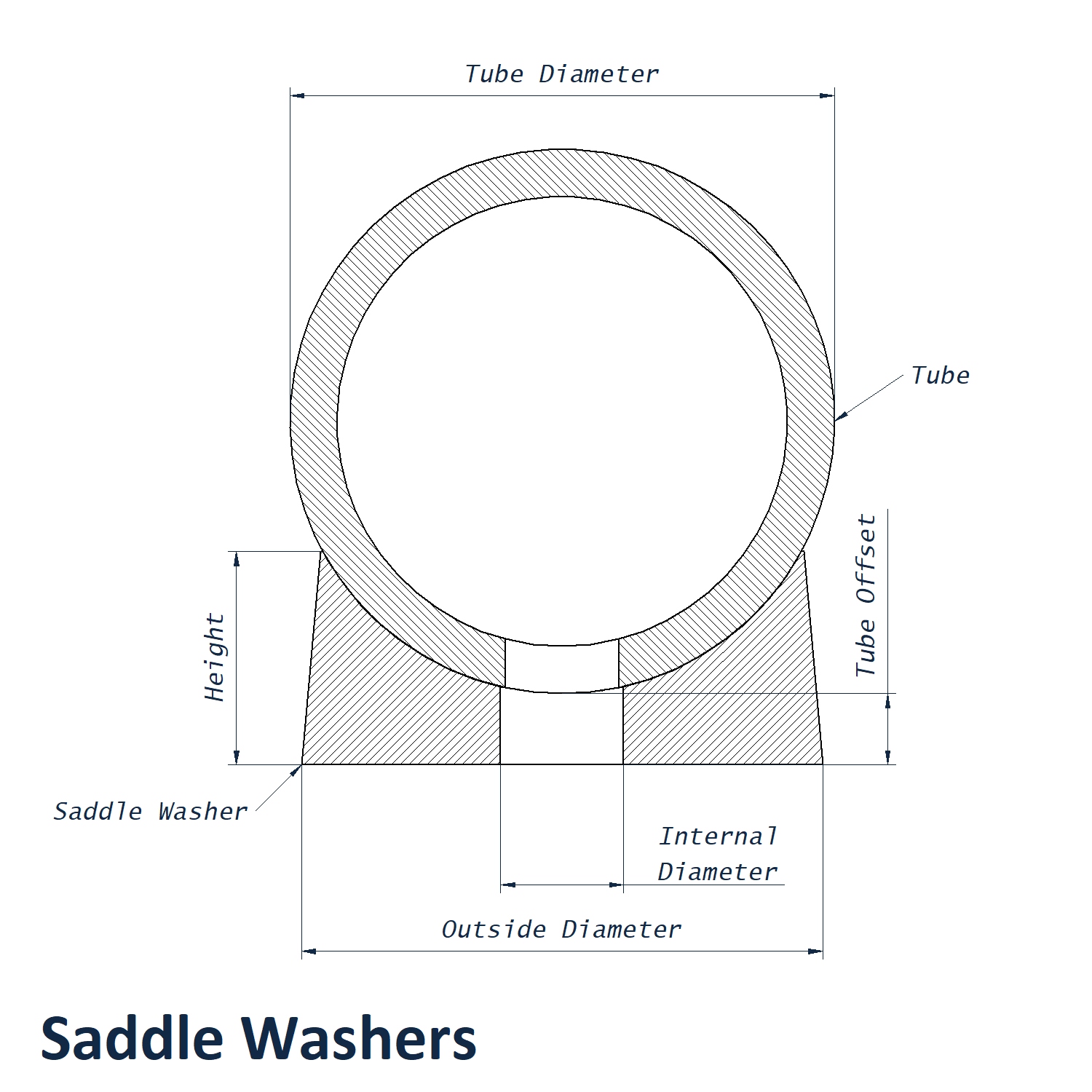

21-23mm Saddle Washer Dimensions
- Tube Diameter: 21-23mm
- Internal Diameter: 6.2mm
- Outside Diameter: 22mm
- Thickness: 9.0mm
- Tube Offset: 3.0mm
- Material: Nylon
- Colour: Black
View our full Saddle Washer range or browse our Washer collection.
Need help or buying in bulk?
For technical support, sizing guidance or volume pricing enquiries call 01233 713581.
