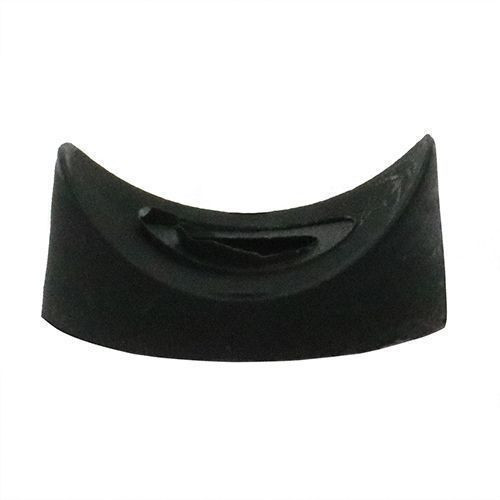

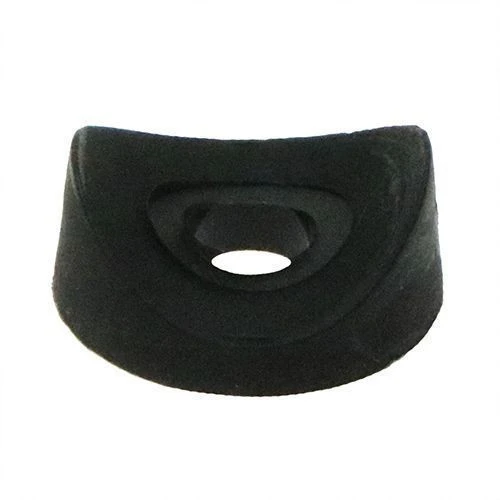

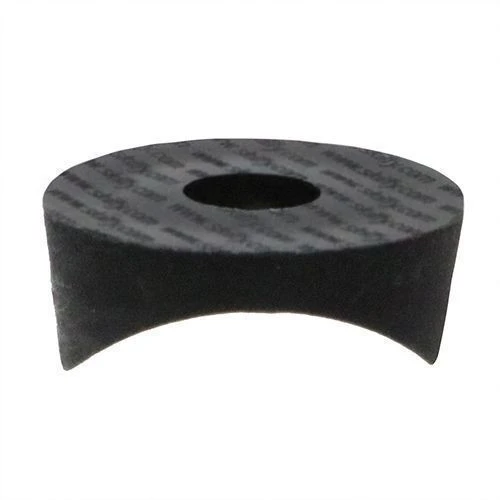

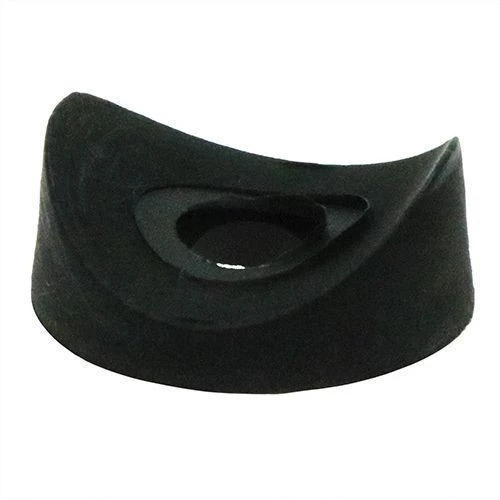

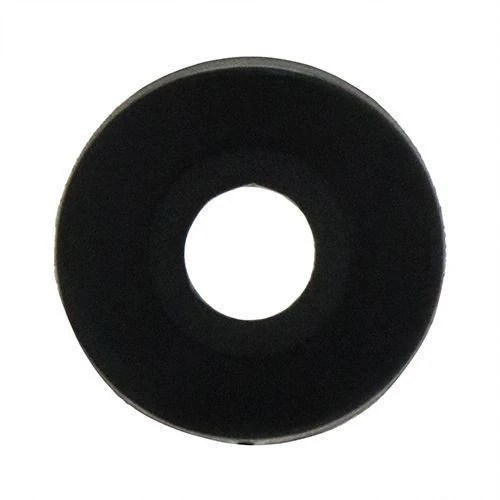

40mm Saddle Washer (16.5mm ID) For 50-60mm Tubes | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.35 | £2.82 |
| 100 - 499 | £2.12 | £2.54 |
| 500 - 999 | £1.99 | £2.39 |
| 1000 - 4999 | £1.78 | £2.14 |
| 5000 - 9999 | £1.69 | £2.03 |
| 10000 + | £1.59 | £1.91 |
Product Specification
| Tube Diameter | 50-60mm |
| Internal Diameter | 16.5mm |
| Outside Diameter | 40mm |
| Thickness | 12.0mm |
| Colour | Black |
| Material | Nylon |
| Tube Offset | 5.0mm |
Frequently Bought Together
Total Price: £0.00
50-60mm Saddle Washer (16.5mm ID) For 50-60mm Tubes | Black Nylon
Manufactured for curved surface fastening applications, this large tube saddle washer is produced for use with 50-60mm diameter tubes and features a 16.5mm internal diameter for compatible fixing points. The curved seating profile allows improved contact around cylindrical sections during fastening.
Manufactured from nylon in a black finish, this saddle washer is suited to fabrication, pipe mounting and tube support installations where a formed washer profile is required. The shaped body allows improved contact around pipes, conduit and tubing while helping maintain stable positioning around curved surfaces.
Common Applications
- Commercial fabrication projects
- Tube bracket mounting systems
- Workshop repair applications
- Round section support assemblies

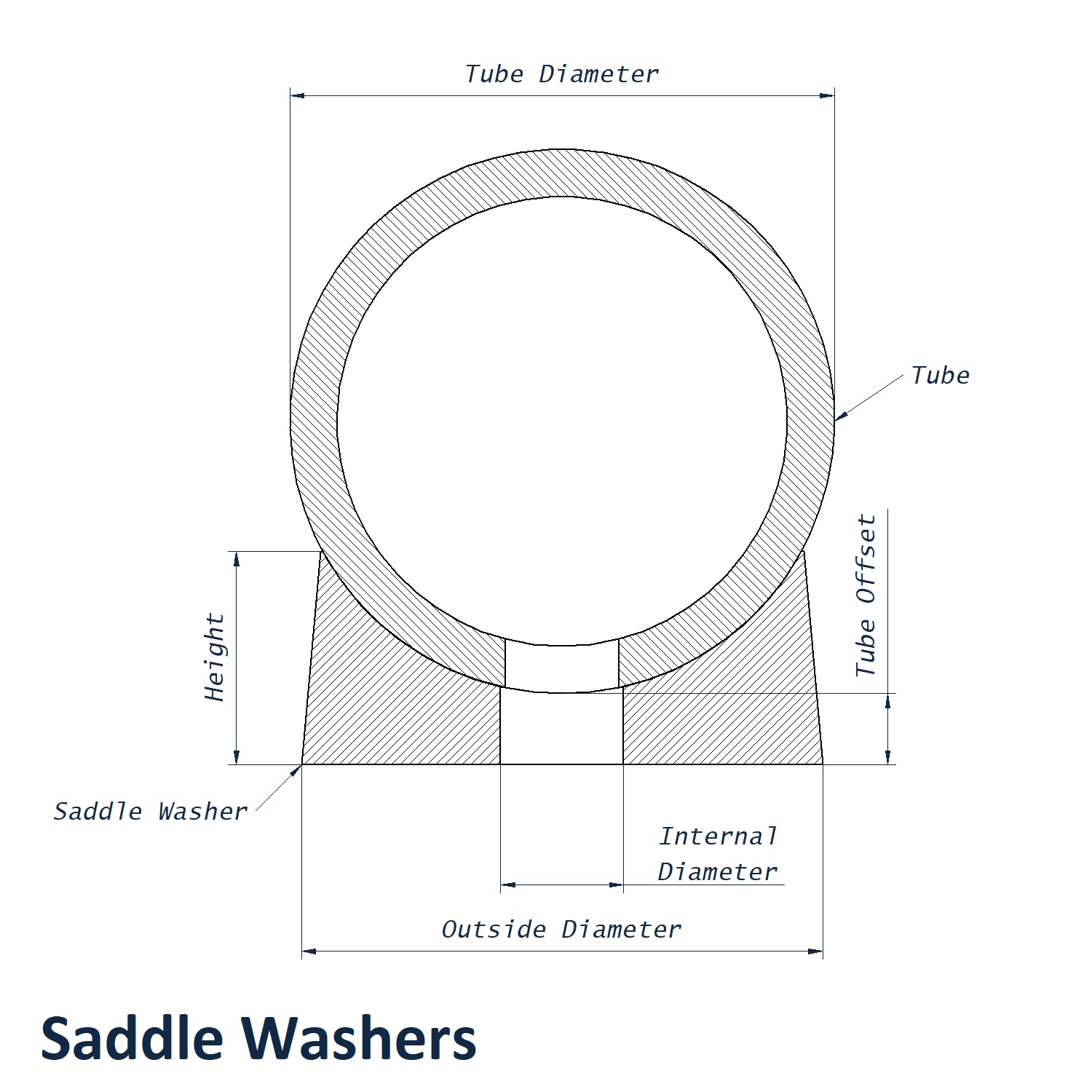

50-60mm Saddle Washer Dimensions
- Tube Diameter: 50-60mm
- Internal Diameter: 16.5mm
- Outside Diameter: 40mm
- Thickness: 12.0mm
- Tube Offset: 5.0mm
- Material: Nylon
- Colour: Black
View our full Saddle Washer range or browse our Washer collection.
