| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 24 | £0.96 | £1.15 |
| 25 - 49 | £0.92 | £1.10 |
| 50 - 99 | £0.86 | £1.03 |
| 100 + | £0.76 | £0.91 |
Product Stock

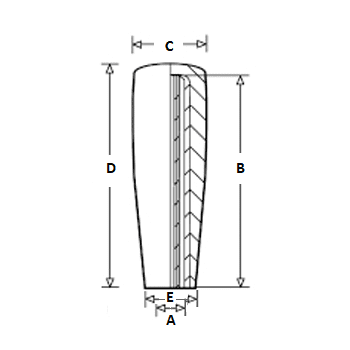

| Product Specifications | HAND101 |
|---|---|
| To Fit Shaft Diameter | 10mm |
| Internal Length | 46mm |
| Max Handle Diameter | 21mm |
| Min Handle Diameter | 17mm |
| Total Length | 50mm |
| Colour | Black |
| Material | Thermoplastic |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
- Thread Size M8
- Material A2 Stainless Steel
- Head Diameter 14.00mm
- Length 120mm
- Drive H5
- Standard ISO 7380-1
- Pitch 1.25mm
- Head Height 4.40mm
- Head Style Button Head
- Thread Size M8
- Material A2-70 Stainless Steel
- Height 6.00mm
- Thread Pitch 1.25mm
- Across Flats 13.0mm
- Standard DIN 934
- Material A2 Stainless Steel
- Thickness 1.6mm
- Internal Diameter 8.4mm
- Outside Diameter 16.0mm
- Standard DIN 125A
- Size M8
Total Price: £0.00
Product Description

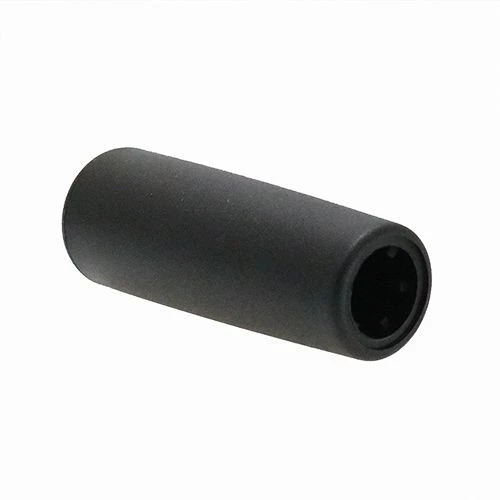

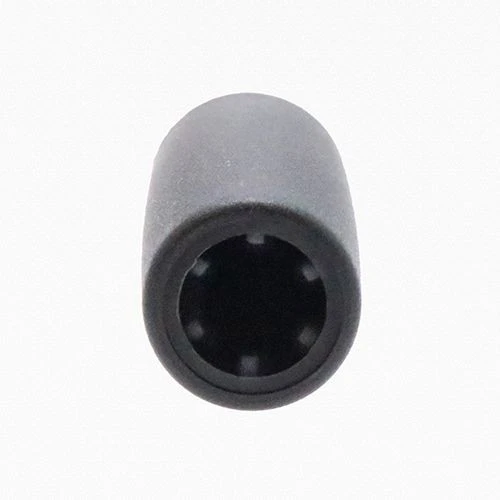

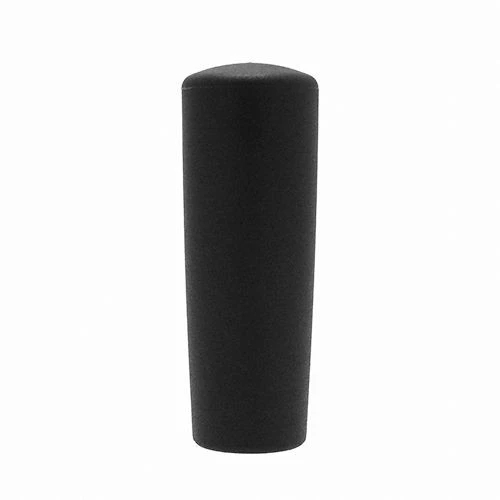

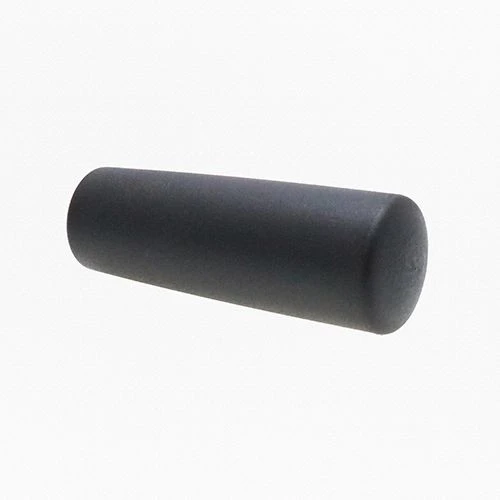

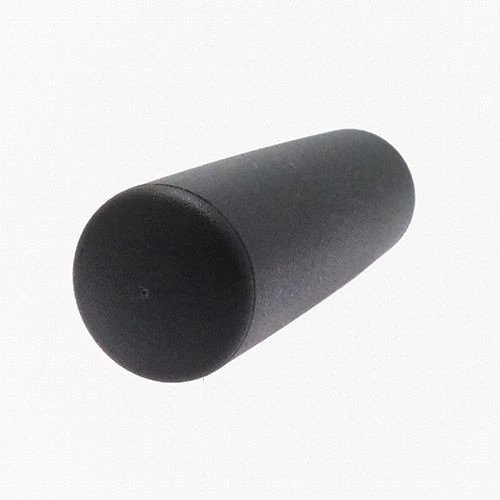

Self Fixing Tapered Handles are made of high-quality thermoplastic material in a matte black finish, suitable for knocking on to a plain round metal shaft to create a strong, durable and ergonomic handle. These handles are commonly used as clamp handles, tools handles and on machinery.
This tapered plastic handle has an Internal Length of 46mm and a Total Length of 50mm. It has a Minimum Handle Diameter of 17mm and a Maximum Handle Diameter of 21mm. It is sized to fit a Shaft Diameter of 10mm. It is available in a black coloured Thermoplastic.
The multi-purpose handles are available in various sizes to suit round metal bars ranging from 8mm to 16mm, and in different lengths. Custom lengths and sizes can also be offered upon request. The standard 'round' style of the handle is ideal for general use, making it suitable choice for all kinds of applications utilising round bars.
Related Products
| Code | Material | Colour | Total Length | Internal Length | To Fit Shaft Diameter | Max Handle Diameter | Min Handle Diameter | Stock | |
|---|---|---|---|---|---|---|---|---|---|
| HAND100 | Thermoplastic | Black | 40mm | 37mm | 8mm | 18mm | 15mm |
Checking...
|
|
| HAND102 | Thermoplastic | Black | 65mm | 61mm | 10mm | 23mm | 19mm |
Checking...
|
|
| HAND103 | Thermoplastic | Black | 80mm | 75mm | 12mm | 26mm | 21mm |
Checking...
|
|
| HAND104 | Thermoplastic | Black | 90mm | 85mm | 16mm | 28mm | 22mm |
Checking...
|
|
