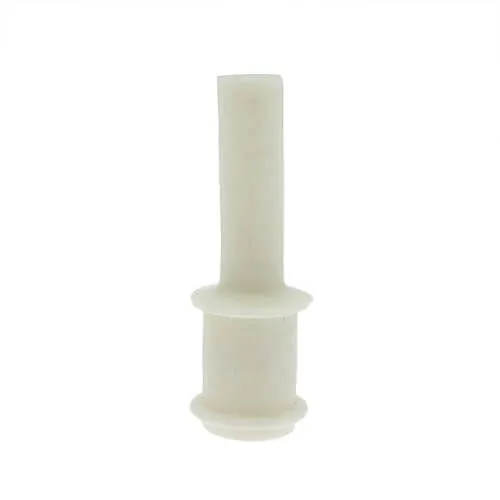

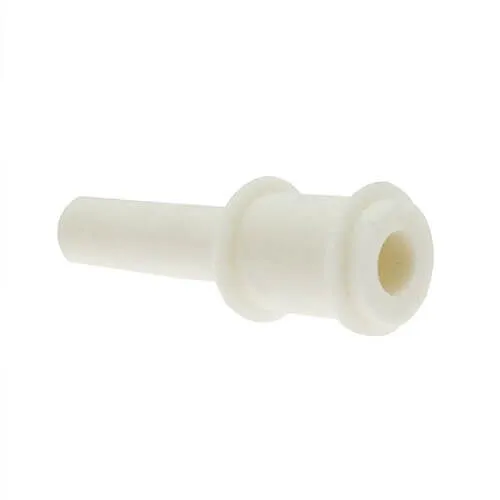

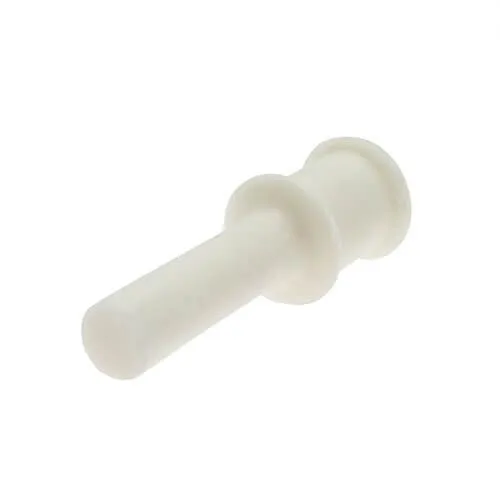

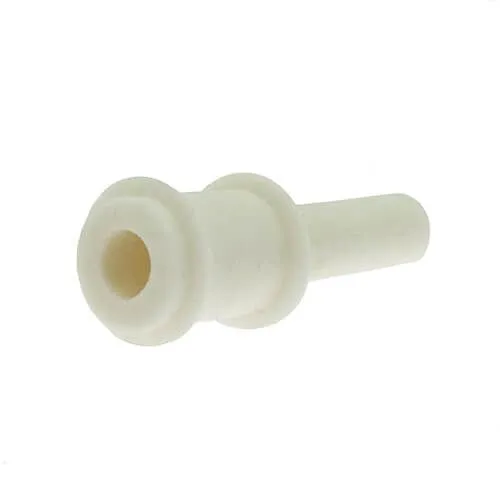

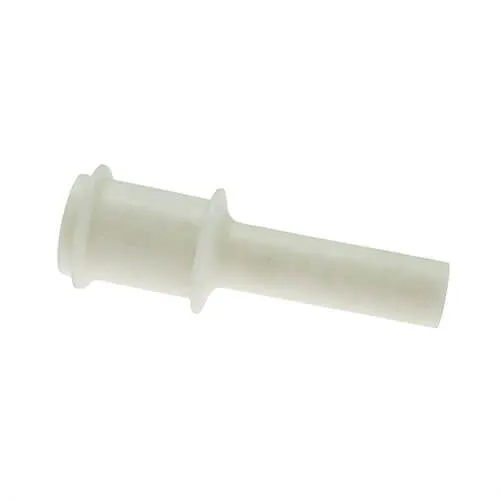

M14 Double Flange Plug (14mm Length) | White Silicone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 249 | £0.40 | £0.48 |
| 250 - 499 | £0.38 | £0.46 |
| 500 - 999 | £0.36 | £0.43 |
| 1000 + | £0.33 | £0.40 |
£0.53 / each
.png)
Product Specification
| Thread Size | M14 |
| Outside Diameter | 13.5mm |
| Flange Diameter | 17.0mm |
| Plug Length | 14.0mm |
| Total Length | 50.0mm |
| Colour | White |
Frequently Bought Together
Total Price: £0.00
M14 Double Flange Plug (14.0mm Length) | White Silicone
Providing high-temperature masking for M14 holes, this white silicone double flange plug is sized for larger threaded and countersunk openings. Its 13.5mm body and 17.0mm flanges create a broad protective area around the hole while the 50.0mm total length supports straightforward handling on busy coating lines.
What Are Silicone Double Flange Plugs?
The opposing flange design masks the component faces as well as the bore, helping preserve clean seating areas for later fastener installation. Silicone can flex during fitting without permanently distorting and offers the thermal resistance required for curing temperatures up to 315°C. The plug may be reused across multiple cycles when inspected and maintained correctly.
Common Applications
- Heavy Fabricated Brackets: Protects M14 fixing holes during powder coating and paint curing.
- Construction Equipment Components: Keeps mounting threads clear on larger coated parts.
- Commercial Vehicle Manufacture: Masks countersunk and threaded features before finishing.
- Batch Coating Operations: Uses the white colour to separate this larger size from smaller plugs.

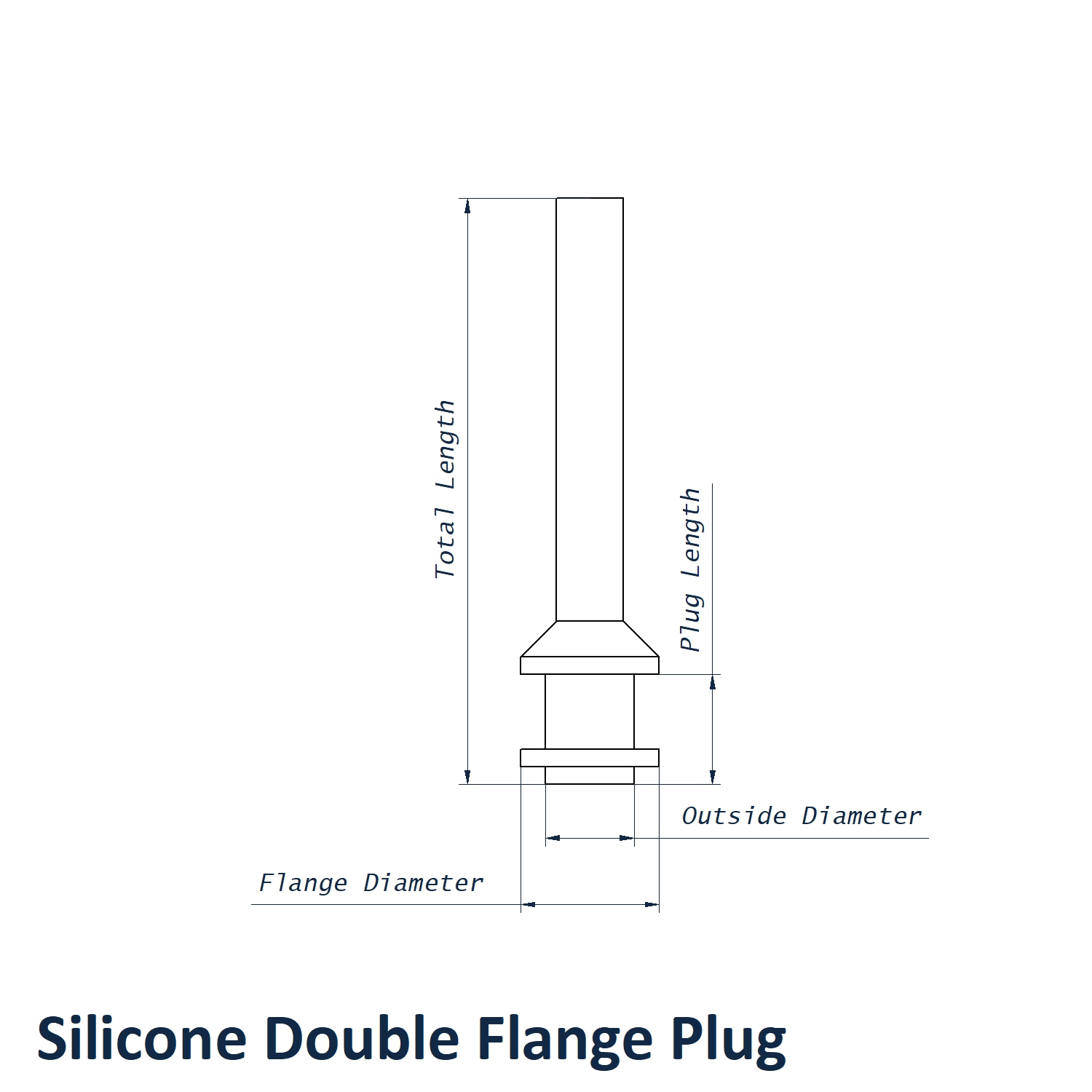

M14 White Silicone Double Flange Plug Dimensions
- Material: Silicone
- Outside Diameter: 13.5mm
- Flange Diameter: 17.0mm
- Plug Length: 14.0mm
- Total Length: 50.0mm
- Thread Size: M14
- Colour: White
Key Benefits
- Larger 17.0mm flanges offer substantial edge coverage
- White colour creates clear size differentiation
- 14.0mm plug length provides a defined mask through the opening
- Reusable silicone reduces the need for single-use masking materials
See other metric sizes in the Vital Parts Silicone Double Flange Plug collection. For support checking whether this M14 plug matches your hole profile or finishing temperature, call 01233 713 581.
