4.5mm Flange Plug (42mm Length) | Yellow Silicone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.15 |
| 100 - 249 | £0.12 | £0.14 |
| 250 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 + | £0.09 | £0.11 |
£0.15 / each
.png)
Product Specification
| Internal Diameter | 4.5mm |
| Outside Diameter | 7.4mm |
| Flange Diameter | 12.0mm |
| Length | 42.0mm |
| Base To Flange Distance | 14.0mm |
| Colour | Yellow |
Frequently Bought Together
Total Price: £0.00
7.4mm Flange Plug (42.0mm Length) | Yellow Silicone
Designed for precision masking of compact countersunk holes, this 7.4mm yellow silicone flange plug combines a 4.5mm internal diameter with a 42.0mm overall length. The 12.0mm flange rests against the component surface to control the fitting position while the flexible body protects the opening from powder, paint and treatment residue during finishing.
What Are Silicone Flange Plugs?
Silicone flange plugs are high-temperature masking components with a shaped flange that prevents the plug passing completely through the hole. The body occupies the opening while the flange covers the surrounding edge, helping preserve a clean countersunk profile. The extended section remains accessible for removal after coating or curing.
Common Applications
- Powder-Coated Brackets: Masks compact countersunk holes while surrounding metal receives a durable finish.
- Precision Engineering: Protects small machined openings during paint, plating and anodising processes.
- Electrical Enclosures: Keeps fixing holes clear on panels and compact fabricated housings.
- Batch Finishing Lines: Uses the yellow colour to support quick identification during repetitive masking work.

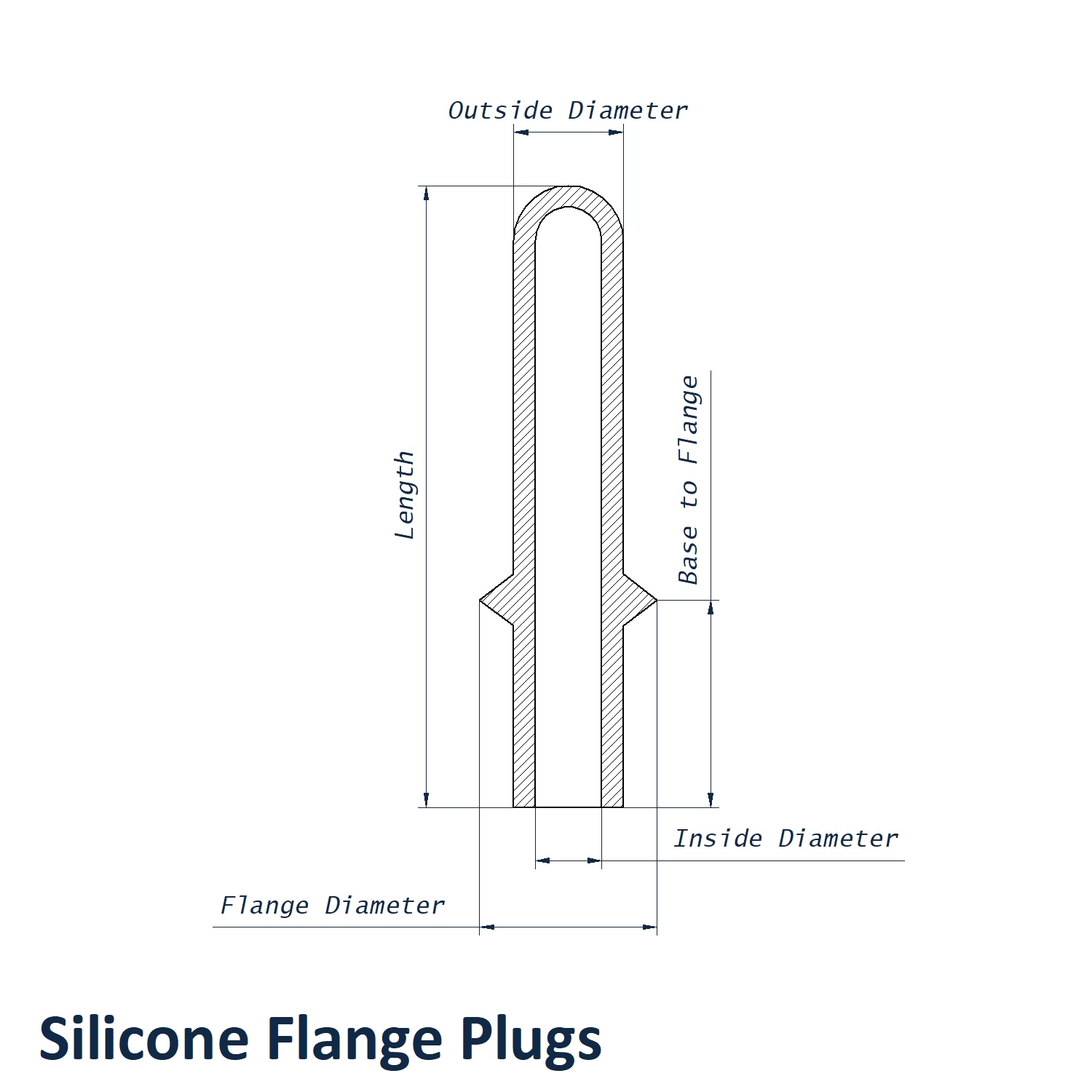

7.4mm x 42.0mm Yellow Silicone Flange Plug Dimensions
- Material: Silicone
- Outside Diameter: 7.4mm
- Flange Diameter: 12.0mm
- Internal Diameter: 4.5mm
- Length: 42.0mm
- Base To Flange Distance: 14.0mm
- Colour: Yellow
Key Benefits
- 12.0mm flange helps prevent the plug being pushed through the opening
- 42.0mm total length provides an accessible section for removal
- Yellow colour supports visual size control on busy production lines
- High-temperature silicone is suitable for finishing processes up to 315°C
Compare this compact masking size with the complete Silicone Flange Plugs range. For help checking the correct plug against a countersunk hole or coating process, contact the Vital Parts technical sales team on 01233 713 581.
