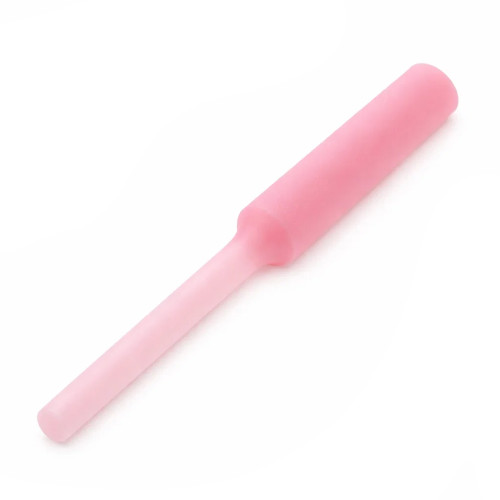

3.2-5.7mm Pink Pull Tab Plug (25.4mm x 25.4mm) | Silicone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.60 | £0.72 |
| 2 - 10 | £0.60 | £0.72 |
| 11 - 50 | £0.48 | £0.58 |
| 51 - 100 | £0.38 | £0.46 |
| 101 - 500 | £0.32 | £0.38 |
| 501 + | £0.25 | £0.30 |

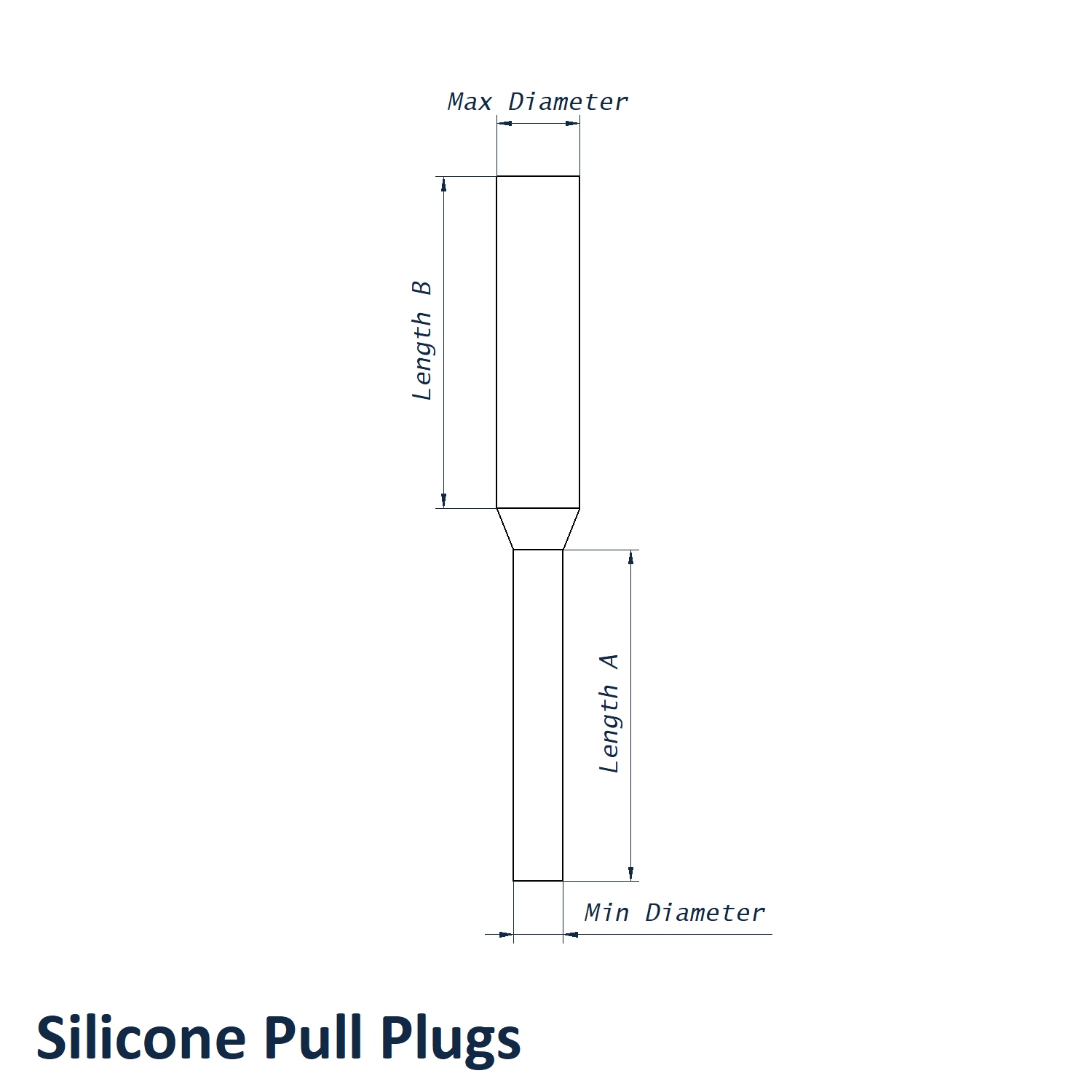

Product Specification
| Min Diameter | 3.2mm |
| Max Diameter | 5.7mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Pink |
Frequently Bought Together
Total Price: £0.00

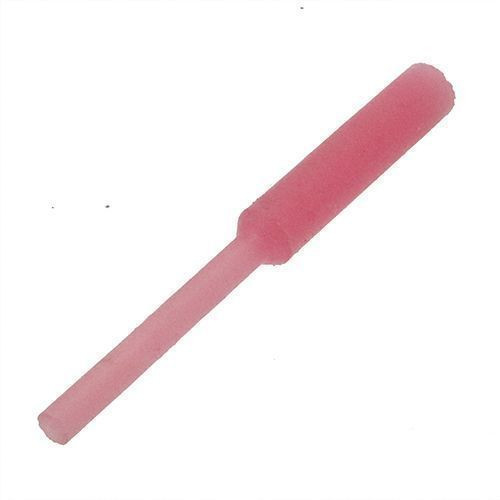

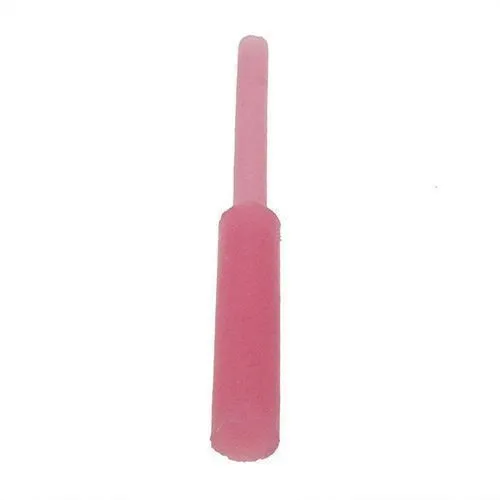

3.2mm to 5.7mm x 25.4mm Silicone Pull Plug | Pink Silicone | Vital Parts - SPP024
The 3.2mm to 5.7mm x 25.4mm silicone parallel plug combines high-temperature performance with a simple pull-through installation method. It protects the internal surface of a hole while leaving surrounding faces accessible for coating or treatment.
What Are Silicone Pull Plugs?
These silicone parallel plugs are drawn into a through-hole using the moulded pull section. Once fitted, the central body protects the bore from powder, plating solution, paint or abrasive media while the exposed tab remains available for removal.
Common Applications
- High Temperature Curing: Withstands continuous temperatures up to 315°C during industrial oven cycles.
- Automotive Components: Masks mounting holes and pass-through openings before painting or coating.
- Aerospace Components: Provides controlled bore protection during specialised finishing work.
- Fabrication Workshops: Speeds up masking and demasking of repeated component batches.
Technical Specifications:
- Max Diameter: 5.7mm
- Min Diameter: 3.2mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Pink
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
Compare this product with our Silicone Step Plugs for applications needing a stepped masking profile. Alternative pull-tab diameters are listed within the full Silicone Pull Plugs range.
For assistance selecting the correct silicone pull tab plug or arranging a larger production quantity, call our team on 01233 713581.
