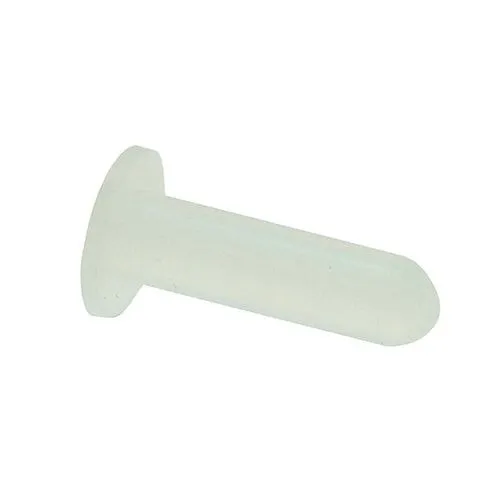

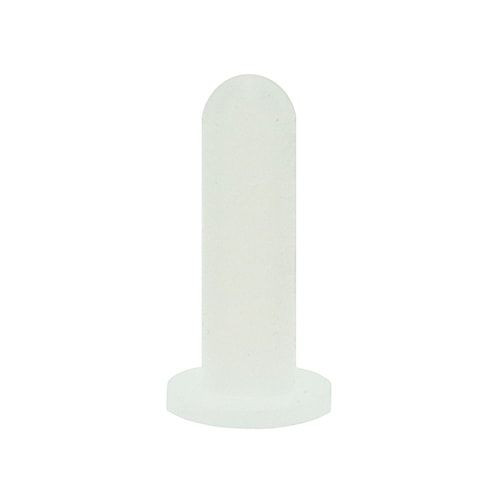

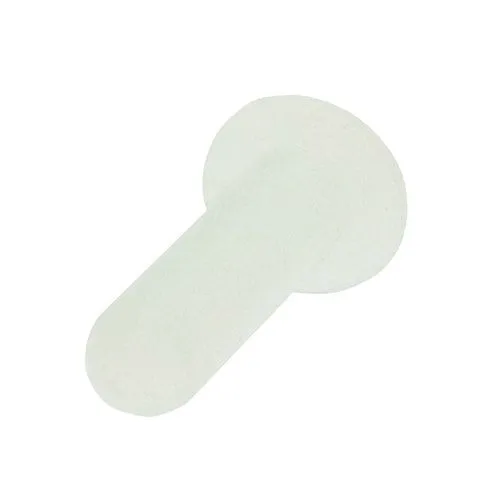

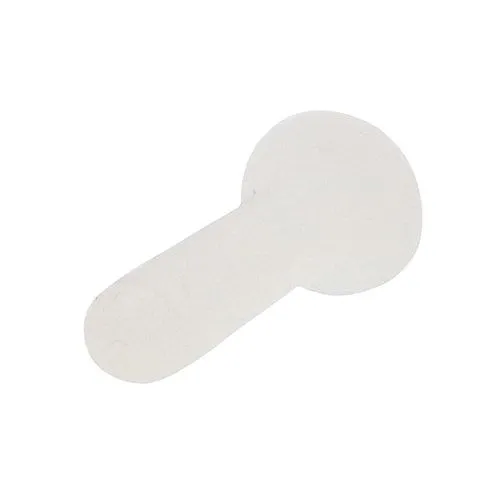

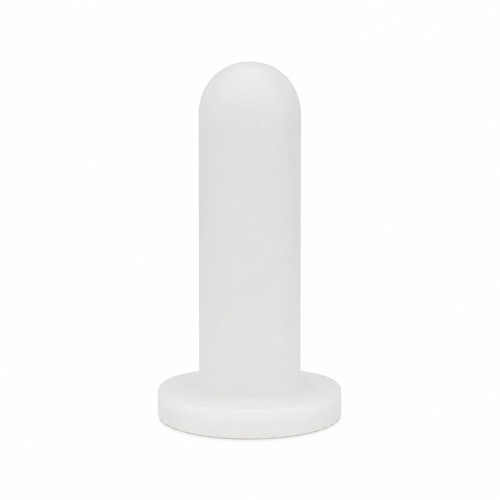

1/8" Silicone Washer Cap (Clear) 25.4mm Length | 12.7mm Flange
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.26 | £0.31 |
| 100 - 249 | £0.21 | £0.25 |
| 250 - 499 | £0.17 | £0.20 |
| 500 - 999 | £0.14 | £0.17 |
| 1000 + | £0.11 | £0.13 |
Product Specification
| Flange Diameter | 12.7mm |
| Internal Diameter | 3.2mm |
| Outside Diameter | 6.6mm |
| Length | 25.4mm |
| Thread | 1/8" |
| Colour | Clear |
Frequently Bought Together
Total Price: £0.00
1/8" Silicone Washer Cap (Clear) 25.4mm Length | 12.7mm Flange | Silicone
Manufactured for sheet metal fabrication, this 1/8" washer masking cap uses a flexible silicone body and 12.7mm flange to cover raised threaded points while leaving a controlled circular mask around the fixing.
Its flexible body helps grip the component without metal tooling, while the flange gives a wider bearing surface for masking around the fixing rather than only covering the thread.
What Are Silicone Washer Caps?
A washer cap differs from a standard silicone end cap because it protects two areas at once: the thread or pin itself and the flat contact area around it. This makes it useful for colour-coded masking work where the exposed base area needs a tidy, repeatable finish.
Common Applications
- Covering 1/8 inch pins during e-coating
- Masking threaded holes and nearby contact faces
- Protecting small fittings during plating preparation
- Batch finishing work for fabricated components

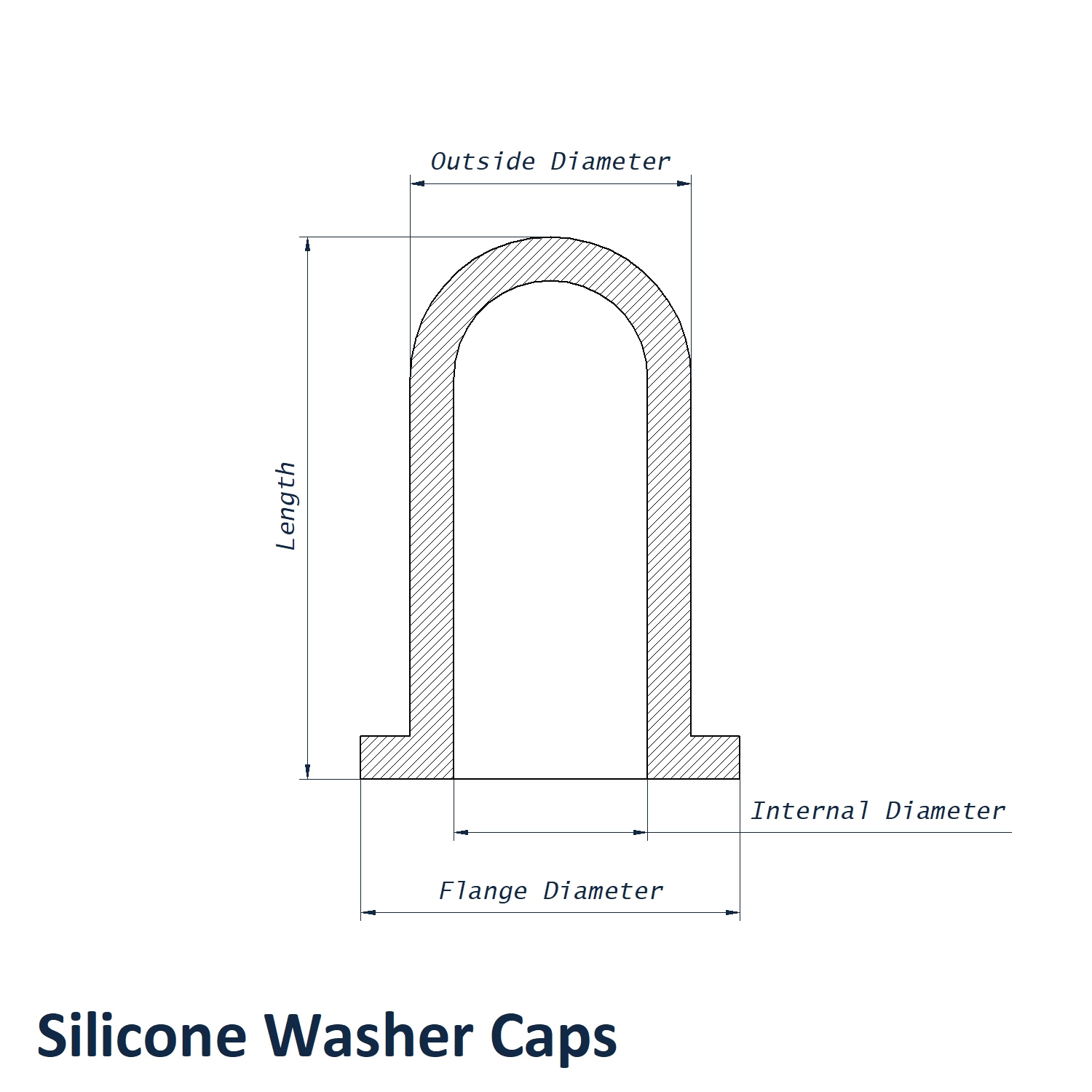

1/8" Clear Silicone Washer Cap Dimensions
- Flange Diameter: 12.7mm
- Internal Diameter: 3.2mm
- Outside Diameter: 6.6mm
- Length: 25.4mm
- Thread: 1/8"
- Colour: Clear
- Material: Silicone
View our full Silicone Washer Caps range.
Specification Support and Bulk Orders
Need to match these caps to a coating line, fixture or repeat batch job? Contact Vital Parts on 01233 713581 for support with sizing, colour selection and larger quantity requirements.
