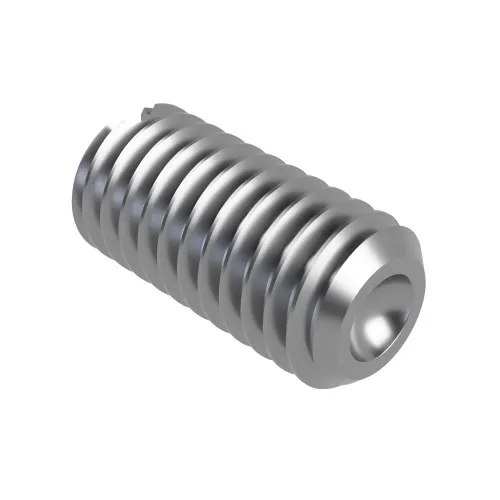

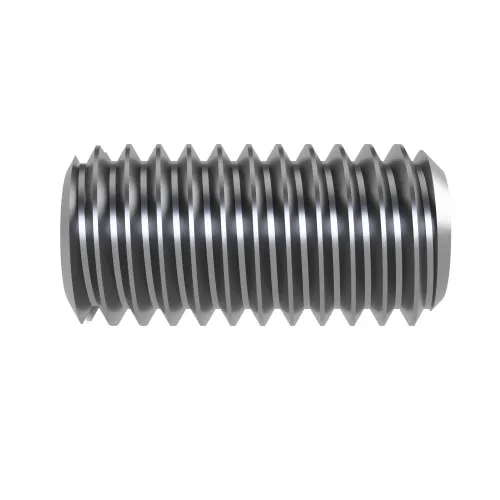

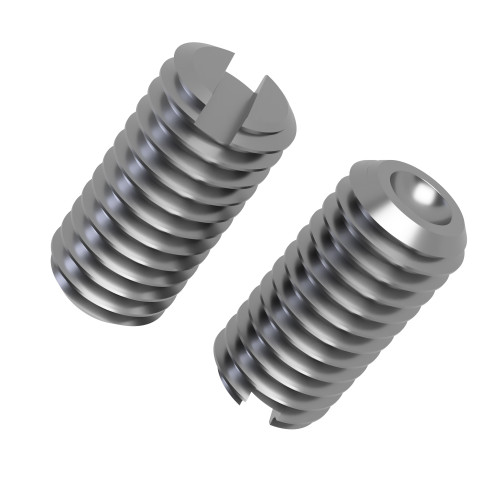

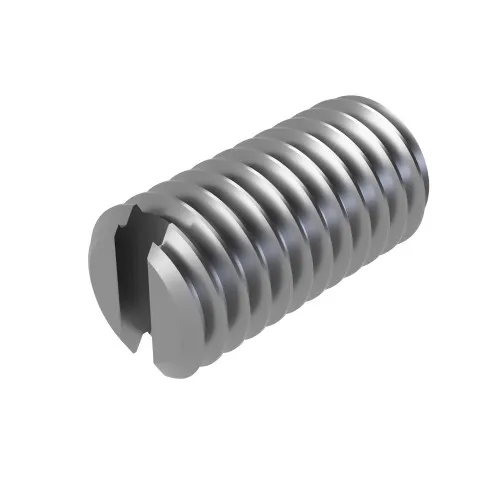

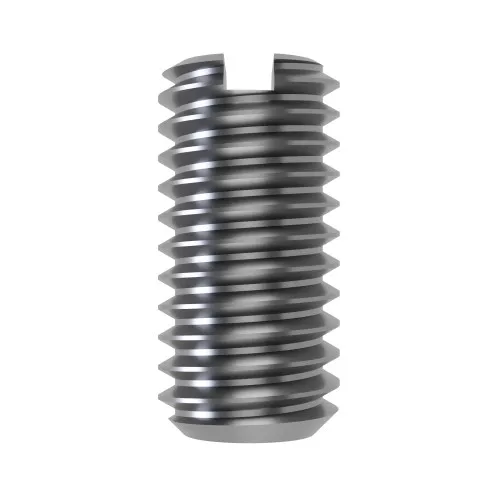

M5 x 5mm Slotted Set Screws - Cup Point (DIN 438) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.98 | £4.78 |
| 10 - 24 | £3.18 | £3.82 |
| 25 - 49 | £2.39 | £2.87 |
| 50 - 99 | £1.99 | £2.39 |
| 100 - 499 | £1.79 | £2.15 |
| 500 - 999 | £1.59 | £1.91 |
| 1000 + | £1.19 | £1.43 |
£4.78 / each
Product Specification
| Thread Size | M5 |
| Thread Length | 5mm |
| Pitch | 0.8mm |
| End Type | Cup |
| Drive | Slotted |
| Standard | DIN 438 / ISO 7436 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 5mm Slotted Grub Screw Cup Point A2 Stainless Steel DIN 438
The M5 x 5mm slotted cup point set screw is a short-engagement option - one full thread diameter - for applications where bore depth restricts how deep the set screw can go. Used in thin-walled shaft collars, compact coupling hubs and assemblies where an M5 thread is needed but there is simply not room for a longer grub screw. The cup point holds cleanly without over-biting and the headless design sits flush in the threaded hole. Drive with a flat-head screwdriver. A2 stainless steel (304 / 18-8) in standard indoor engineering use. DIN 438 / ISO 7436 compliant.
Common Applications
- Thin-walled shaft collar and coupling hub locking
- Compact assemblies with restricted bore depth
- Light-duty M5 shaft retention
- Indoor general engineering environments

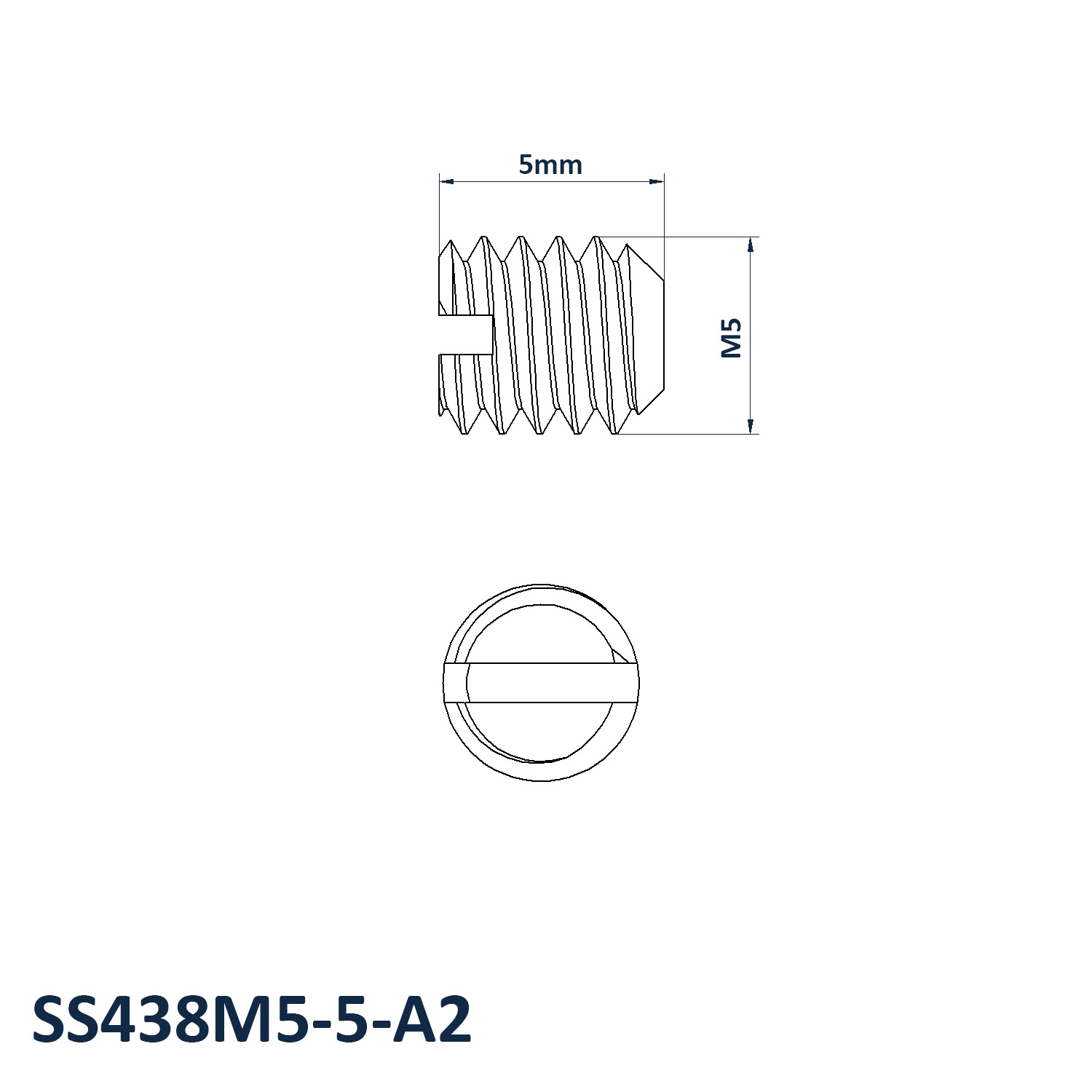

M5 Set Screw Dimensions
- Thread Size: M5
- Thread Length: 5mm
- Pitch: 0.8mm
- End Type: Cup
- Drive: Slotted
- Material: A2 Stainless Steel (304 / 18-8)
- Standard: DIN 438 / ISO 7436
View our full slotted grub screw range or browse our complete grub screw collection.
