Snap Fit Bushes - SFB001-850W
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.38 | £0.46 |
| 250 - 499 | £0.33 | £0.39 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 - 2499 | £0.20 | £0.24 |
| 2500 - 4999 | £0.17 | £0.20 |
| 5000 + | £0.14 | £0.17 |
Product Specification
| To Fit Hole Diameter | 6.4mm |
| Max Panel Thickness | 1.2mm |
| Max Cable Diameter | 4.7mm |
| Head Diameter | 7.9mm |
| Length | 6.0mm |
| Material | Nylon |
| Colour | White |
Frequently Bought Together
Total Price: £0.00

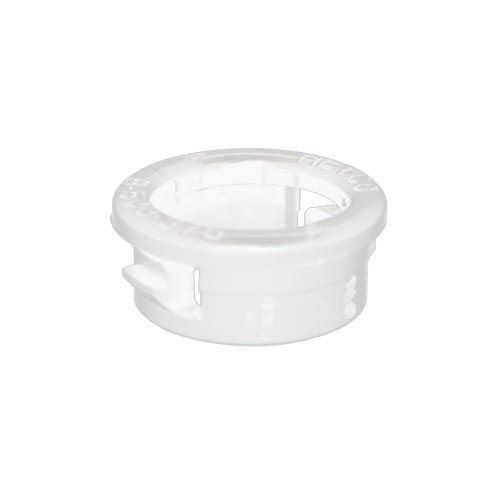

6.4mm To Fit Hole x 4.7mm Max Cable Snap Fit Bush | White Nylon
Built for push-in installation, this white cable protection bush suits 1.2mm panels and gives a tidy finish around 6.4mm cable entry holes.
Its low-profile head gives the aperture a professional finish while the nylon body helps create a protective barrier between the panel and the cable jacket. This white nylon cable bush is particularly useful for workshop fabrication where tidy cable entry, panel edge protection and straightforward installation are important.
What Are Snap Fit Bushes?
Snap fit bushes, also called cable bushings, are push-in components used to line panel holes and protect cables from exposed edges. They are typically installed directly into a prepared aperture so wiring can pass through with less risk of abrasion or damage.
Common Applications
- Marine and leisure equipment panels
- Audio visual rack panels
- Switchgear and distribution box panels
- HVAC control box wiring

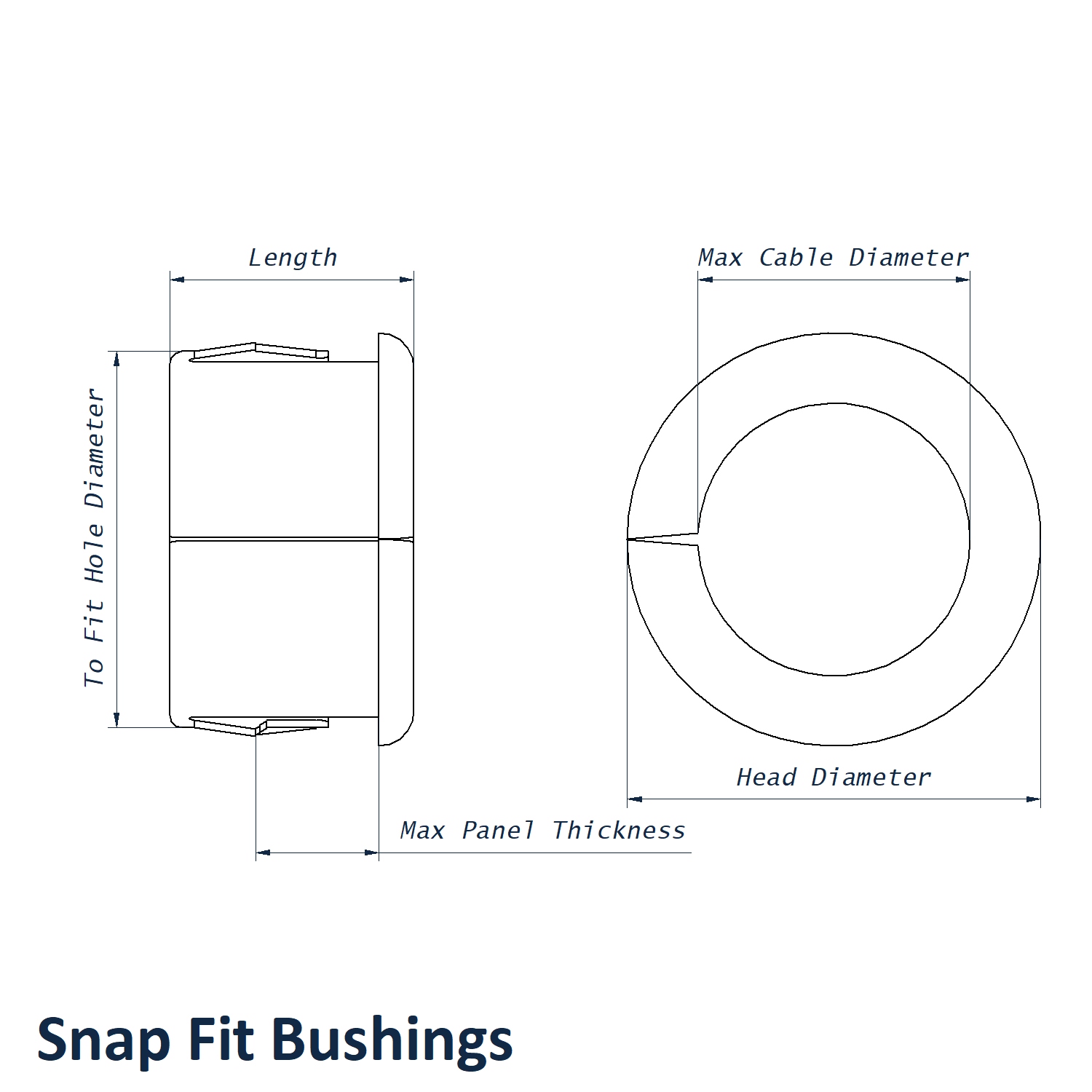

6.4mm White Snap Fit Bush Dimensions
- To Fit Hole Diameter: 6.4mm
- Max Panel Thickness: 1.2mm
- Max Cable Diameter: 4.7mm
- Head Diameter: 7.9mm
- Length: 6.0mm
- Material: Nylon
- Colour: White
Related Cable Bushing Options
For cable bushing alternatives, we also offer Open/Closed Bushes, Universal Snap Fit Bushes and Universal Open/Closed Bushes for applications where split entry, wider cable coverage or greater flexibility is needed.
View our full Snap Fit Bushes range.
Product Support and Trade Orders
For help checking panel hole size, cable diameter or bulk quantities for a production run, speak with the Vital Parts team on 01233 713581. We can support trade enquiries, repeat orders and product selection for cable protection applications.
