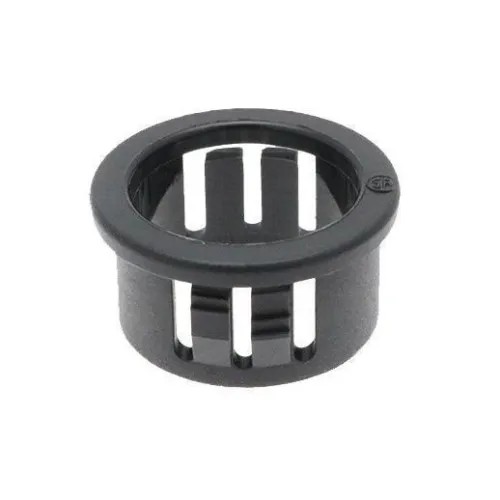

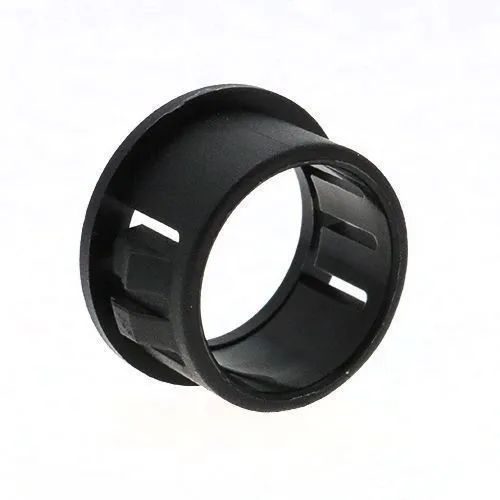

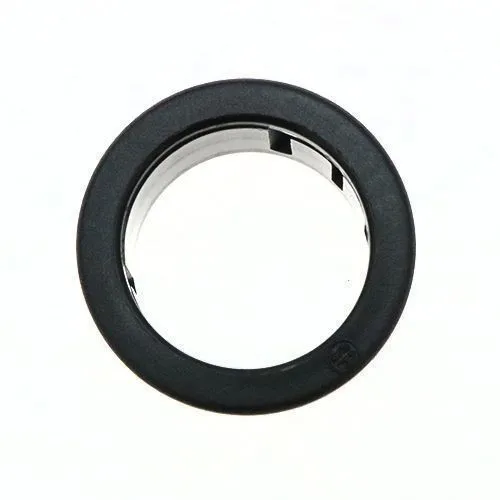

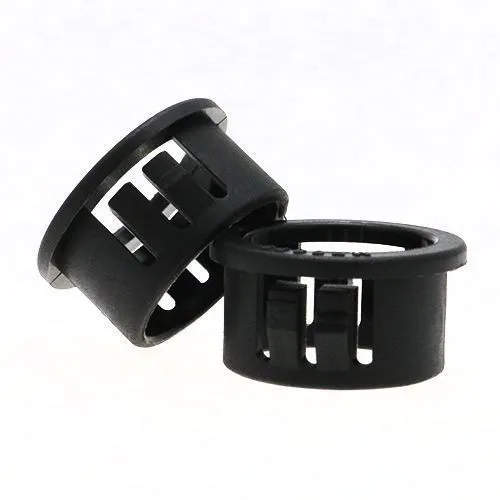

88.9mm Snap Fit Bushing - 6.4mm Panel (74.6mm Cable) | Black Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.62 | £1.94 |
| 250 - 499 | £1.51 | £1.81 |
| 500 - 999 | £1.40 | £1.68 |
| 1000 - 2499 | £1.29 | £1.55 |
| 2500 - 4999 | £1.18 | £1.42 |
| 5000 + | £1.07 | £1.29 |
Product Specification
| To Fit Hole Diameter | 88.9mm |
| Max Panel Thickness | 6.4mm |
| Max Cable Diameter | 74.6mm |
| Head Diameter | 92.8mm |
| Length | 18.1mm |
| Material | Nylon |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
88.9mm To Fit Hole x 74.6mm Max Cable Snap Fit Bush | Black Nylon
Designed for 88.9mm panel holes, this black snap fit bush provides a neat cable entry point for wires up to 74.6mm while suiting panels up to 6.4mm thick.
The snap fit design helps reduce installation time because the bush can be pushed directly into the prepared hole without separate fixings. Once installed, it helps prevent cables rubbing against rough or sharp panel edges. This black nylon cable bush is particularly useful for signage builds where tidy cable entry, panel edge protection and straightforward installation are important.
What Are Snap Fit Bushes?
Snap fit bushes, also called cable bushings, are push-in components used to line panel holes and protect cables from exposed edges. They are typically installed directly into a prepared aperture so wiring can pass through with less risk of abrasion or damage.
Common Applications
- Telecommunications cabinet builds
- Maintenance replacement cable bushes
- Laboratory equipment wiring protection
- Meter box and instrument panel openings

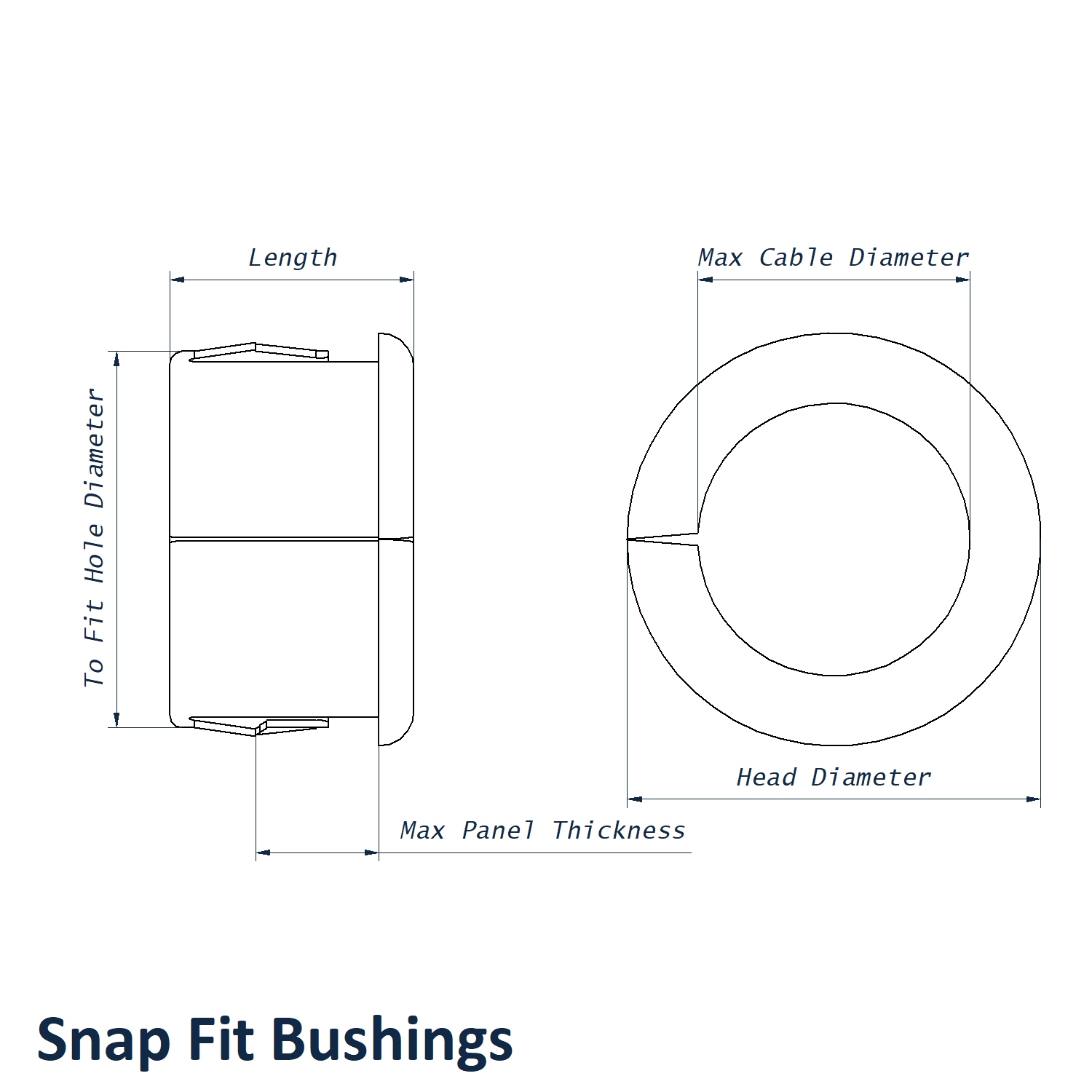

88.9mm Black Snap Fit Bush Dimensions
- To Fit Hole Diameter: 88.9mm
- Max Panel Thickness: 6.4mm
- Max Cable Diameter: 74.6mm
- Head Diameter: 92.8mm
- Length: 18.1mm
- Material: Nylon
- Colour: Black
Related Cable Bushing Options
For cable bushing alternatives, we also offer Open/Closed Bushes, Universal Snap Fit Bushes and Universal Open/Closed Bushes for applications where split entry, wider cable coverage or greater flexibility is needed.
View our full Snap Fit Bushes range.
Product Support and Trade Orders
For help checking panel hole size, cable diameter or bulk quantities for a production run, speak with the Vital Parts team on 01233 713581. We can support trade enquiries, repeat orders and product selection for cable protection applications.
