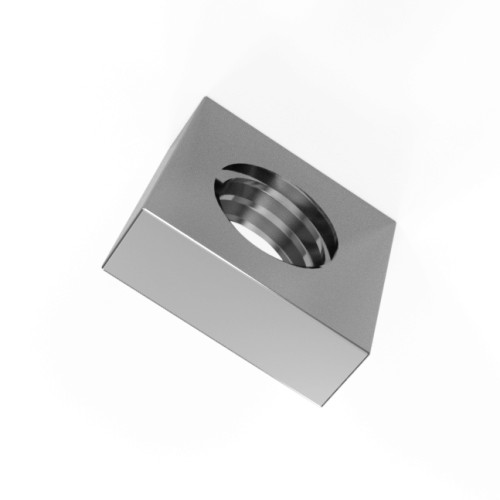

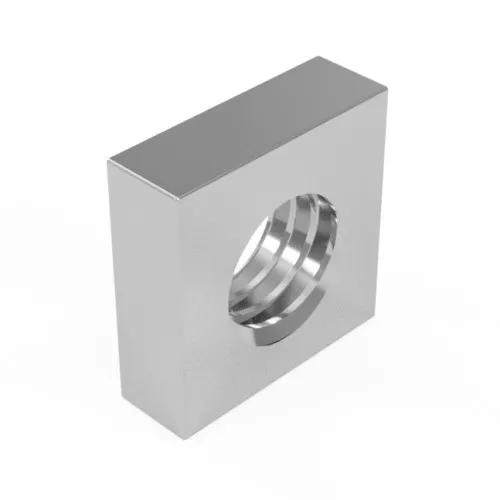

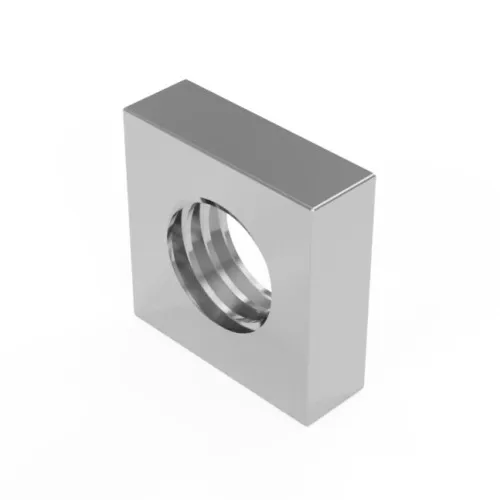

M5 Square Nut (DIN 562) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 999 | £0.06 | £0.07 |
| 1000 - 7999 | £0.05 | £0.06 |
| 8000 + | £0.04 | £0.05 |
£0.10 / each
.png)
Product Specification
| Thread Size | M5 |
| Thread Pitch | 0.80mm |
| Material | A4 Stainless Steel |
| Across Flats | 8.0mm |
| Height | 2.7mm |
| Standard | DIN 562 |
Frequently Bought Together
Total Price: £0.00
M5 Square Nut | DIN 562 | Marine Grade A4 Stainless Steel
This M5 DIN 562 square nut is manufactured to DIN 562 from A4 Stainless Steel for secure fastening with compatible externally threaded components. The four-sided profile provides a broad contact area while the 8.0mm across-flats dimension gives a positive surface for holding the nut during assembly. The A4 grade provides enhanced corrosion resistance for suitable outdoor, coastal and marine environments.
What Are DIN 562 Square Nuts?
Square Nuts provide four broad flats around the threaded hole which can make them useful in channels, furniture assemblies and fabricated structures. DIN 562 defines the dimensional format for this thinner square-nut style so compatible parts can be selected consistently.
Common Applications
- General Engineering: Provides a reliable metric fastening point for machinery, equipment and fabricated assemblies.
- Machine Assemblies: Secures compatible bolts and threaded components in machinery and industrial equipment.
- Sheet Metal Work: Can be used in suitable recesses or channels within fabricated sheet-metal components.
- Marine Applications: A4 Stainless Steel variants are suited to suitable coastal and marine-grade fastening applications.

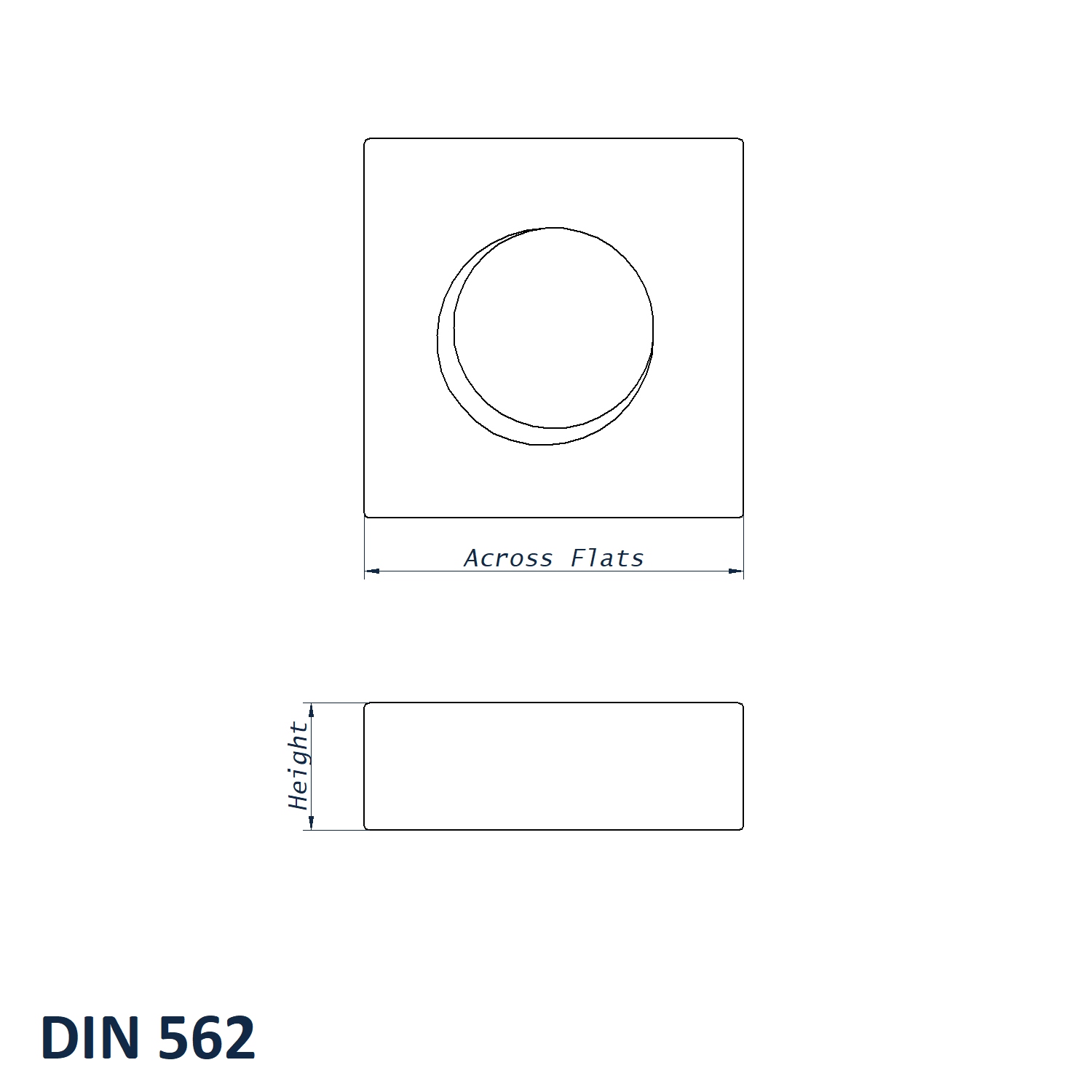

M5 DIN 562 Square Nut Dimensions
- Thread Size: M5
- Thread Pitch: 0.80mm
- Across Flats: 8.0mm
- Height: 2.7mm
- Material: A4 Stainless Steel
- Standard: DIN 562
Key Benefits
- M5 metric thread provides the specified fastening size.
- 8.0mm across-flats dimension provides the stated square body width.
- DIN 562 manufacture provides a recognised dimensional standard for this square-nut format.
- Square shape can help resist rotation when located inside a compatible channel or recess.
We also stock other styles in our Square Nuts range, including chamfered square nuts and square weld nuts. We can help you compare thread sizes, materials and square nut styles on 01233 713581.
