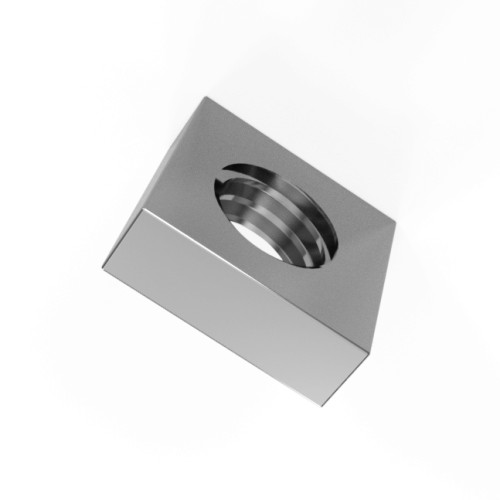

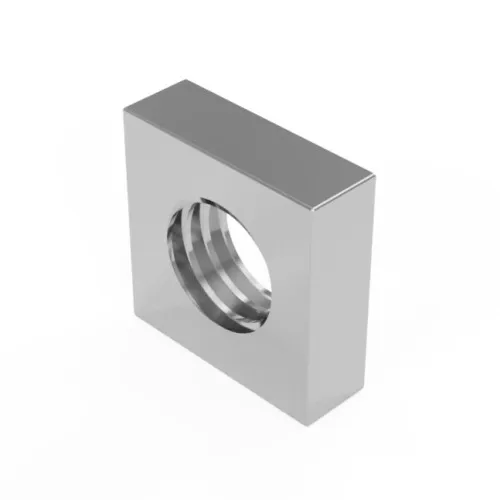

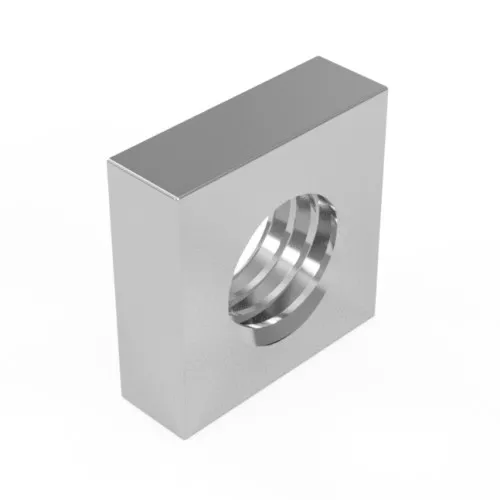

M8 Square Nut (DIN 562) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.73 | £0.88 |
| 100 - 499 | £0.64 | £0.77 |
| 500 - 999 | £0.57 | £0.69 |
| 1000 + | £0.43 | £0.52 |
£0.88 / each
.png)
Product Specification
| Thread Size | M8 |
| Thread Pitch | 1.25mm |
| Material | A4 Stainless Steel |
| Across Flats | 13.0mm |
| Height | 4.0mm |
| Standard | DIN 562 |
Frequently Bought Together
Total Price: £0.00
M8 Square Nut | DIN 562 | Marine Grade A4 Stainless Steel
This M8 machine square nut is suited to high-moisture equipment and external structures where a square-profile nut is preferred for positioning, holding or load distribution. The 13.0mm across-flats size and 4.0mm height follow the DIN 562 dimensions for this thread size. The A4 grade provides enhanced corrosion resistance for suitable outdoor, coastal and marine environments.
What Are DIN 562 Square Nuts?
DIN 562 Square Threaded Nuts combine a metric internal thread with a flat four-sided body. They are commonly used in general engineering, furniture manufacture and metal assemblies where the square shape helps with positioning or resistance to turning.
Common Applications
- Machine Assemblies: Secures compatible bolts and threaded components in machinery and industrial equipment.
- Maintenance and Repair: Offers a replacement fastening option for assemblies originally designed around square-profile nuts.
- Marine Applications: A4 Stainless Steel variants are suited to suitable coastal and marine-grade fastening applications.
- Metal Channel Assemblies: Can sit within compatible channels or captive spaces where the square profile helps resist rotation.

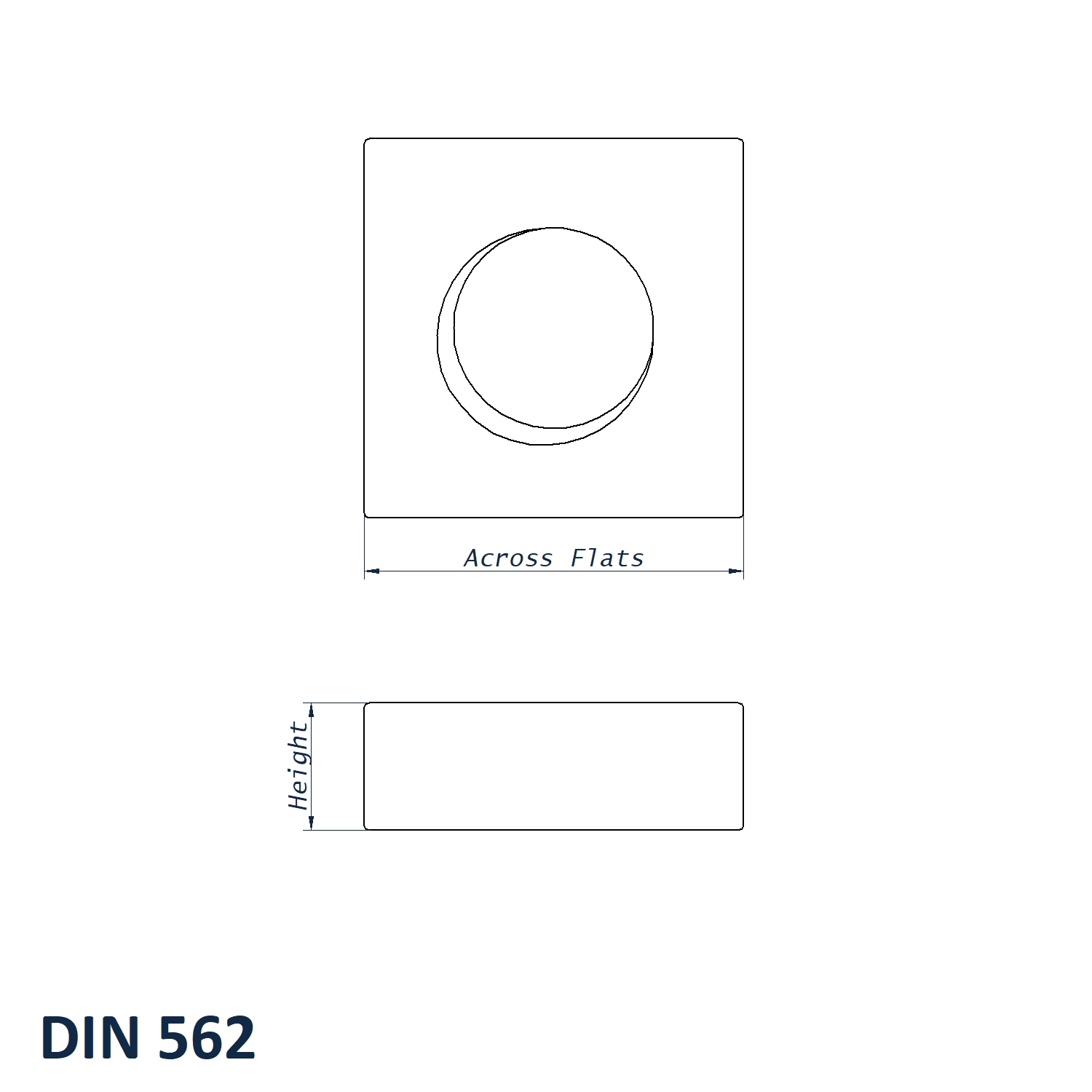

M8 DIN 562 Square Nut Dimensions
- Thread Size: M8
- Thread Pitch: 1.25mm
- Across Flats: 13.0mm
- Height: 4.0mm
- Material: A4 Stainless Steel
- Standard: DIN 562
Key Benefits
- A4 Stainless Steel construction provides corrosion resistance for suitable engineering applications.
- Four-sided profile provides broad contact with the mating surface or retaining feature.
- Compact square profile suits machinery, furniture and fabricated assemblies.
- 1.25mm thread pitch matches compatible metric bolts and threaded components.
If DIN 562 is not the right style, see our full Square Nuts range for other square nut designs. We can help you compare thread sizes, materials and square nut styles on 01233 713581.
