Stainless Steel Adjustable Feet - ADJ319
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £10.93 | £13.11 |
| 2 - 24 | £10.71 | £12.85 |
| 25 - 49 | £10.49 | £12.59 |
| 50 - 99 | £10.28 | £12.34 |
| 100 + | £10.07 | £12.09 |
Product Specification
| Thread Size | M10 |
| Thread Length | 180mm |
| Base Diameter | 40mm |
| Material | A2 Stainless Steel |
| Base Height | 20mm |
Frequently Bought Together
Total Price: £0.00

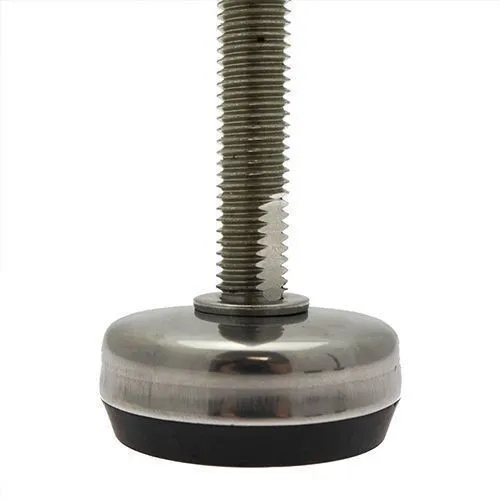

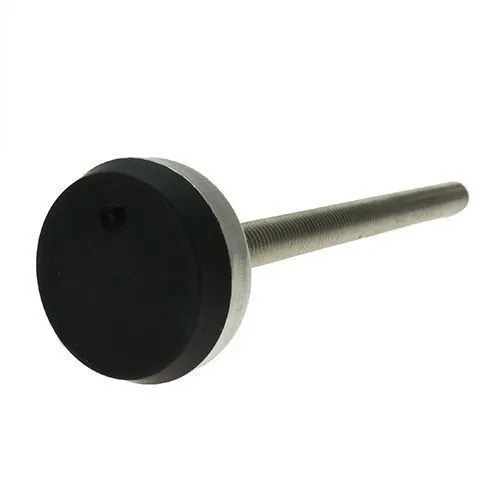

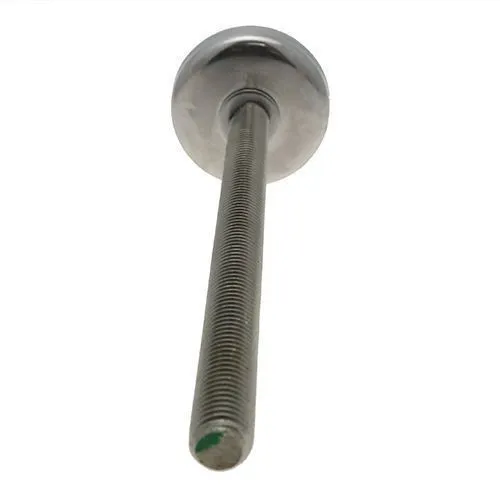

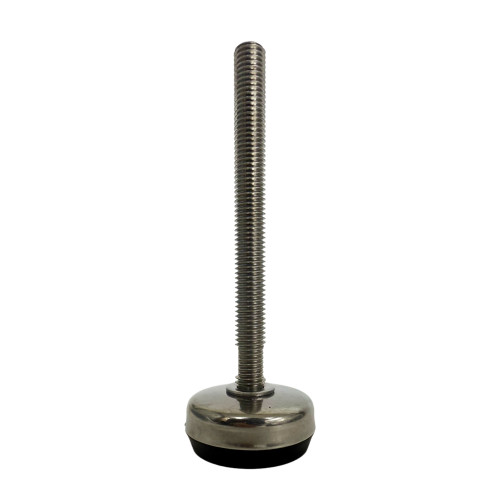

M10 x 180mm Stainless Steel Adjustable Foot | 40mm Base Diameter | A2 Stainless Steel
The M10 x 180mm stainless steel adjustable foot with a rubber foot base is suited to stainless retail fixtures, display counters and service equipment where a discreet levelling foot is preferred.
The 40mm base diameter and 20mm base height give this size a compact footprint. The long 180mm thread helps compensate for deeper cabinet bases and uneven floor conditions while keeping the visible base compact.
Common Applications
- Retail counters with stainless support frames
- Display equipment requiring hidden height adjustment
- Commercial service units installed on tiled floors

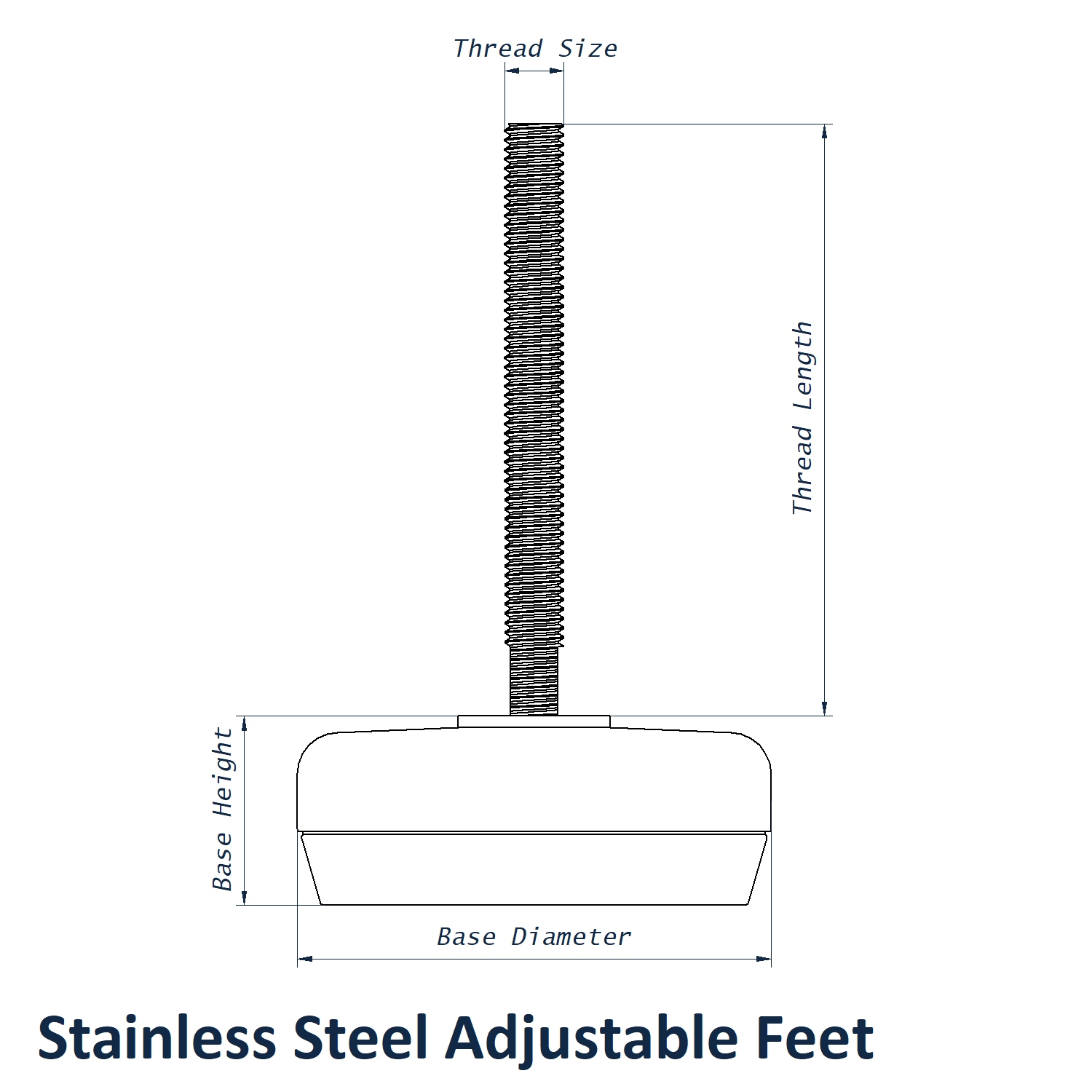

M10 x 180mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M10
- Thread Length: 180mm
- Base Height: 20mm
- Material: A2 Stainless Steel
Installation Tip
This size is useful when a cabinet or fixture has a taller plinth and the installer needs more reach from the threaded stem.
Compatible T Nuts
For equipment frames that need a removable threaded insert, check the T Nuts range and confirm the matching thread before installation.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
