Stainless Steel Adjustable Feet - ADJ331
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £30.57 | £36.68 |
| 2 - 24 | £27.82 | £33.38 |
| 25 - 49 | £25.31 | £30.37 |
| 50 - 99 | £23.03 | £27.64 |
| 100 + | £20.96 | £25.15 |
Product Specification
| Thread Size | M16 |
| Thread Length | 310mm |
| Base Diameter | 40mm |
| Material | A2 Stainless Steel |
| Base Height | 20mm |
Frequently Bought Together
Total Price: £0.00

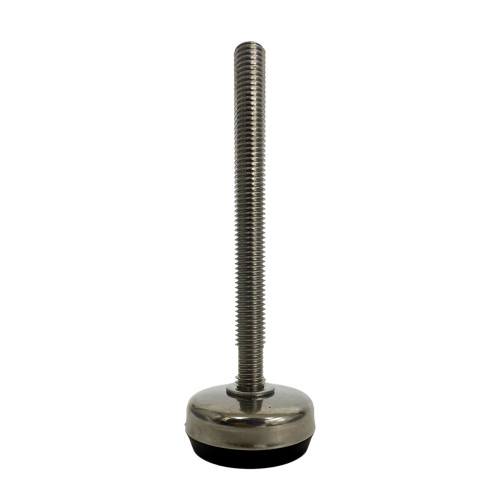

M16 x 310mm Stainless Steel Adjustable Foot | 40mm Base Diameter | A2 Stainless Steel
For high adjustment machinery support, this M16 x 310mm stainless steel adjustable foot with rubber floor contact is specified for machinery supports where a compact 40mm base must be paired with a very long M16 adjustment thread.
The 40mm base diameter and 20mm base height give this size a compact footprint. The 310mm stem gives extended reach for tall legs, raised frames and special builds where standard thread lengths are not sufficient.
Common Applications
- Tall stainless equipment legs with internal inserts
- Raised process frames requiring extended levelling travel
- Special machinery builds with high mounting points
M16 x 310mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M16
- Thread Length: 310mm
- Base Height: 20mm
- Material: A2 Stainless Steel
Installation Tip
Choose this long stem when the fixing point sits far from the floor and accurate levelling still needs to be carried out from the base.
Compatible T Nuts
For assemblies where the M16 thread needs to screw into a replaceable insert rather than a welded boss, matching T Nuts may help create a cleaner fixing point.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
