Stainless Steel Adjustable Feet - ADJ343
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £23.97 | £28.76 |
| 2 - 24 | £21.81 | £26.17 |
| 25 - 49 | £19.85 | £23.82 |
| 50 - 99 | £18.06 | £21.67 |
| 100 + | £16.43 | £19.72 |
Product Specification
| Thread Size | M10 |
| Thread Length | 150mm |
| Base Diameter | 50mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

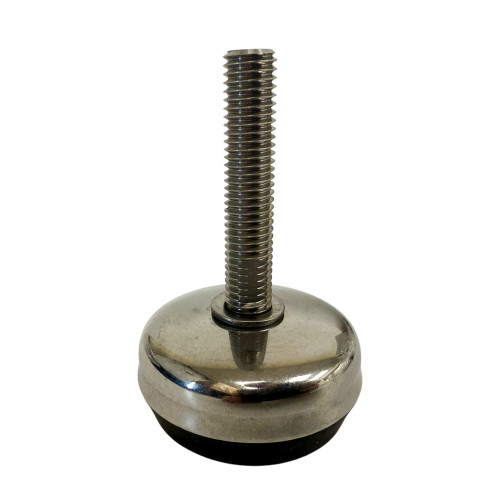

M10 x 150mm Stainless Steel Adjustable Foot | 50mm Base Diameter | A2 Stainless Steel
This M10 x 150mm adjustable stainless foot with a rubber contact base is well suited to display equipment where the foot must offer tidy adjustment without looking oversized below the frame.
The 50mm base diameter and 23mm base height give this size a balanced footprint. The 150mm M10 thread helps display units and exhibition structures level out across uneven floors or temporary installation sites.
Common Applications
- Retail display frames and exhibition stands
- Presentation benches with stainless supports
- Adjustable plinths used in commercial interiors

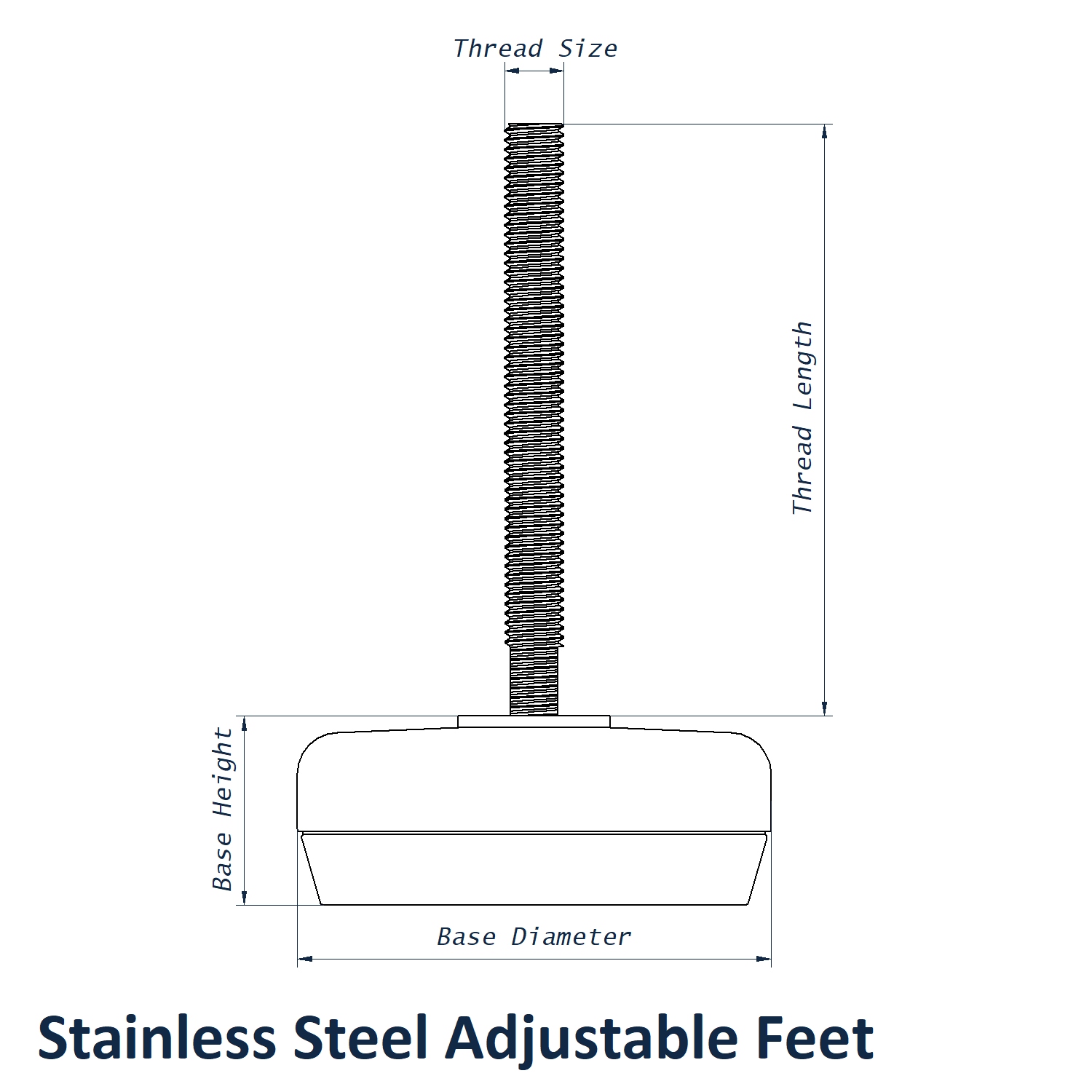

M10 x 150mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M10
- Thread Length: 150mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Installation Tip
Use this foot where a display fixture needs extra stem length to accommodate different venues or changing floor conditions.
Compatible T Nuts
T Nuts are often used with adjustable feet where a strong internal thread is required inside a drilled hole or prepared frame component.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
