Stainless Steel Adjustable Feet - ADJ347
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £22.14 | £26.57 |
| 2 - 24 | £20.15 | £24.18 |
| 25 - 49 | £18.34 | £22.01 |
| 50 - 99 | £16.69 | £20.03 |
| 100 + | £15.18 | £18.22 |
Product Specification
| Thread Size | M12 |
| Thread Length | 70mm |
| Base Diameter | 50mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

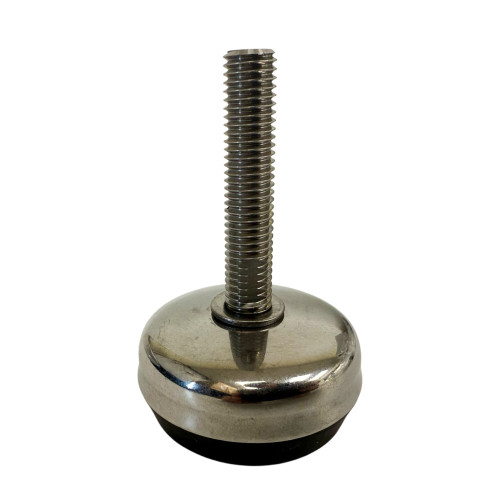

M12 x 70mm Stainless Steel Adjustable Foot | 50mm Base Diameter | A2 Stainless Steel
Where conveyor leg replacement is the priority, this M12 x 70mm stainless steel adjustable foot with a rubber support base is specified for conveyor leg replacements where a 50mm base improves contact area and an M12 thread matches common support inserts.
The 50mm base diameter and 23mm base height give this size a balanced footprint. The 70mm thread length gives enough travel for setting conveyor height without leaving a long stem exposed under the frame.
Common Applications
- Replacement feet for stainless conveyor legs
- Short support points on packing conveyors
- Material handling frames that need clean adjustment
M12 x 70mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M12
- Thread Length: 70mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Size Advice
Use this size for routine conveyor maintenance where the existing leg insert accepts an M12 thread and the height change is moderate.
Compatible T Nuts
If the foot is being used with furniture-style framing or fabricated supports, select a compatible T Nut where the design calls for an internal threaded anchor.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
