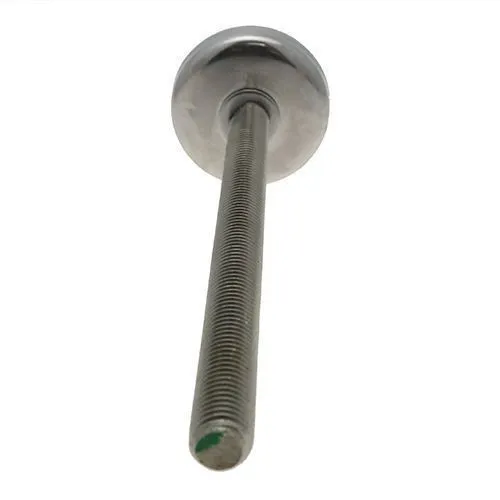

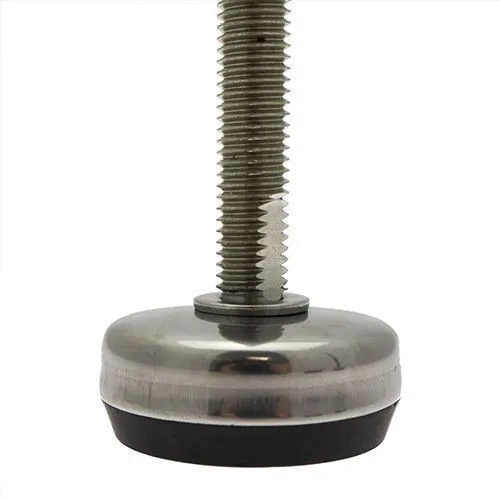

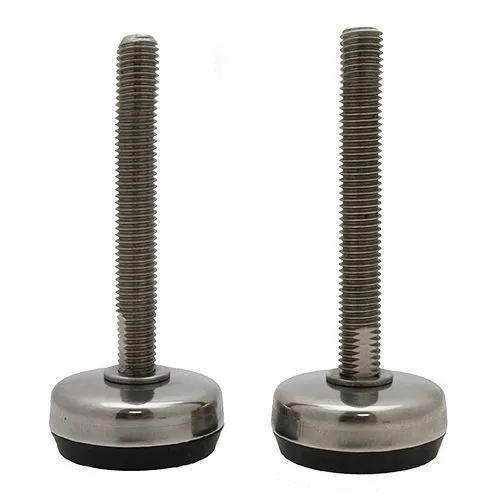

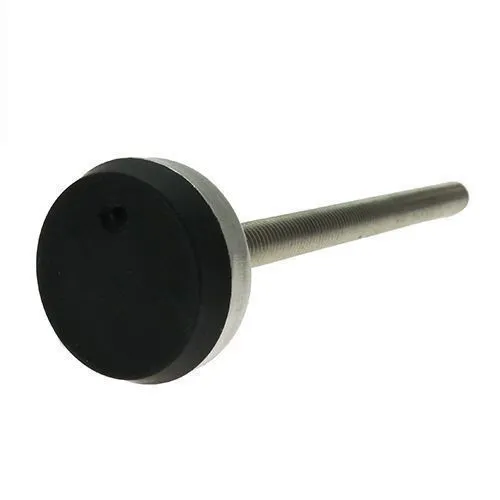

Stainless Steel Adjustable Feet - ADJ371
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £28.02 | £33.62 |
| 2 - 24 | £27.46 | £32.95 |
| 25 - 49 | £26.91 | £32.29 |
| 50 - 99 | £26.37 | £31.64 |
| 100 + | £25.84 | £31.01 |
Product Specification
| Thread Size | M10 |
| Thread Length | 150mm |
| Base Diameter | 75mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

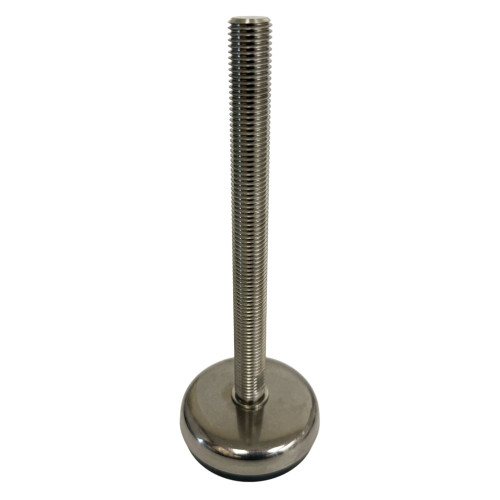

M10 x 150mm Stainless Steel Adjustable Foot | 75mm Base Diameter | A2 Stainless Steel
For commercial furniture levelling, this M10 x 150mm stainless steel adjustable foot with rubber floor contact is suited to commercial furniture levelling where a 75mm base and long M10 thread help support larger framed units.
The 75mm base diameter and 23mm base height give this size a wide base footprint. The 150mm stem offers additional adjustment for counters, benches and display structures with deeper base sections.
Common Applications
- Commercial furniture frames with stainless legs
- Long display counters requiring levelling points
- Service benches installed across uneven floors

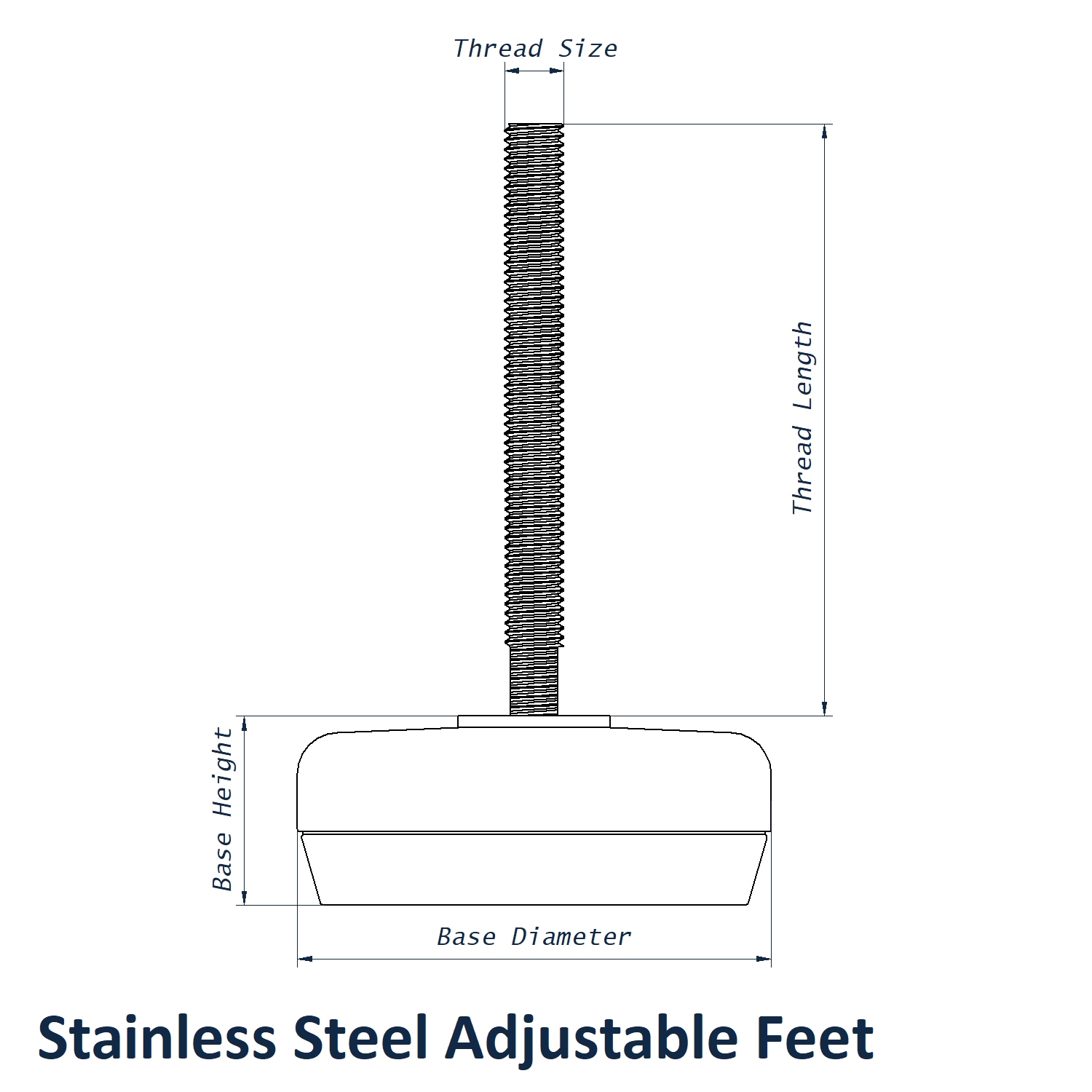

M10 x 150mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 75mm
- Thread Size: M10
- Thread Length: 150mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Size Advice
This size works well where a light thread is adequate but the frame needs more adjustment height and a wider base.
Compatible T Nuts
For assemblies where the M10 thread needs to screw into a replaceable insert rather than a welded boss, matching T Nuts may help create a cleaner fixing point.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
