M16 x 70mm Stainless Steel Adjustable Foot - 75mm Base | Hygienic
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £34.74 | £41.69 |
| 2 - 24 | £31.62 | £37.94 |
| 25 - 49 | £28.77 | £34.52 |
| 50 - 99 | £26.18 | £31.42 |
| 100 + | £23.82 | £28.59 |
Product Specification
| Thread Size | M16 |
| Thread Length | 70mm |
| Base Diameter | 75mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

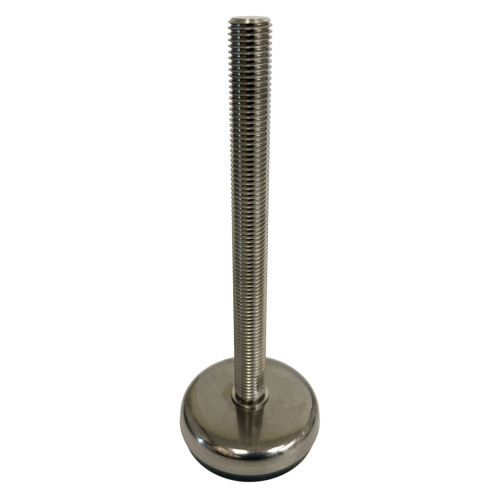

M16 x 70mm Stainless Steel Adjustable Foot | 75mm Base Diameter | A2 Stainless Steel
This M16 x 70mm stainless steel adjustable foot with a rubber base is built for heavy duty worktables where an M16 thread and 75mm base provide stronger support and broader contact.
Its M16 thread, 70mm thread length and A2 Stainless Steel construction provide robust threaded support. The 70mm stem is suited to low heavy frames where only fine adjustment is needed after the table is positioned.
Common Applications
- Heavy duty worktables with stainless frames
- Industrial benches requiring wider foot contact
- Short-stem support on robust equipment bases

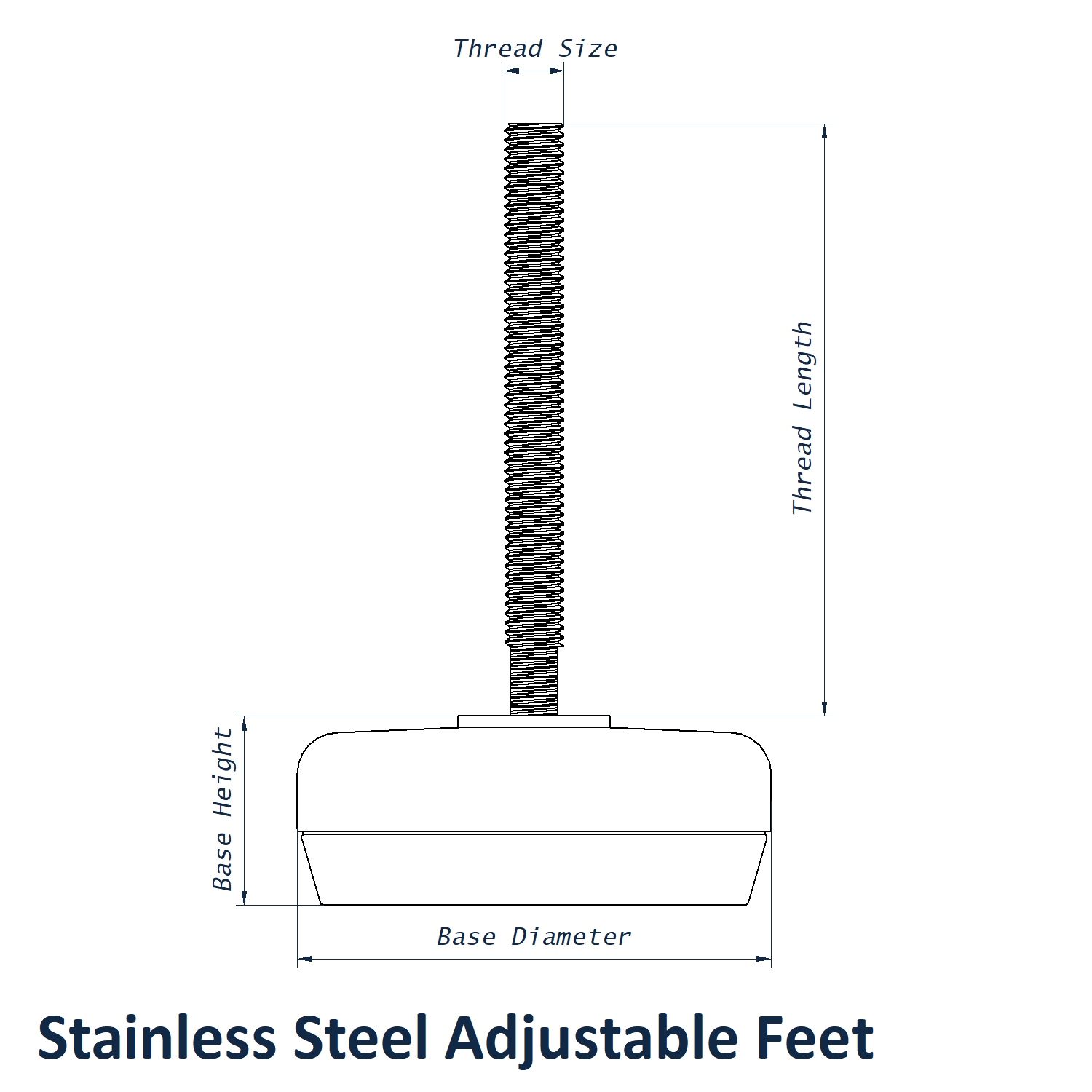

M16 x 70mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 75mm
- Thread Size: M16
- Thread Length: 70mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Specification Advice
This size is a strong choice where the table load calls for an M16 thread but the frame does not need much vertical travel.
Compatible T Nuts
When this foot is being fitted into timber, panel work or compatible frame sections, matching T Nuts can provide a secure threaded insert for the M16 fixing.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
