Stainless Steel Adjustable Feet - ADJ386
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £31.94 | £38.33 |
| 2 - 24 | £31.30 | £37.56 |
| 25 - 49 | £30.68 | £36.81 |
| 50 - 99 | £30.07 | £36.08 |
| 100 + | £29.46 | £35.35 |
Product Specification
| Thread Size | M20 |
| Thread Length | 70mm |
| Base Diameter | 75mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

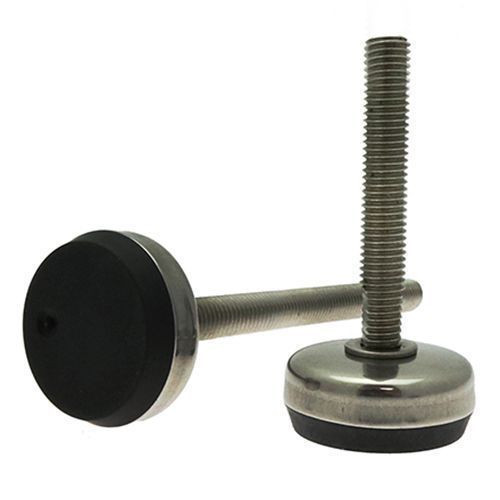

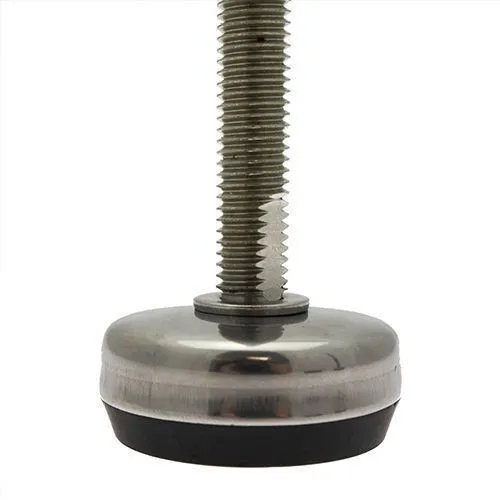

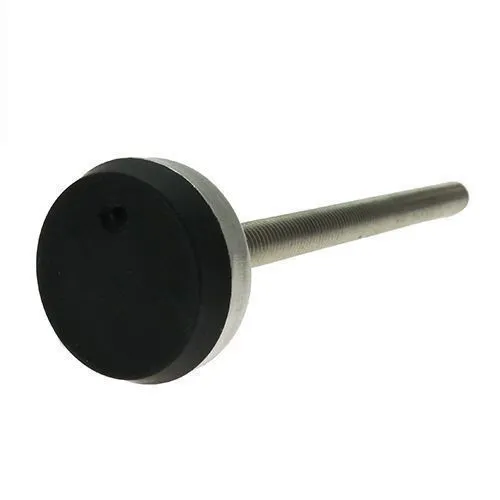

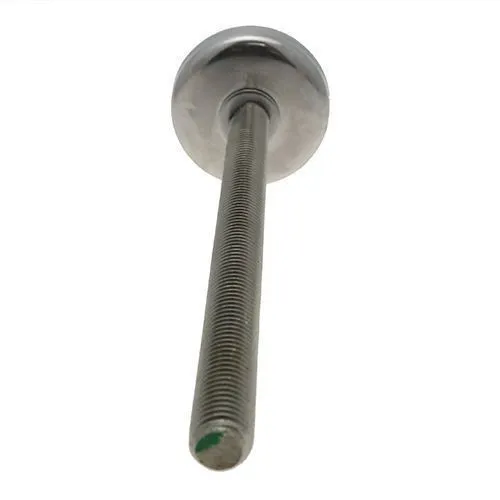

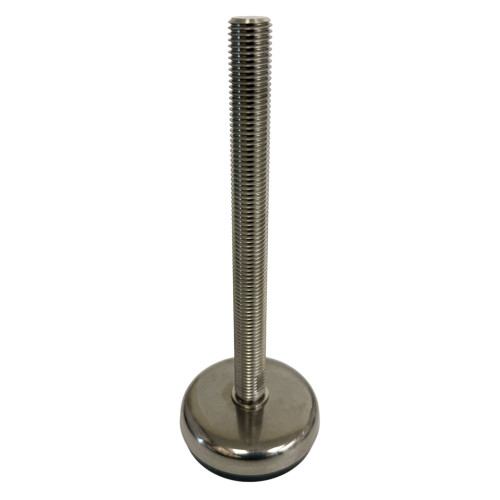

M20 x 70mm Stainless Steel Adjustable Foot | 75mm Base Diameter | A2 Stainless Steel
For heavy conveyor support with broad base, this M20 x 70mm stainless steel adjustable foot with rubber floor contact is built for heavy conveyor supports where an M20 thread and 75mm base help maintain alignment across the line.
With a 70mm thread length and 75mm base diameter, this option gives buyers a clear wide base footprint specification. The 70mm stem is suited to robust legs that need fine final adjustment rather than large height changes.
Common Applications
- Heavy conveyor support legs
- Industrial material handling frames
- Short-stem M20 feet for production equipment

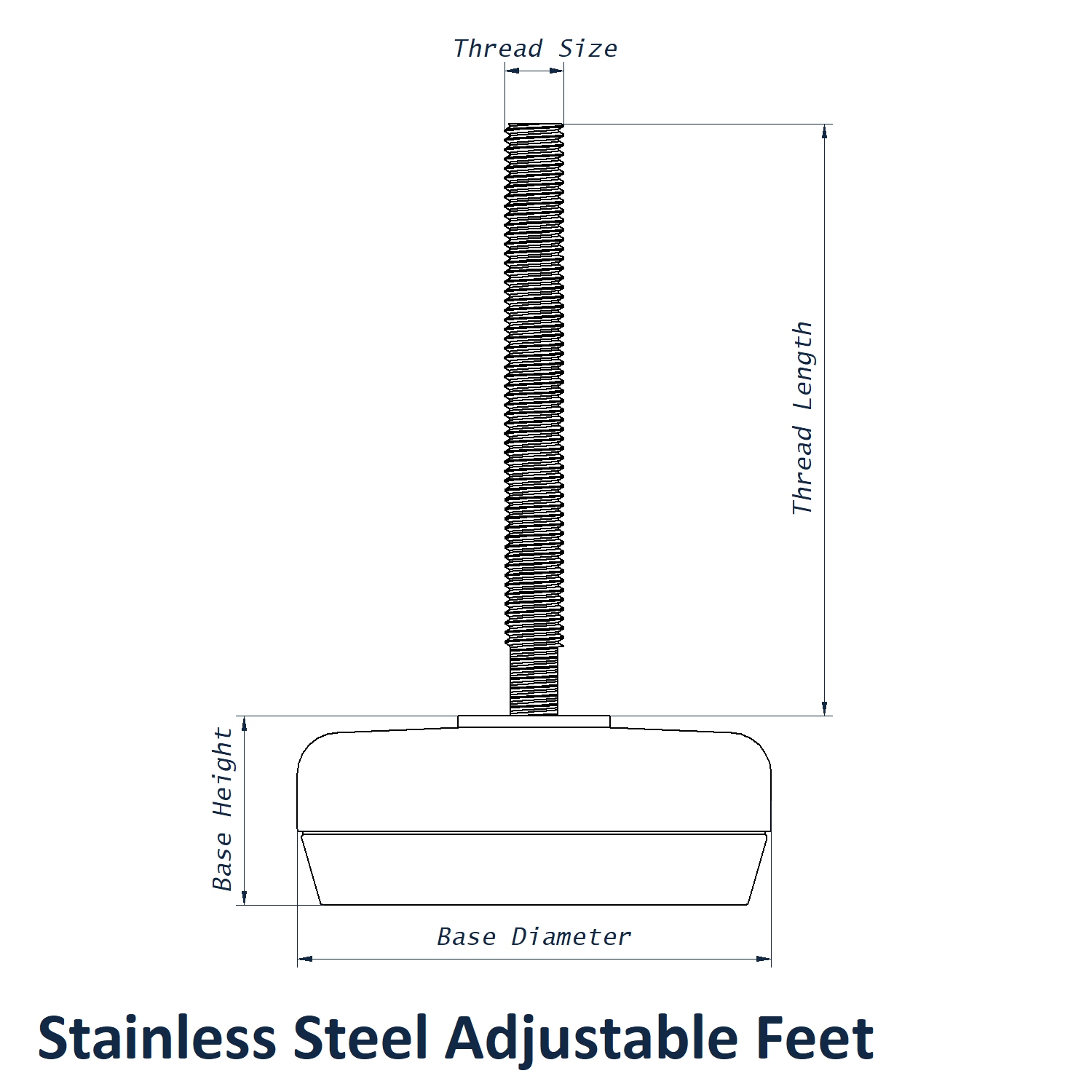

M20 x 70mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 75mm
- Thread Size: M20
- Thread Length: 70mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Specification Advice
Use this option where the conveyor frame already sits near its final height and needs a stronger broad-base support.
Compatible T Nuts
For assemblies where the M20 thread needs to screw into a replaceable insert rather than a welded boss, matching T Nuts may help create a cleaner fixing point.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
