M10 x 120mm Stainless Steel Levelling Foot (Covered Base) - 30mm Base | 550kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £2.62 | £3.14 |
| 500 - 999 | £2.56 | £3.07 |
| 1000 - 4999 | £2.51 | £3.01 |
| 5000 - 9999 | £2.46 | £2.95 |
| 10000 + | £2.41 | £2.89 |
£3.14 / each
Product Specification
| Thread Size | M10 |
| Thread Length | 120mm |
| Base Diameter | 30mm |
| Weight Rating | 550kg |
| Style | Standard |
| WAF | 17mm |
| Material | BZP Screw / Stainless Steel Cover/ Polypropylene Base |
| Base Height | 18mm |
Frequently Bought Together
Total Price: £0.00
M10 x 120mm Standard Stainless Steel Covered Adjustable Foot | 30mm Base Diameter | 550kg Weight Rated
Specified for panel stands, this M10 x 120mm standard adjustable foot combines a covered base with practical threaded adjustment for retail display adjustable feet.
The WAF measurement supports tool access during installation and adjustment, while the zinc Plated Screw, Stainless Steel Cover, Polypropylene Base construction supports everyday use in dry production areas and workshop floors. The 30mm base and 18mm assembled height help keep the installation compact.
Common Applications
- Appliance refurbishment and visible base replacements
- Medical equipment stands and clean utility furniture
- Retail display units and point of sale fixtures
- Assembly benches and production line workstations

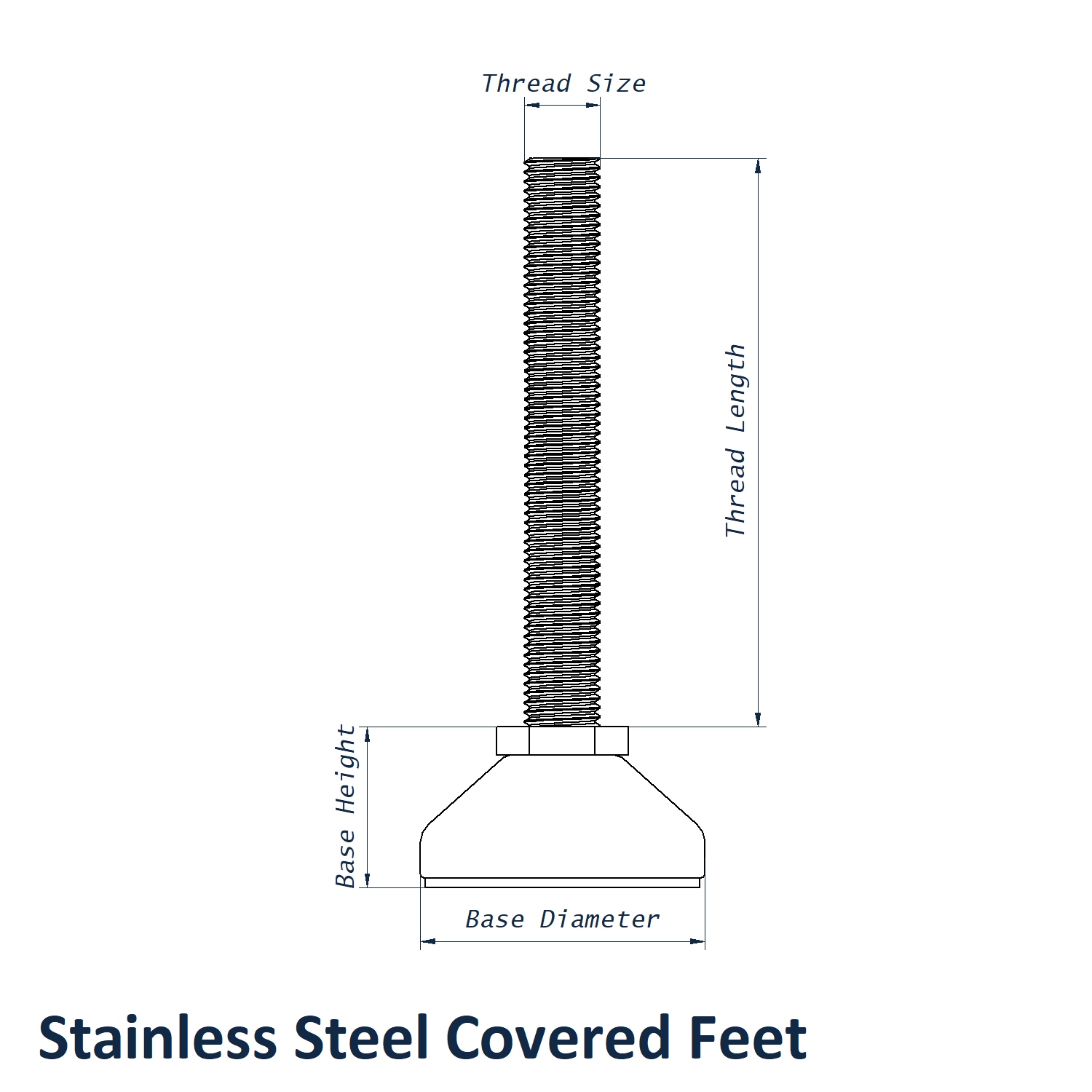

M10 x 120mm Standard Stainless Steel Covered Adjustable Foot Dimensions
- Thread: M10 x 120mm
- Base Diameter: 30mm
- Weight Rating: 550kg
- Base & Hex Nut Height: 18mm
- Style: Standard
- WAF: 17mm
- Material: Zinc Plated Screw, Stainless Steel Cover, Polypropylene Base
- Colour: Silver
Commonly Paired with Stainless Steel Covered Feet - T Nuts
For timber frames, cabinets and benches, T Nuts can provide a strong internal fixing point for compatible adjustable feet. Check thread size, panel thickness and load before buying.
Click here to view our full range of T Nuts.
View our full Stainless Steel Covered Feet range or browse Adjustable Feet for more levelling feet options.
