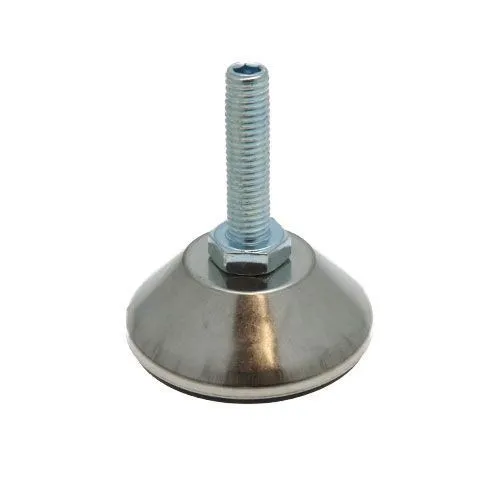

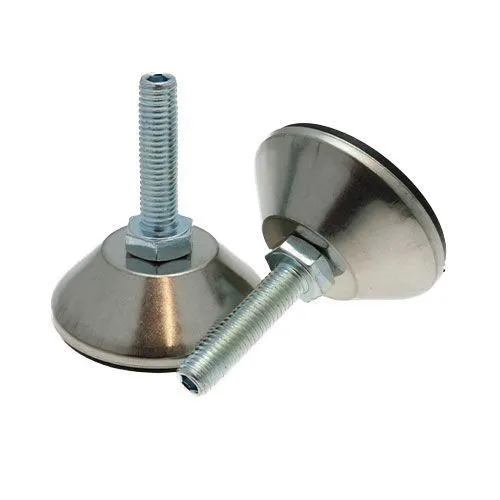

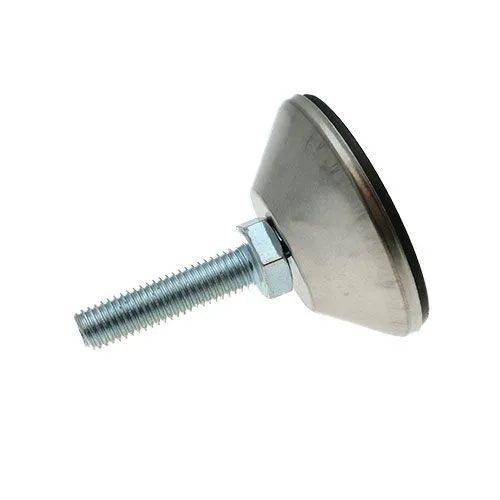

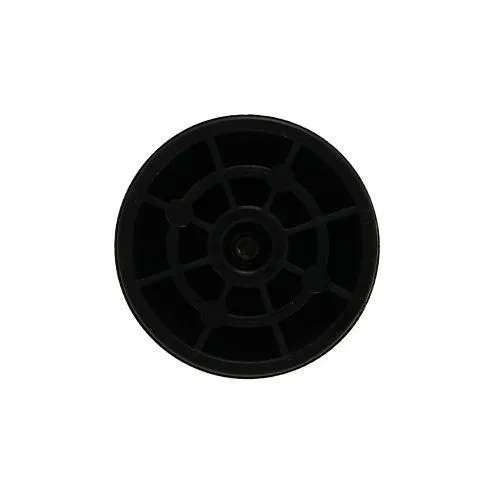

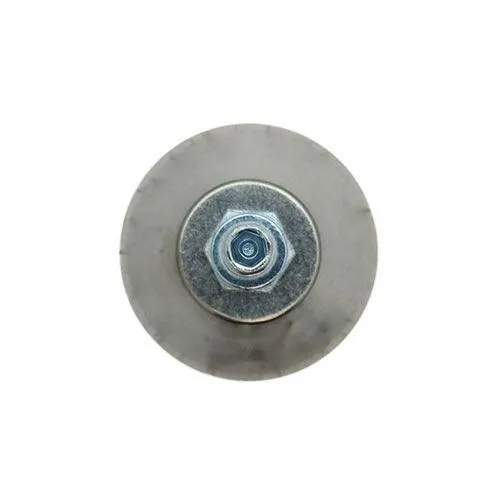

M10 x 90mm Stainless Steel Levelling Foot (Covered Base) - 30mm Base & 5mm Allen Head | 550kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £2.50 | £3.00 |
| 500 - 999 | £2.15 | £2.58 |
| 1000 - 4999 | £1.99 | £2.39 |
| 5000 - 9999 | £1.84 | £2.21 |
| 10000 + | £1.31 | £1.57 |
£3.00 / each
.png)

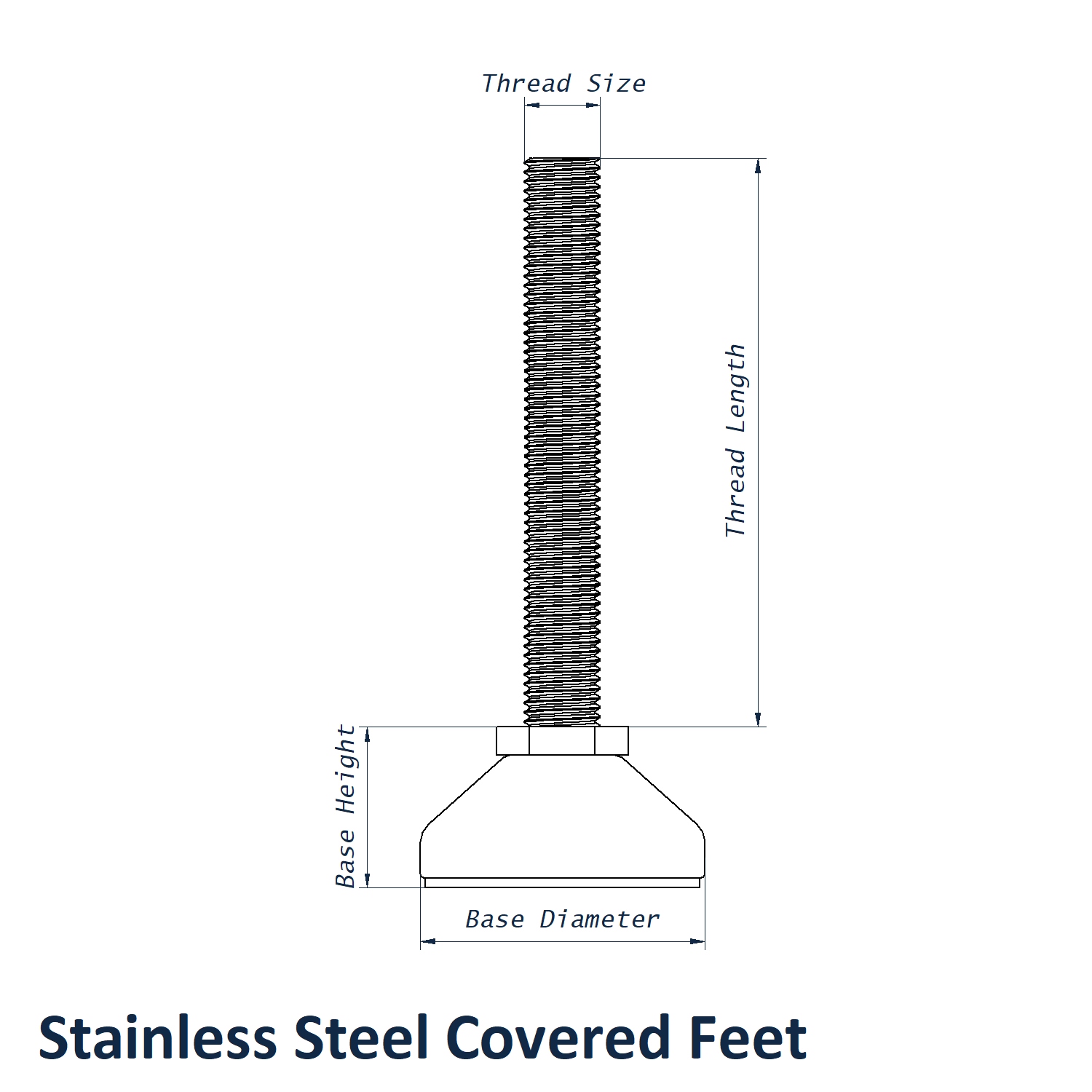

Product Specification
| Thread Size | M10 |
| Thread Length | 90mm |
| Base Diameter | 30mm |
| Weight Rating | 550kg |
| Style | 5mm Allen Head |
| WAF | 17mm |
| Material | BZP Screw / Stainless Steel Cover/ Polypropylene Base |
| Base Height | 18mm |
Frequently Bought Together
Total Price: £0.00
M10 x 90mm 5mm Allen Head Stainless Steel Covered Adjustable Foot | 30mm Base Diameter | 550kg Weight Rated
For packaging machinery, these M10 x 90mm 5mm allen head stainless steel covered levelling feet provide controlled height adjustment with a smart silver finish.
The polypropylene base keeps the foot lightweight while supporting everyday equipment. Its 30mm base diameter keeps the footprint controlled and the M10 x 90mm thread gives a familiar metric fixing for compatible inserts.
Common Applications
- School, college and training workshop benches
- Packaging lines and conveyor support frames
- Food packaging equipment in clean production areas
- Automation cells and machine commissioning projects
M10 x 90mm 5mm Allen Head Stainless Steel Covered Adjustable Foot Dimensions
- Thread: M10 x 90mm
- Base Diameter: 30mm
- Weight Rating: 550kg
- Base & Hex Nut Height: 18mm
- Style: 5mm Allen Head
- WAF: 17mm
- Material: Zinc Plated Screw, Stainless Steel Cover, Polypropylene Base
- Colour: Silver
Commonly Paired with Stainless Steel Covered Feet - T Nuts
T Nuts are often used where an adjustable foot needs to screw into a prepared wooden or composite base. Confirm the thread size and installation method against your application.
Click here to view our full range of T Nuts.
View our full Stainless Steel Covered Feet range or browse Adjustable Feet for more levelling feet options.
