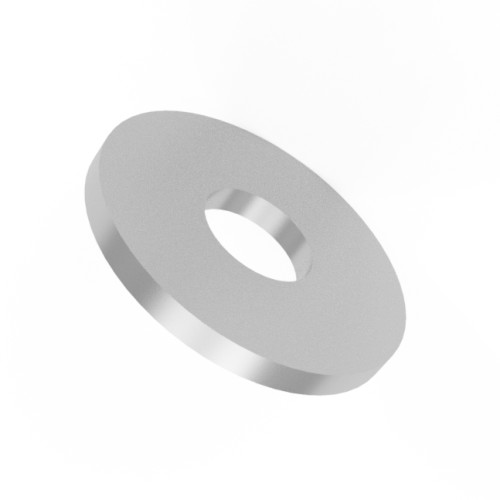

M8 Penny Washer (Large) 8.4mm ID x 35.0mm OD - A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.20 | £0.24 |
| 100 - 999 | £0.17 | £0.21 |
| 1000 - 3999 | £0.15 | £0.18 |
| 4000 + | £0.12 | £0.14 |
£0.24 / each
.png)
Product Specification
| Size | M8 |
| Internal Diameter | 8.4mm |
| Outside Diameter | 35.0mm |
| Thickness | 1.50mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M8 Penny Washer - 8.4mm ID x 35mm OD | A4 Stainless Steel
Used in marine and coastal fastening assemblies, this M8 Stainless Steel Repair Washer combines a 1.50mm thickness with a large 35.0mm outside diameter. It sits beneath a compatible nut, bolt or screw head to distribute the load over a broader area and support a more stable joint.
What Are Stainless Steel Penny Washers?
A Stainless Steel Penny Washer uses a wide flat profile to distribute fastening pressure over more of the surrounding surface. The range is manufactured to BS 4320 and includes A2 and A4 Stainless Steel options for general and more demanding environments.
Common Applications
- Construction: Used with bolts and nuts in fabricated frames, brackets, fixings and general building assemblies.
- Furniture Assembly: Helps spread load around threaded fixings used in timber, metal and mixed-material furniture.
- Repair Work: Useful where an existing fixing hole needs a larger bearing area than a standard flat washer provides.
- Outdoor Structures: Supports exposed fixings on suitable fabricated frames, brackets and exterior equipment.

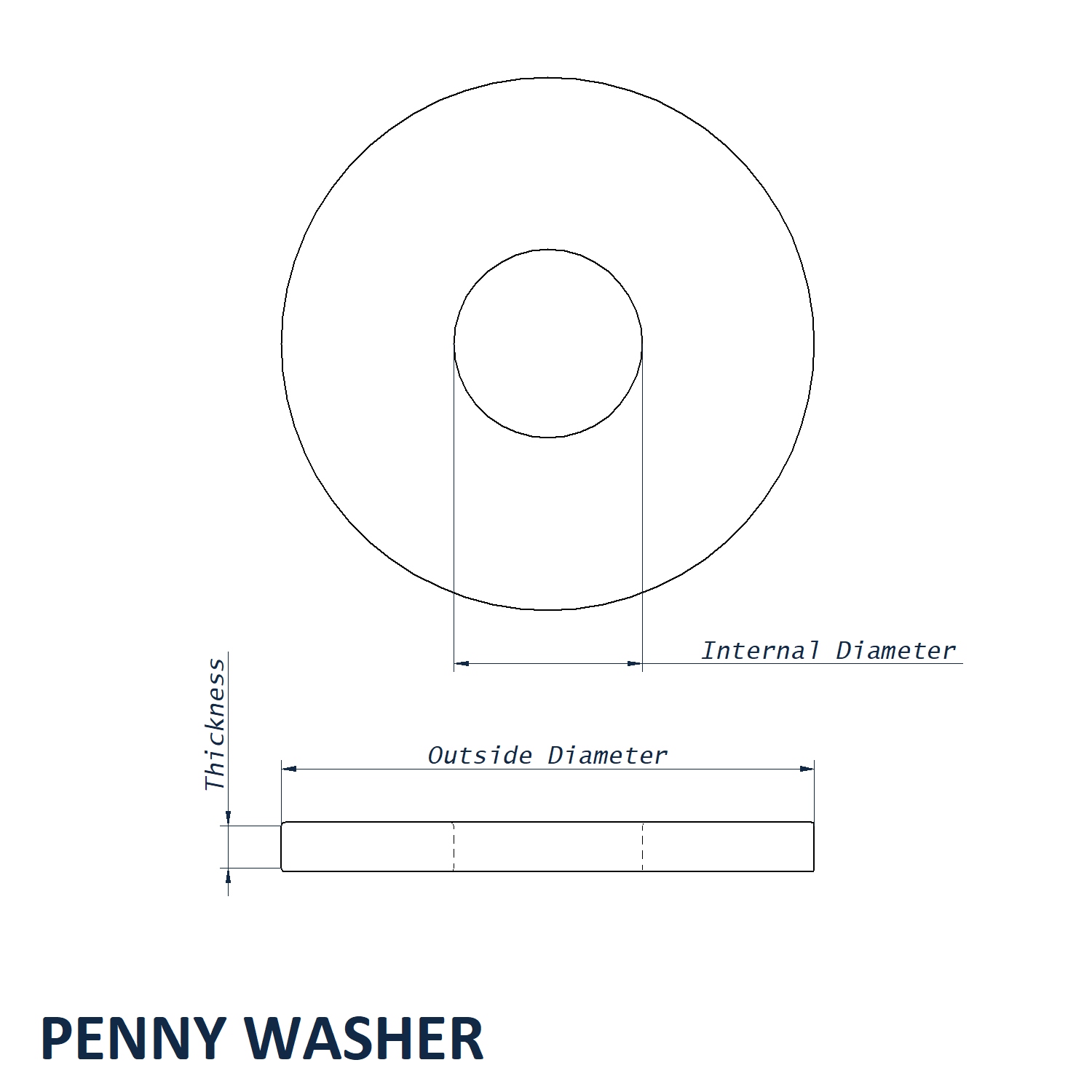

M8 x 35mm Stainless Steel Penny Washer Dimensions
- Size: M8
- Internal Diameter: 8.4mm
- Outside Diameter: 35.0mm
- Thickness: 1.50mm
- Material: A4 Stainless Steel
Key Benefits
- A4 Stainless Steel provides increased corrosion resistance for marine, outdoor and more demanding environments.
- The wider range includes A2 and A4 Stainless Steel options across multiple metric sizes and outside diameters.
- 35.0mm outside diameter provides a larger bearing area than a standard flat washer.
- Can help reduce the risk of fastener pull-through around oversized or weakened fixing holes.
See the wider Stainless Steel Penny Washers category for A2 and A4 options across M4 to M12. Technical support with washer sizing is available on 01233 713581.
