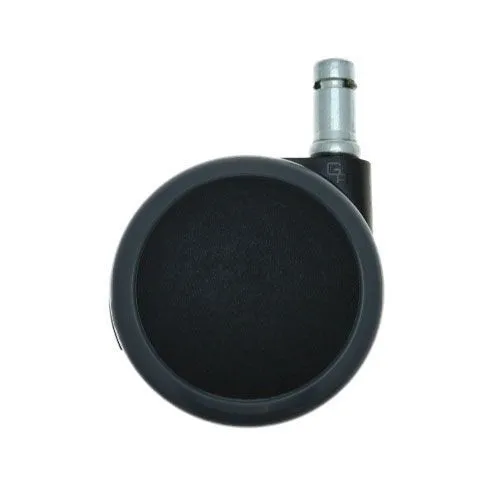

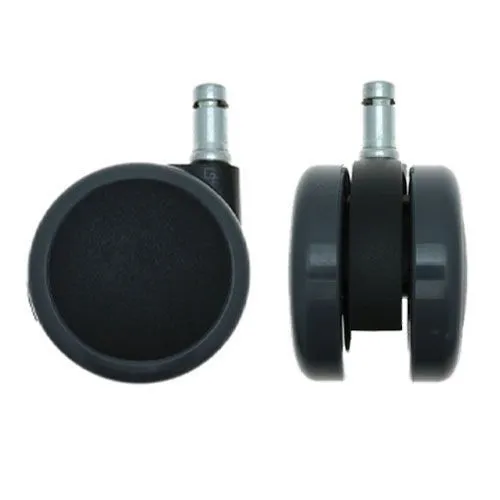

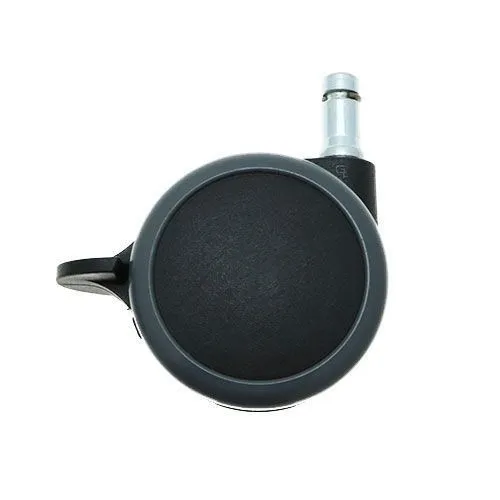

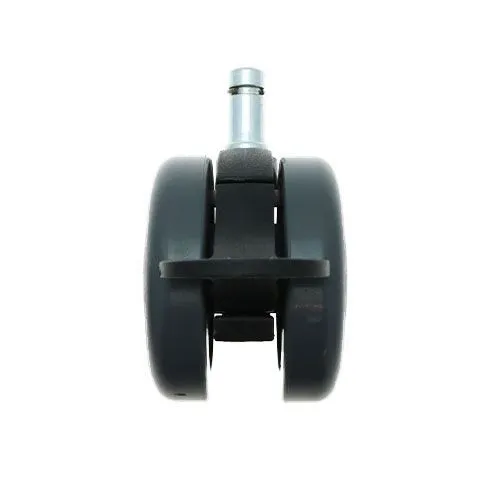

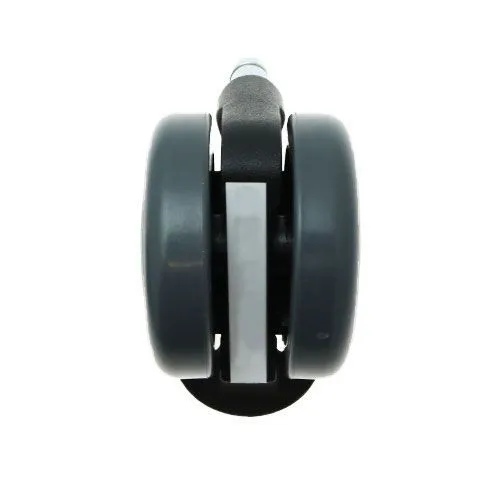

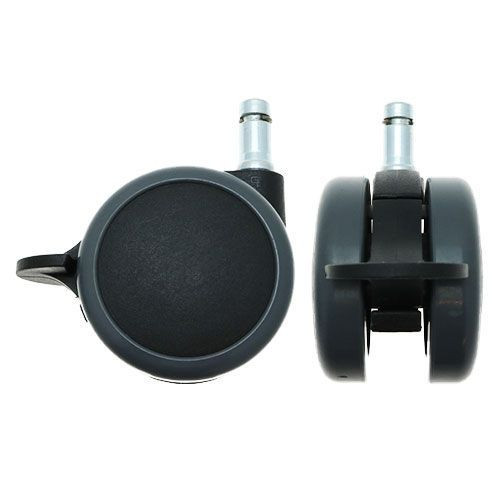

100mm Braked Conductive Stem Castor Wheel - 11mm x 22mm Stem (For Hard Floors) | 75kg
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £30.37 | £36.44 |
| 2 - 499 | £29.76 | £35.71 |
| 500 - 999 | £29.17 | £35.00 |
| 1000 - 4999 | £28.58 | £34.30 |
| 5000 - 9999 | £28.01 | £33.61 |
| 10000 + | £27.45 | £32.94 |
£36.44 / each
.png)
Product Specification
| Wheel Diameter | 100mm |
| Material | Nylon / Steel BZP |
| Stem Size | 11mm x 22mm |
| Castor Height | 113.0mm |
| Style | For Hard Floor (Conductive) |
| Braked | Braked |
| Weight Rating | 75kg |
Frequently Bought Together
Total Price: £0.00
11mm x 22mm Braked Conductive Stem Castor - 100mm Wheel | Black Nylon / Steel BZP
Developed for electronics manufacturing equipment, this 100mm stem-mounted castor uses a 11mm x 22mm fitting and Nylon / Steel BZP. The braked design matches the required operating behaviour while the wheel is specified for hard-floor static-control applications with a stated 75kg weight rating.
What Are Stem Castors?
A conductive stem caster wheel supports static-control measures while retaining the small mounting footprint of a direct stem connection.
Common Applications
- Assembly Fixtures: Supports mobile production equipment where static dissipation is required.
- Controlled Production: Provides a conductive castor for suitable mobile furniture.
- Electronics Manufacturing: Supports carts and fixtures used around sensitive electronic components.
- Technical Trolleys: Provides movement for carts used in ESD-conscious environments.

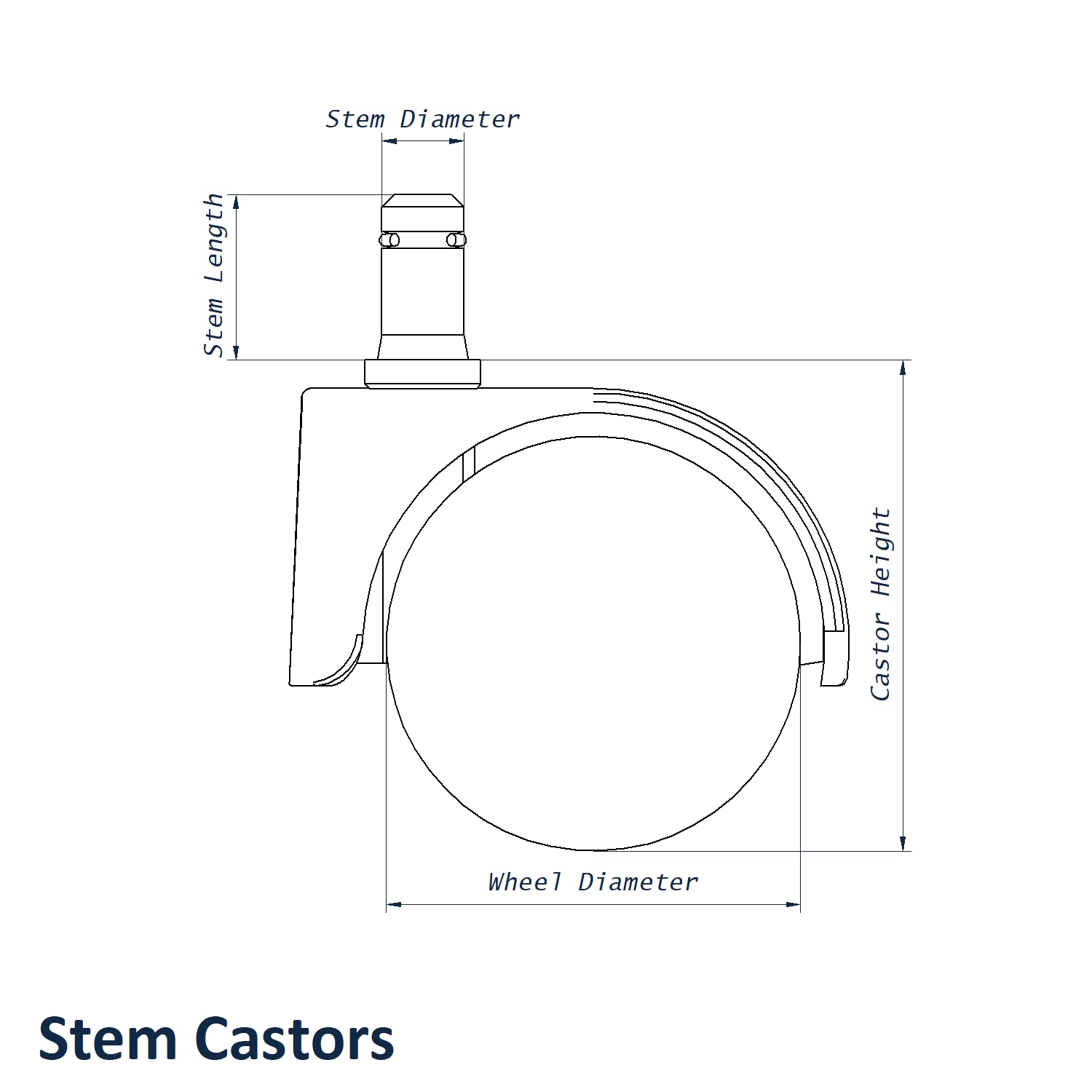

11mm x 22mm 100mm Braked Conductive Stem Castor Dimensions
- Stem Size: 11mm x 22mm
- Wheel Diameter: 100mm
- Castor Height: 113.0mm
- Style: For Hard Floor (Conductive)
- Braked: Braked
- Weight Rating: 75kg
- Material: Nylon / Steel BZP
- Colour: Black
Key Benefits
- Braked configuration provides parking control when the item needs to remain stationary.
- The supplied 75kg weight rating supports load-based product selection.
- Push-fit replacement is straightforward when the receiving bore matches the stated stem dimensions.
- 100mm wheel diameter matches the uploaded product specification.
Browse the wider Push Fit Stem Castors range for furniture, equipment and specialist applications. For help selecting a stem size or wheel configuration, contact our technical sales team on 01233 713581.
