Tapered Fixed Rubber Feet - ADJ033
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £6.58 | £7.90 |
| 2 - 50 | £6.58 | £7.90 |
| 51 - 100 | £5.67 | £6.80 |
| 101 - 250 | £4.87 | £5.84 |
| 251 - 500 | £4.38 | £5.26 |
| 501 + | £3.94 | £4.73 |
Product Specification
| Thread Size | M12 |
| Stud Length | 70mm |
| Base Diameter | 40mm |
| Base Height | 16mm |
| Style | Tapered |
| Material | Rubber & BZP Steel |
Frequently Bought Together
Total Price: £0.00

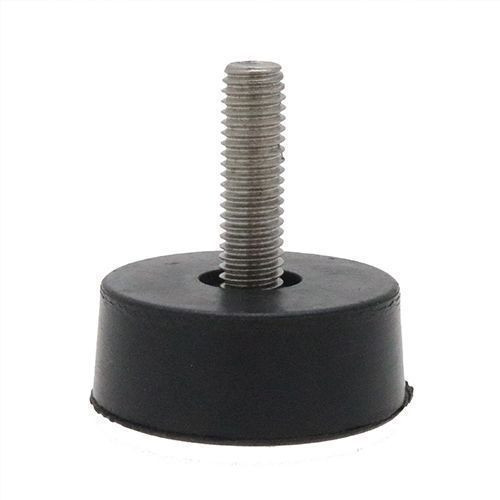

M12 x 70mm Tapered Fixed Rubber Foot | 40mm Base Diameter | Rubber & BZP Steel
These M12 x 70mm tapered fixed rubber feet feature a 40mm base diameter, 16mm base height and Rubber & BZP Steel construction, developed for automation cells and larger equipment frames where the extended M12 stud gives maximum fixing reach in this tapered rubber foot range.
The 70mm BZP steel stud is useful where the foot must pass through deep sections, packers or layered mounting hardware. The rubber base remains compact and helps create steady contact beneath industrial structures.
Common Applications
- Automation cell frames with deep mounting sections
- Large equipment bases using packers or lock nuts
- Industrial support frames needing extended M12 thread length

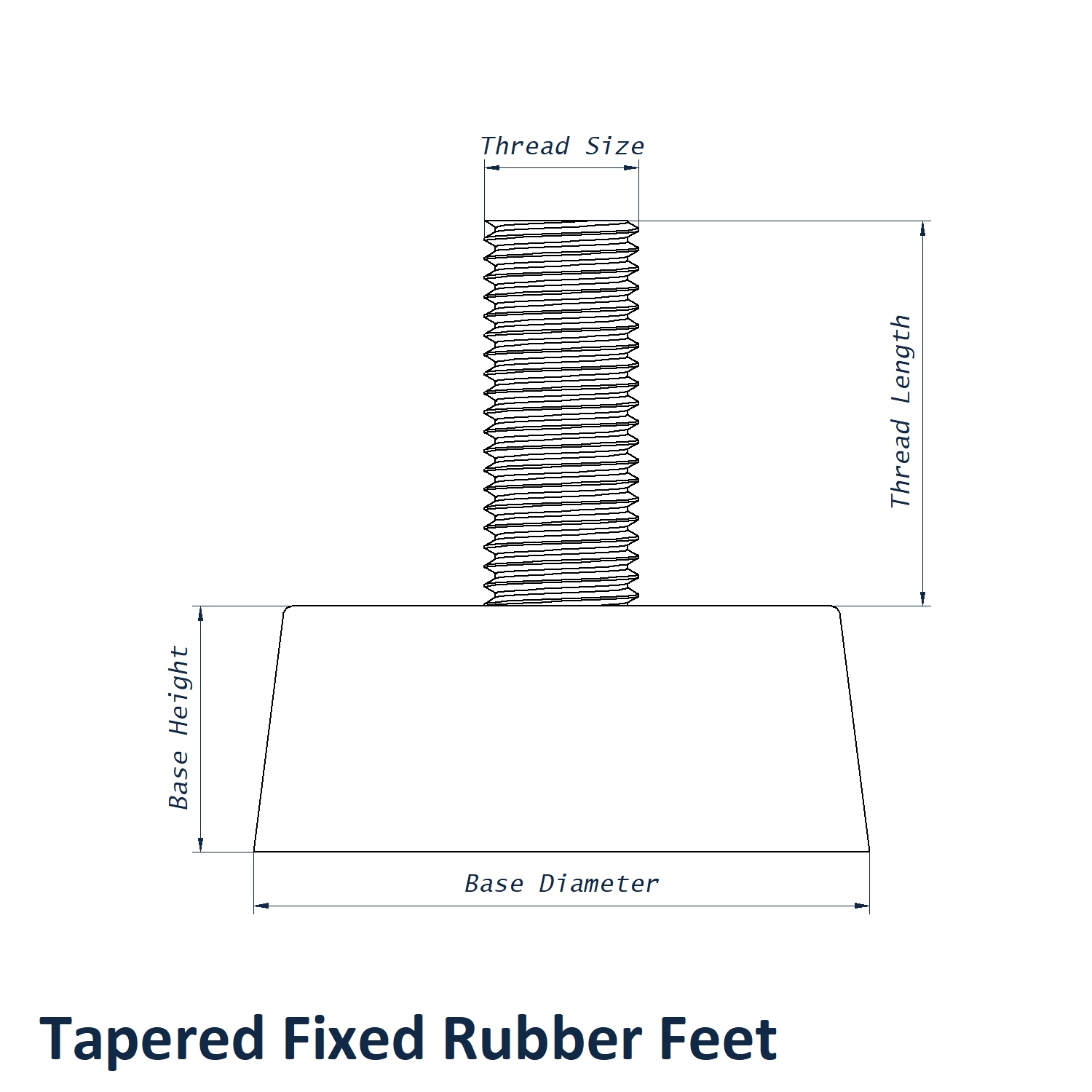

M12 x 70mm Tapered Fixed Rubber Foot Dimensions
- Base Diameter: 40mm
- Thread Size: M12
- Stud Length: 70mm
- Base Height: 16mm
- Style: Tapered
- Material: Rubber & BZP Steel
- Colour: Black
Selection Notes
Use the 70mm stud for deeper assemblies where a shorter M12 option may not provide enough exposed thread after installation.
Compatible Fixings
A suitable T Nut can support installations into non-threaded base materials during machinery or frame construction.
View the full tapered fixed rubber feet range to compare all stud lengths.
