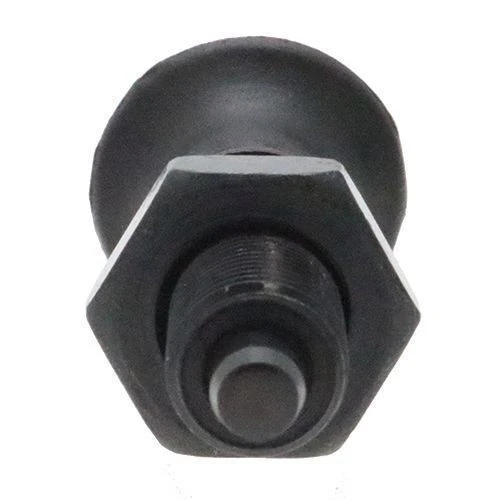

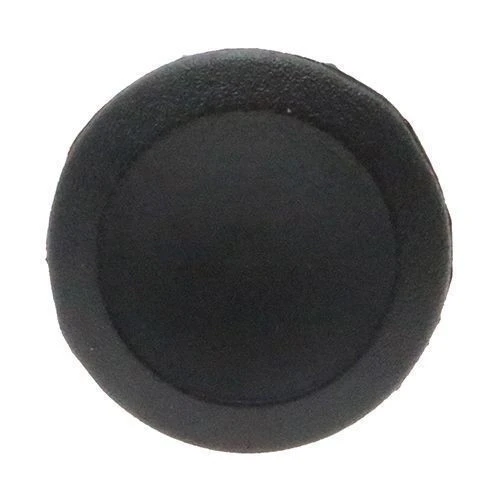

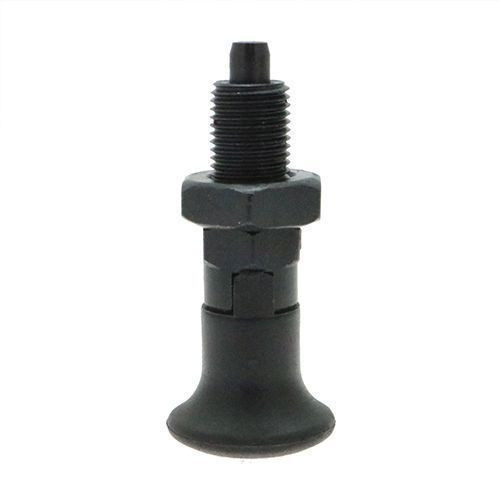

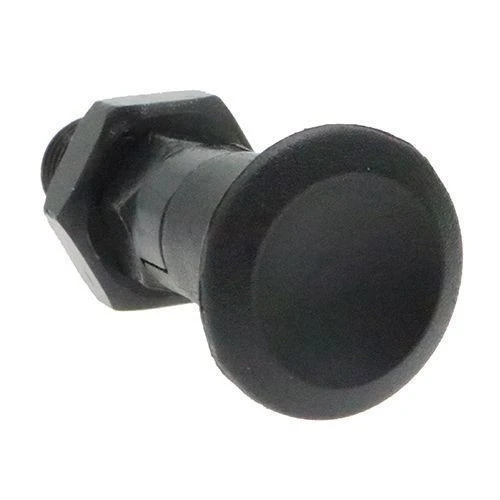

Thermoplastic Index Plungers - IND001
Product code:
IND001
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £5.28 | £6.34 |
| 25 - 49 | £4.84 | £5.81 |
| 50 - 99 | £4.40 | £5.28 |
| 100 - 499 | £3.97 | £4.76 |
| 500 + | £3.70 | £4.44 |
£6.34
/ each
Quantity:

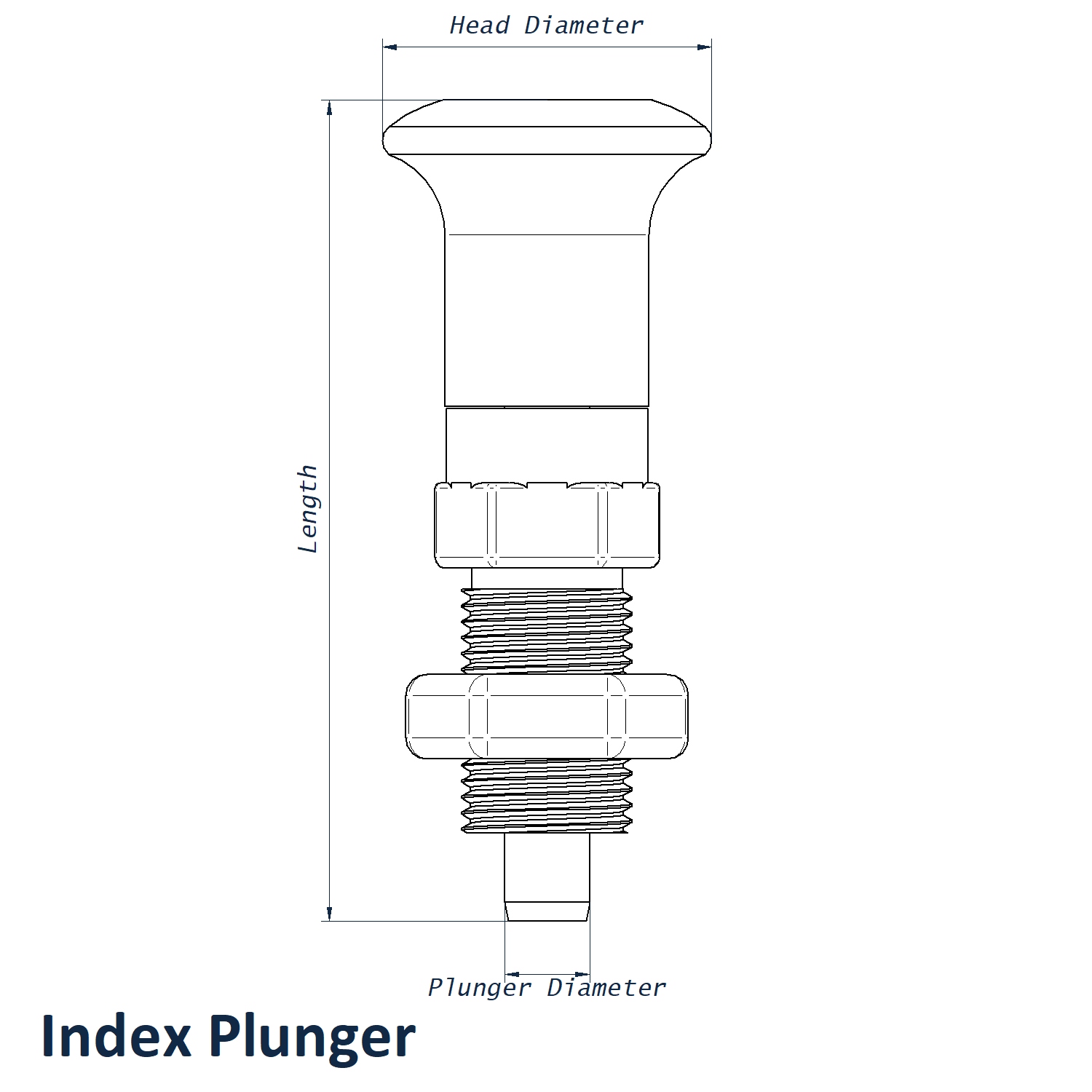

Product Specification
| Head Diameter | 21mm |
| Thread Size | M10 x 1mm |
| Plunger Diameter | 5mm |
| Locking Rest Position | No |
| Material | Nylon & Steel |
| Length | 45mm |
| Colour | Black |
| Force For Full Retraction | 20N |
| Initiating Force | 8N |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This thermoplastic index plunger has a length of 45mm and a head diameter of 21mm. It has a M10 x 1mm thread size and a 5mm plunger diameter. It is available in a burned steel coloured Thermoplastic & Steel. Does it feature a locking rest position? No
Our Thermoplastic Index Plungers are a cost-effective option for indexing applications, made from a combination of thermoplastic and steel. They feature a threaded body for easy installation into a female threaded hole and come with or without a locking rest position.
These plungers are available in a range of sizes and head diameters, from 21mm to 31mm, and are commonly used as positioning elements or locking mechanisms. With their low cost and versatile design, Thermoplastic Index Plungers are a great choice for projects where budget is a concern.
Our Thermoplastic Index Plungers are a cost-effective option for indexing applications, made from a combination of thermoplastic and steel. They feature a threaded body for easy installation into a female threaded hole and come with or without a locking rest position.
These plungers are available in a range of sizes and head diameters, from 21mm to 31mm, and are commonly used as positioning elements or locking mechanisms. With their low cost and versatile design, Thermoplastic Index Plungers are a great choice for projects where budget is a concern.
