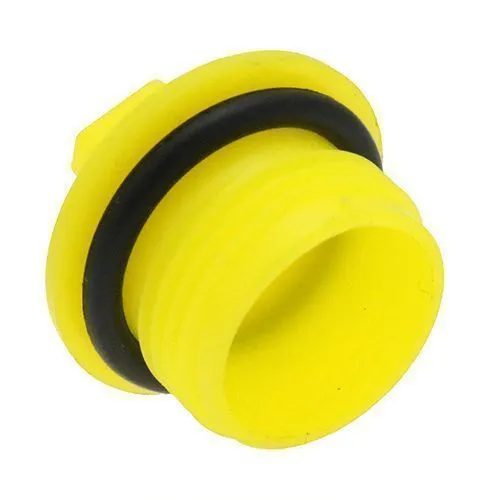

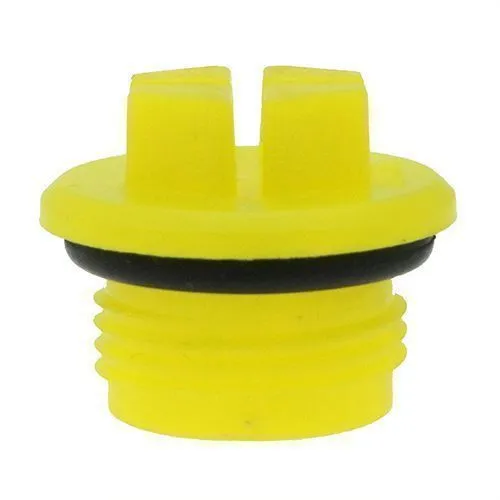

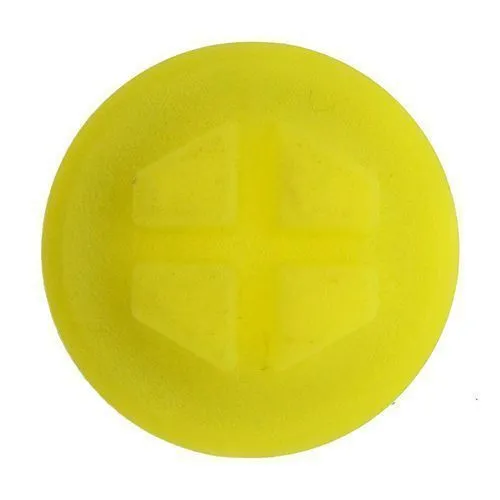

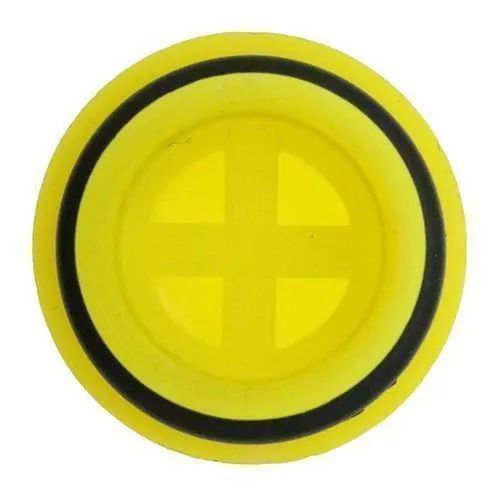

1 1/16in (12TPI) UNF Threaded Sealing Plug (Quick Fit Connector) - Yellow | HDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.48 | £0.58 |
| 2 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.41 | £0.49 |
| 500 - 999 | £0.38 | £0.45 |
| 1000 + | £0.34 | £0.41 |
Product Specification
| Thread Type | UNF |
| Thread Size | 1 1/16" x 12 |
| Head Size | 35.0mm |
| Material | HDPE |
| Length | 22.6mm |
| Colour | Yellow |
Frequently Bought Together
Total Price: £0.00
1 1/16" x 12 UNF Threaded Sealing Plug | Yellow HDPE
Ideal for fine-thread protection, this 1 1/16" x 12 UNF sealing plug helps keep machined ports cleaner before final assembly or pressure testing. It is a practical UNF thread protector for temporary protection.
Its bright yellow colour makes protected UNF ports easy to spot during quality checks, packing and maintenance inspections. This version combines a 22.6mm length with a 35.0mm head size, giving a clear size reference for matching against the threaded port.
Common Applications
- Pipe fitting and manifold protection
- Clean storage of spare threaded components
- Maintenance work on pumps and compressors
- Protecting open ports during assembly

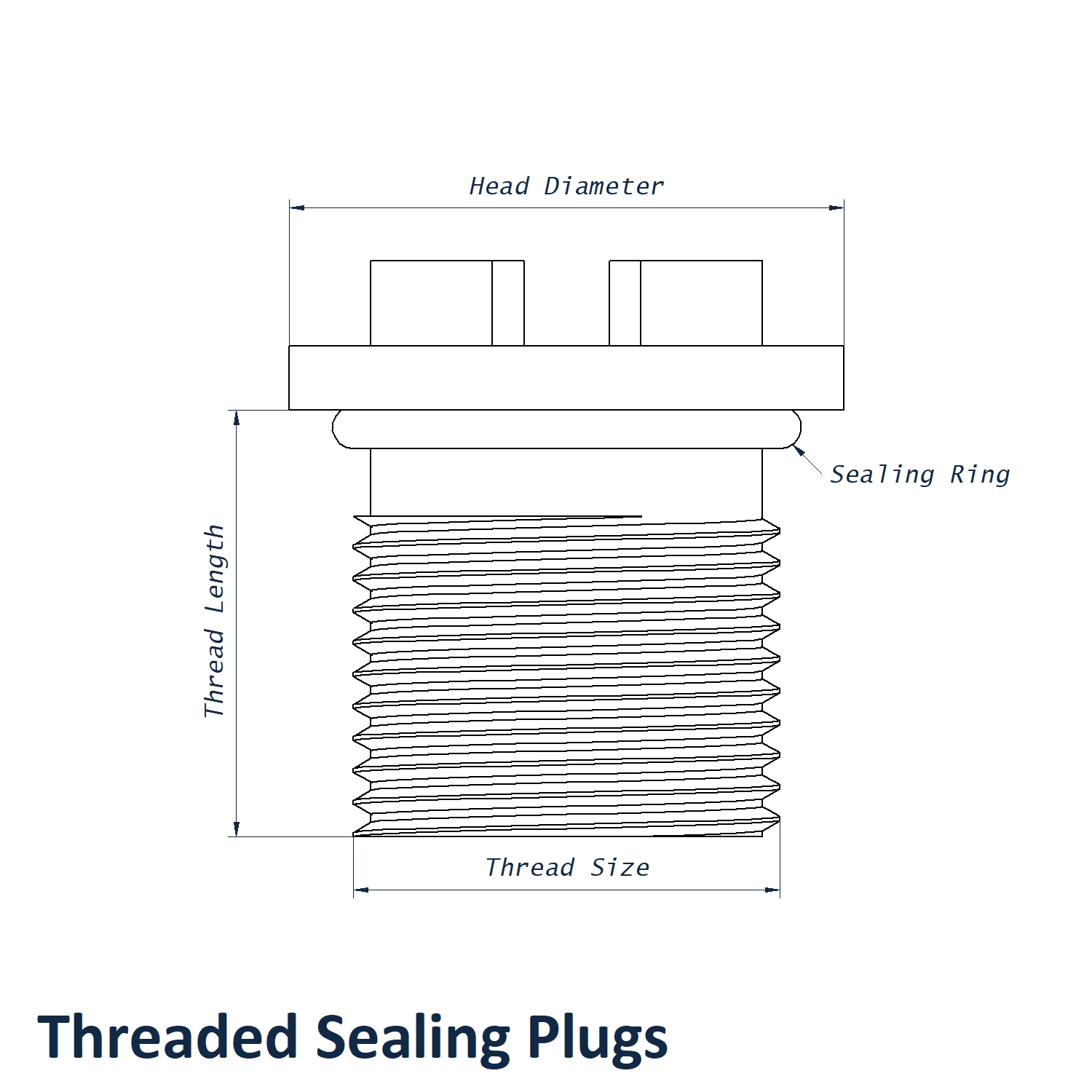

1 1/16" x 12 UNF Threaded Sealing Plug Dimensions
- Thread Size: 1 1/16" x 12
- Length: 22.6mm
- Head Size: 35.0mm
- Colour: Yellow
- Material: HDPE
- Thread Type: UNF
Threaded Sealing Plug Selection
For best results, match the plug to the thread form shown on the fitting or port. These yellow sealing plugs are intended for temporary protection and sealing, especially where threads need to remain clean before installation or testing.
View our full Threaded Sealing Plugs range.
Product Support and Trade Orders
For advice on BSP, UNF or Metric thread selection, contact the Vital Parts team on 01233 713581. We can help confirm sizing, discuss larger quantities and support repeat purchasing for maintenance or production use.
