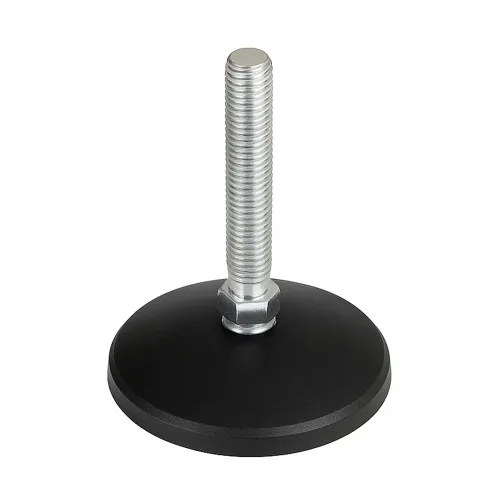

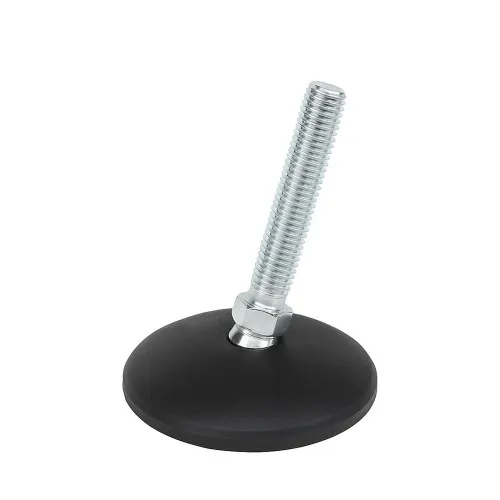

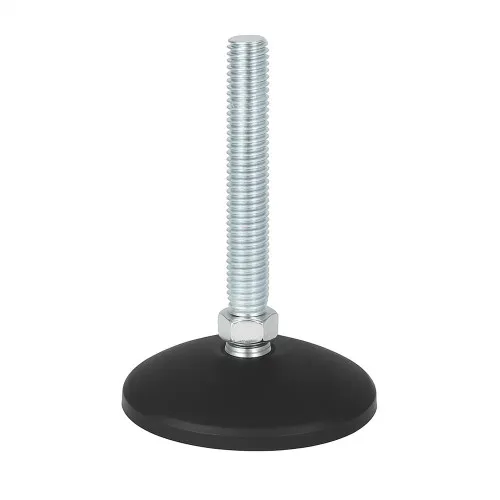

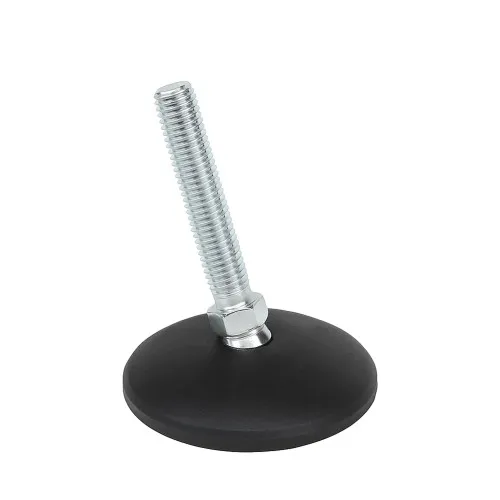

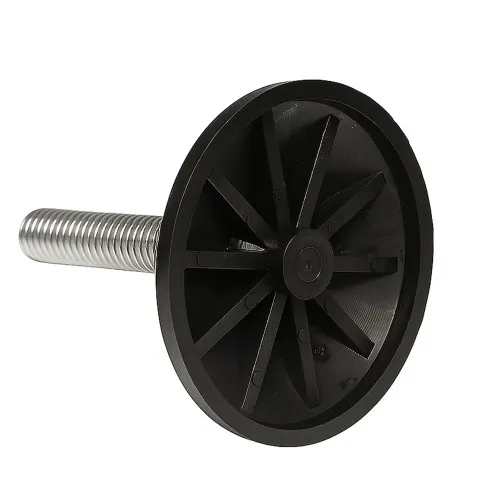

Tilting Adjustable Feet - ADJ147
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £3.59 | £4.31 |
| 25 - 49 | £3.06 | £3.67 |
| 50 - 99 | £2.33 | £2.80 |
| 100 + | £1.80 | £2.16 |
Product Specification
| Thread Size | M10 |
| Stud Length | 45mm |
| Base Diameter | 60mm |
| Style | Standard |
| Weight Rating | 470kg |
| Colour | Black |
| Base Material | Nylon |
| Stem Material | BZP |
| Tilt Angle | 20° |
Frequently Bought Together
Total Price: £0.00
M10 x 45mm Standard Tilting Adjustable Foot | 60mm Base Diameter | 470kg Weight Rating | Nylon Base
This standard tilting adjustable foot is built for fabricated steel frames, combining the M10 thread size with a 45mm stud for straightforward installation.
The 60mm base diameter provides a stable contact area for the load rating shown in the specification. The standard design supports flexible installation where angled contact is needed. In practical terms, it gives fabricated steel frames a replaceable support point that can be adjusted with ordinary tooling.
Common Applications
- Fabricated frames requiring standard support
- Welded machine bases
- Steel work tables
- Equipment skids

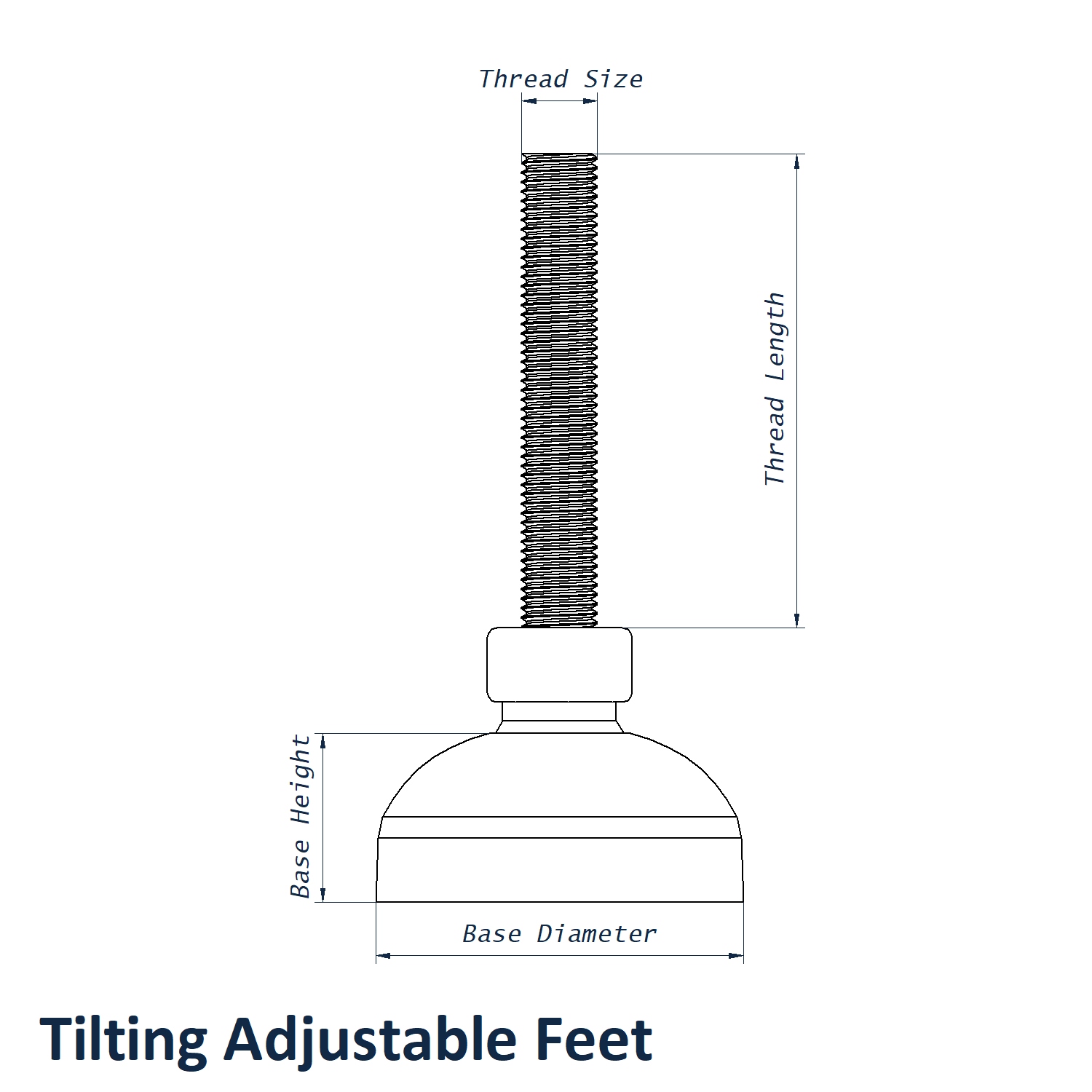

M10 x 45mm Standard Tilting Adjustable Foot Dimensions
- Base Diameter: 60mm
- Thread Size: M10
- Stud Length: 45mm
- Weight Rating: 470kg
- Tilt Angle: 20°
- Style: Standard
- Base Material: Nylon
- Stem Material: BZP
- Colour: Black
Commonly Paired with Tilting Adjustable Feet - E Nuts for a secure fit
Perfect for Tilting or Articulated Adjustable Feet. Self-locking design prevents loosening and increases grip in soft woods. Ideal for regular adjustments and secure fixing.
Click here to view our full range of E Nuts.
View our full range of Tilting Adjustable Feet.
