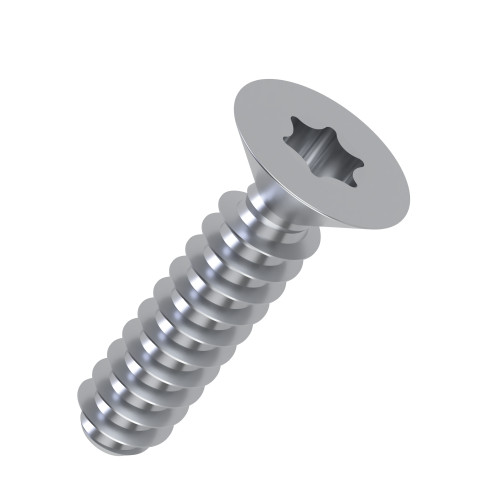

5mm x 20mm Torx Countersunk Screw For Soft Plastics (PT30) | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.37 | £0.44 |
| 50 - 99 | £0.22 | £0.26 |
| 100 - 249 | £0.15 | £0.18 |
| 250 - 499 | £0.11 | £0.13 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 - 4999 | £0.07 | £0.09 |
| 5000 + | £0.06 | £0.07 |
Product Specification
| Thread Size | 5.0mm |
| Thread Length | 20mm |
| Material | Steel BZP |
| Head Diameter | 9.3mm |
| Head Height | 3.40mm |
| Drive | T20 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
5.0mm x 20mm Torx Countersunk PT30 Screw For Soft Plastics | Steel BZP
This 5.0mm x 20mm Torx Countersunk PT30 screw is engineered for fastening into softer plastics and thermoplastic components. The PT30 thread form is designed to create strong engagement in plastic substrates while the countersunk head provides a flush installed finish. Featuring a 9.3mm head diameter, this specific size is suited to applications requiring reliable retention and controlled assembly performance.
Manufactured from bright zinc plated steel, this fixing offers an economical fastening solution for general engineering and indoor applications. The screw incorporates a 3.40mm head height and T20 Torx drive which helps improve torque transfer during installation. The 5.0mm thread size combined with the 20mm length creates a variant suited to its own assembly and holding requirements.
Common Applications
- Plastic housings and enclosures
- Moulded component assemblies
- Consumer product manufacture
- Electrical and electronic equipment

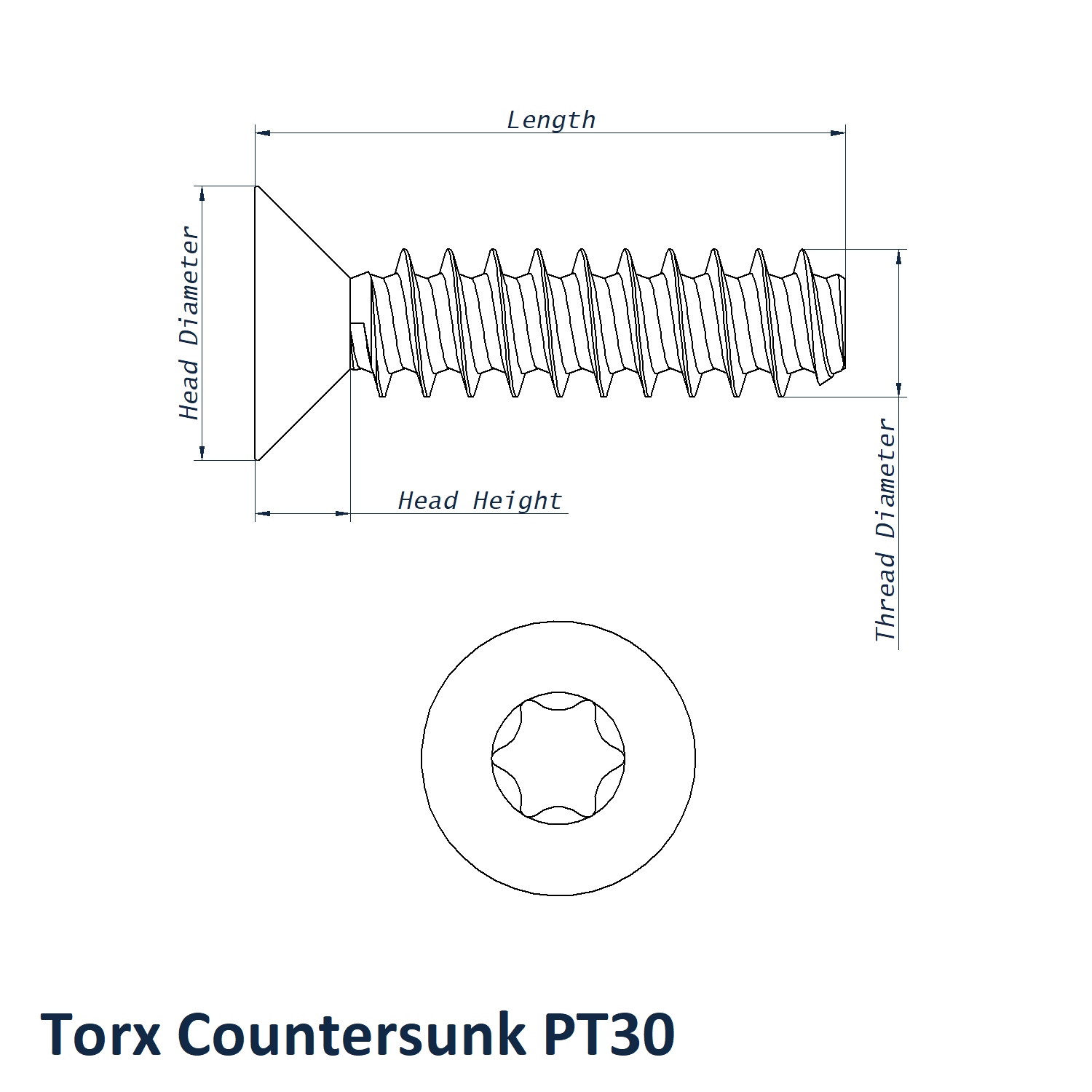

5.0mm Torx Countersunk PT30 Screw For Soft Plastics Dimensions
- Thread Size: 5.0mm
- Thread Length: 20mm
- Head Diameter: 9.3mm
- Head Height: 3.40mm
- Drive: T20
- Material: Steel BZP
- Head Style: Countersunk
View our full Screws for Plastic Range or browse our Fastener collection.
