3mm x 16mm Torx Flanged Screw for Soft Plastics (PT30) | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.23 | £0.27 |
| 50 - 99 | £0.13 | £0.16 |
| 100 - 249 | £0.09 | £0.11 |
| 250 - 499 | £0.07 | £0.08 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
£0.27 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 16mm |
| Material | Steel BZP |
| Head Diameter | 6.0mm |
| Head Height | 2.10mm |
| Drive | T10 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00

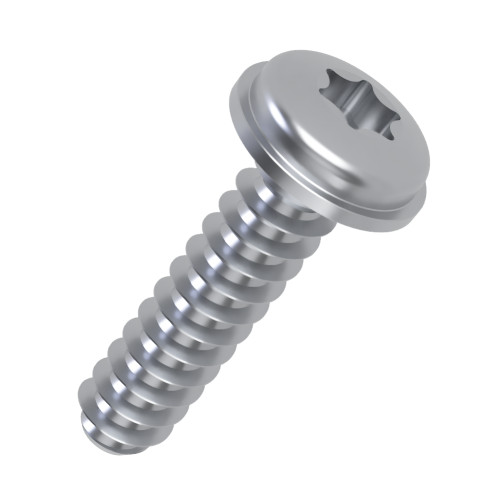

3mm x 16mm Torx Flanged PT30 Screw for Soft Plastics | Bright Zinc Plated Steel
This 3mm x 16mm Torx Flanged PT30 Screw is intended for light industrial plastic assemblies. It combines Bright Zinc Plated Steel, a T10 Torx recess and specialist plastic thread geometry with a broad flange that spreads clamping pressure across the component.
What Are Torx Flanged PT30 Screws?
PT30 Torx Flanged Screws use a narrow 30° thread profile to form a mating thread in plastic by displacement rather than cutting. The flange increases the bearing area beneath the head which can help reduce localised pressure around the fixing point.
Common Applications
- Lighting Products: Fastens moulded plastic bezels, covers and housings where a broad bearing surface is beneficial.
- Manufactured Plastic Parts: Supports repeatable assembly of injection-moulded components with correctly designed pilot holes.
- Plastic Enclosures: Fastens covers and panels while the wide flange spreads bearing pressure over the enclosure surface.
- Appliance Housings: Provides a dedicated plastic fastening method for covers, panels and moulded appliance components.

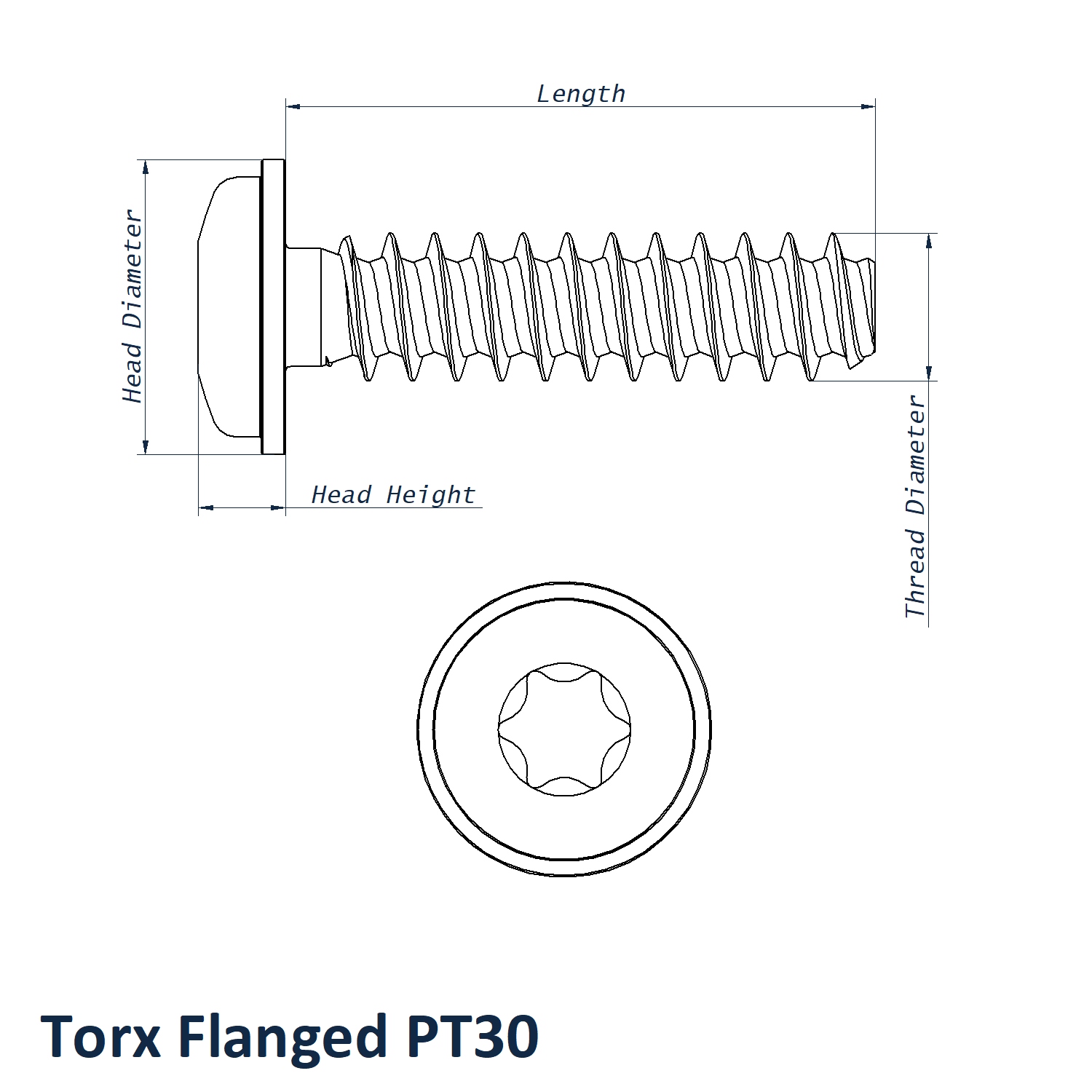

3mm x 16mm Torx Flanged PT30 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 16mm
- Head Diameter: 6.0mm
- Head Height: 2.10mm
- Drive: T10
- Material: Steel BZP
- Head Style: Flanged
Key Benefits
- 6.0mm head diameter gives the Flanged head a wider bearing surface than a standard Pan head.
- T10 Torx drive provides positive engagement and efficient torque transfer.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor plastic assemblies.
- 3mm thread size and 16mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Torx Flanged PT30 Screw range. Our Engineering Guide to Screws for Plastic explains thread forming, 30° and 45° profiles, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
