4mm x 10mm Torx Flanged Screw for Soft Plastics (PT30) | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.23 | £0.28 |
| 50 - 99 | £0.14 | £0.17 |
| 100 - 249 | £0.09 | £0.11 |
| 250 - 499 | £0.07 | £0.08 |
| 500 - 999 | £0.06 | £0.07 |
| 1000 - 4999 | £0.05 | £0.06 |
| 5000 + | £0.03 | £0.04 |
£0.28 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 10mm |
| Material | Steel BZP |
| Head Diameter | 8.0mm |
| Head Height | 2.60mm |
| Drive | T20 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 10mm Torx Flanged PT30 Screw for Soft Plastics | Bright Zinc Plated Steel

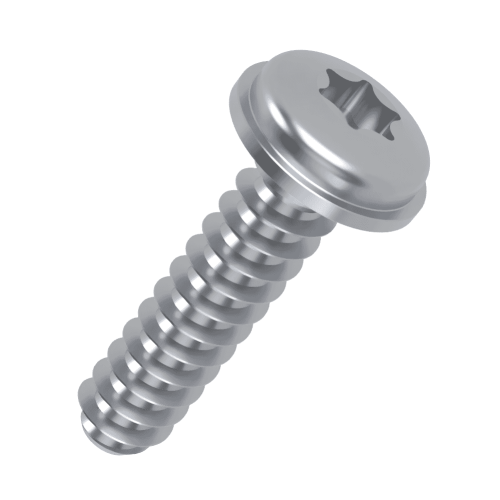

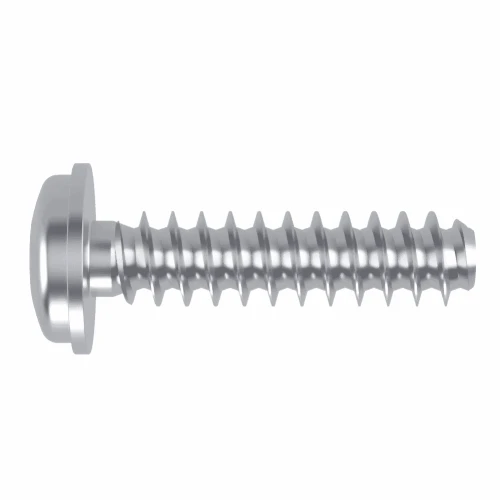

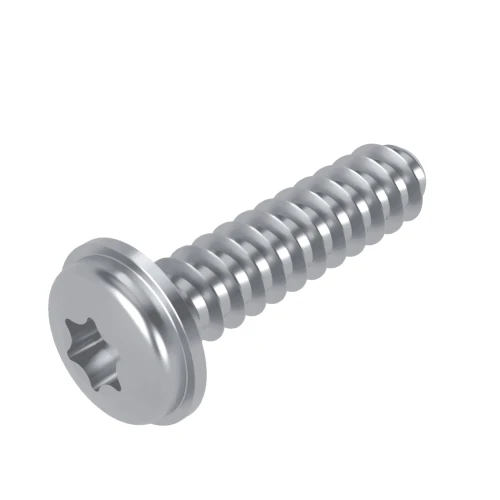

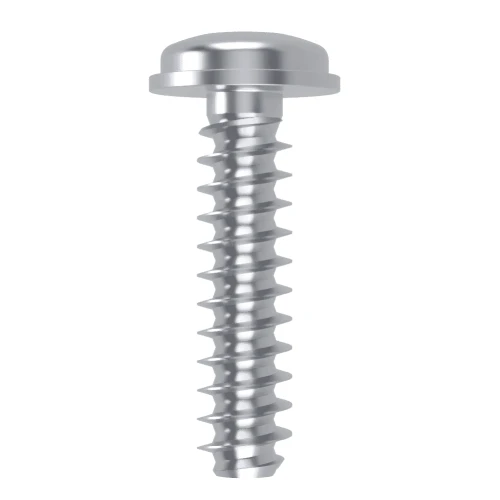

This 4mm x 10mm Torx Flanged PT30 Screw is intended for office equipment and plastic casings. It combines Bright Zinc Plated Steel, a T20 Torx recess and specialist plastic thread geometry with a broad flange that spreads clamping pressure across the component.
What Are Torx Flanged PT30 Screws?
PT30 Torx Flanged Screws use a narrow 30° thread profile to form a mating thread in plastic by displacement rather than cutting. The flange increases the bearing area beneath the head which can help reduce localised pressure around the fixing point.
Common Applications
- Control Equipment: Secures plastic panels and housings used around switches, sensors and electronic controls.
- Plastic Enclosures: Fastens covers and panels while the wide flange spreads bearing pressure over the enclosure surface.
- Industrial Equipment: Secures plastic guards, instrument covers and housings used on machinery and control equipment.
- Retail Displays: Provides a wide-head fixing for plastic display components and point-of-sale equipment.

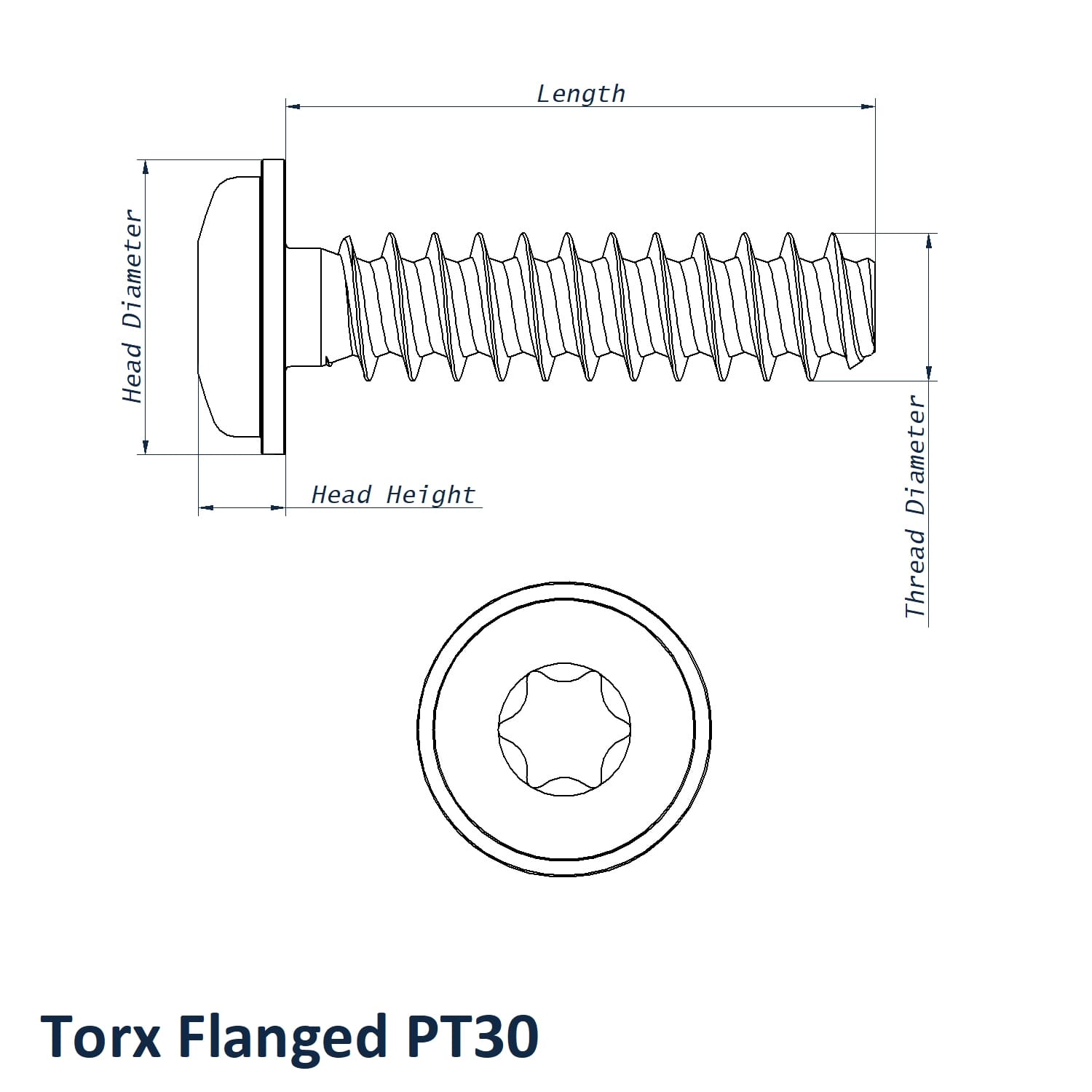

4mm x 10mm Torx Flanged PT30 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 10mm
- Head Diameter: 8.0mm
- Head Height: 2.60mm
- Drive: T20
- Material: Steel BZP
- Head Style: Flanged
Key Benefits
- Thread-forming action displaces plastic rather than producing conventional cutting swarf.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor plastic assemblies.
- 8.0mm head diameter gives the Flanged head a wider bearing surface than a standard Pan head.
- 30° PT30 thread form helps reduce radial stress in compatible soft-plastic bosses.
View the complete Torx Flanged PT30 Screws for Soft Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
