15.9mm White Universal Bushing - 3.2mm Panel (11.1mm Cable) | Nylon
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.40 | £0.48 |
| 250 - 499 | £0.31 | £0.37 |
| 500 - 999 | £0.23 | £0.28 |
| 1000 - 2499 | £0.19 | £0.23 |
| 2500 - 4999 | £0.16 | £0.19 |
| 5000 + | £0.12 | £0.15 |
Product Specification
| To Fit Hole Diameter | 15.9mm |
| Max Panel Thickness | 3.2mm |
| Max Cable Diameter | 11.1mm |
| Head Diameter | 18.5mm |
| Length | 10.30mm |
| Material | Nylon |
| Colour | White |
| Style | Standard |
Frequently Bought Together
Total Price: £0.00
15.9mm Universal Snap Fit Bush | 3.2mm Panel | White Nylon
Offering quick panel fitment, this white cable bushing is suited to 15.9mm holes and helps protect cables where frequent assembly work is required.
Locking fingers hold the bush securely once pressed into the panel, giving maintenance teams a reliable cable protection point without separate fasteners. The 11.1mm maximum cable diameter makes it suitable for selected wiring runs where the cable needs both retention and insulation.
What Are Universal Snap Fit Bushes?
These snap fit nylon bushes are used where a cable, wire or loom needs to pass through a sheet panel without being damaged by the cut edge. The locking fingers secure the bush into the panel while the head covers the visible opening.
Common Applications
- Power supply enclosures
- Cable management plates
- Access panel wiring
- OEM wiring harness protection

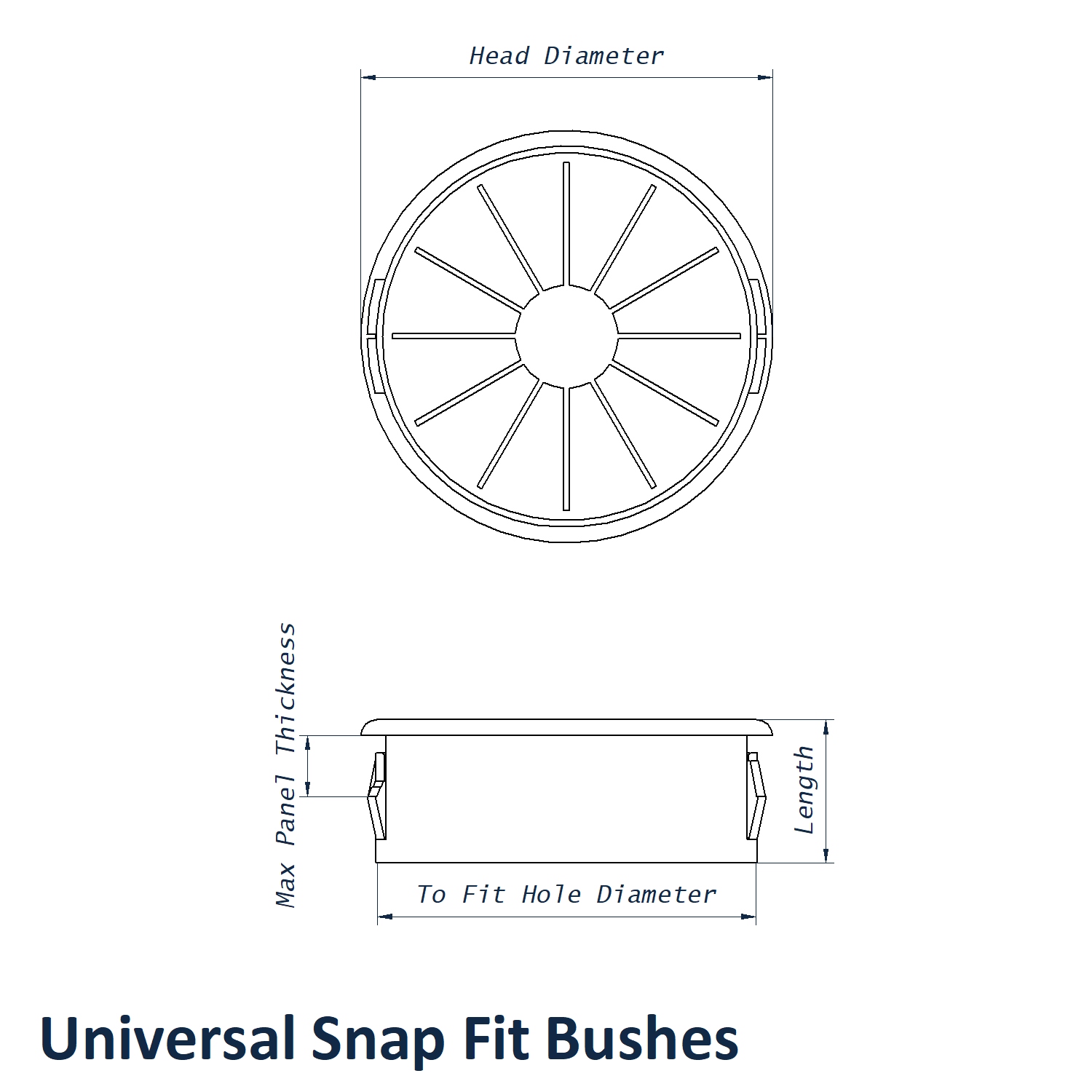

15.9mm White Universal Snap Fit Bush Dimensions
- To Fit Hole Diameter: 15.9mm
- Max Panel Thickness: 3.2mm
- Max Cable Diameter: 11.1mm
- Head Diameter: 18.5mm
- Length: 10.30mm
- Material: Nylon
- Colour: White
Universal Cable Bushing Range
For other hole sizes, cable capacities and colour options, view our full Universal Snap Fit Bushes range.
Product Support and Trade Orders
For larger orders, repeat procurement or help choosing between similar snap-fit bush sizes, contact Vital Parts on 01233 713581. We can assist with fit checks and order support.
