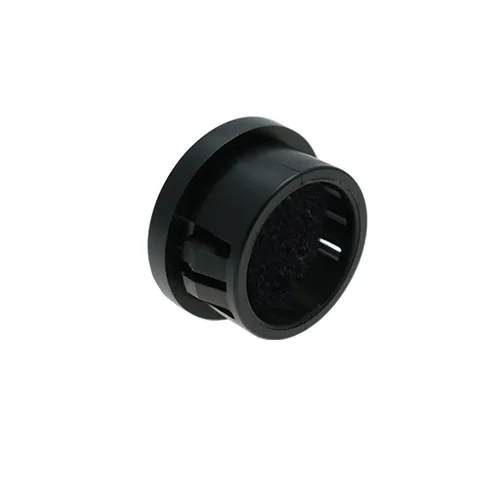

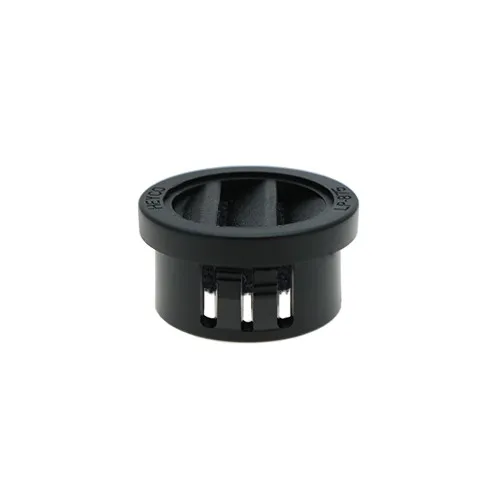

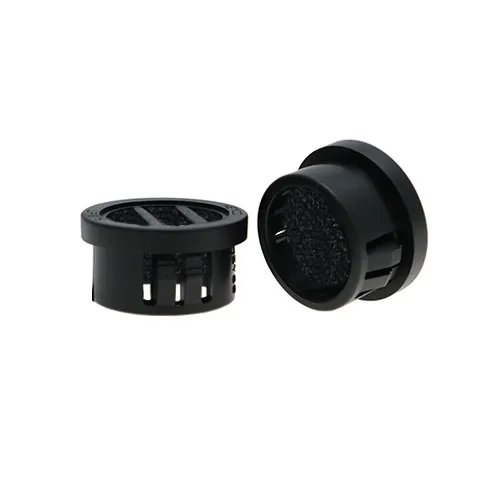

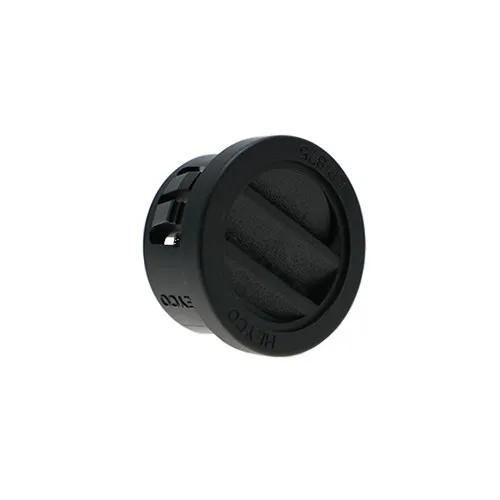

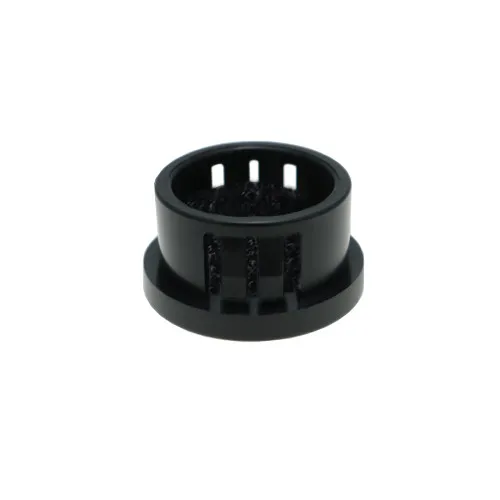

Louvered Vent Plug With Filter - VENT082-F
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 0 - 1 | £3.90 | £4.68 |
| 2 - 249 | £3.74 | £4.49 |
| 250 - 499 | £3.59 | £4.31 |
| 500 - 999 | £3.45 | £4.14 |
| 1000 - 2499 | £3.31 | £3.97 |
| 2500 + | £3.18 | £3.82 |
Product Stock

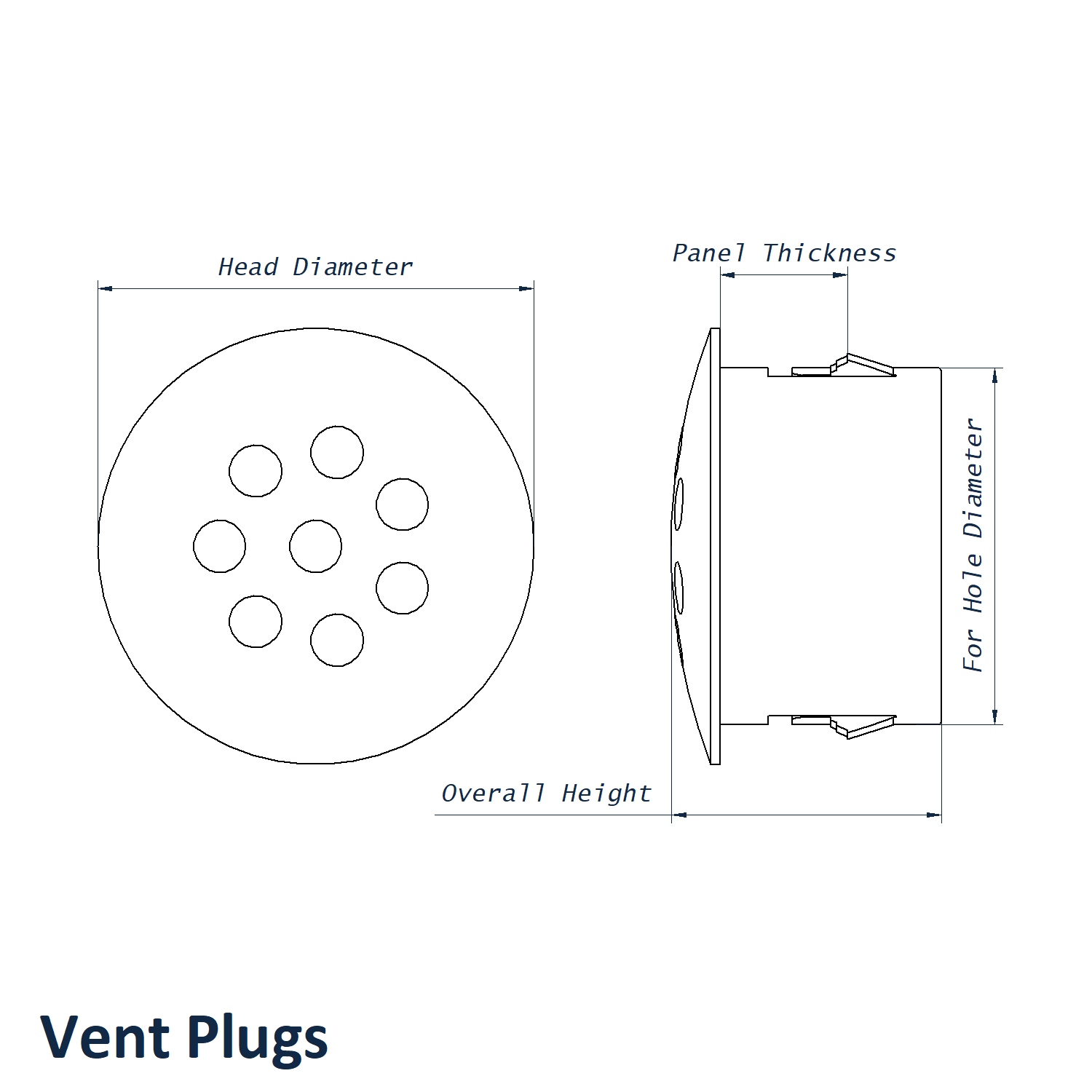

| Product Specifications | VENT082-F |
|---|---|
| To Fit Hole Diameter | 63.5mm |
| Max Panel Thickness | 6.4mm |
| Material | Nylon 66 |
| Head Diameter | 68.8mm |
| Number Of Vent Holes | N/A |
| Overall Height | 20.9mm |
| Filter | Yes |
| Louvered | Yes |
| Colour | Black |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
Louvered Vent Plugs -63.5mm To Fit Hole Diameter -6.4mm Max Panel Thickness -68.8mm Head Diameter -20.9mm Overall Height -Nylon 6/6 | Vital Parts -VENT082-F
Our Louvered Vent Plugs offer a practical and reliable solution for ventilating panels, enclosures, or housings while preventing the ingress of dust, liquid, and other contaminants. Designed for high-performance airflow control, these vent plugs are available with or without a polyurethane filter, making them an essential component for any project requiring ventilation and contamination prevention.
What are Louvered Vent Plugs?
Louvered Vent Plugs are engineered inserts that snap into a panel cutout to provide airflow while blocking unwanted contaminants. Manufactured from UL94V-2 rated Nylon 6/6, these plugs feature an integrated louvered grille design which allows air to pass through while offering physical protection against foreign objects. The filtered version includes a polyurethane insert that filters out particles as small as 30 microns, offering enhanced protection for sensitive components inside the enclosure.
Key Features:
- Manufactured from flame-retardant UL94V-2 rated Nylon 6/6
- Resistant to temperatures ranging from -40°C to 105°C
- Available with or without a 30-micron Polyurethane filter
- Snap-in mounting suitable for panel thicknesses up to 6.4mm
- Withstands push-back force of up to 35lbs (47Nm)
- Multiple locking fingers for secure fit on varying panel gauges
- Hole size compatibility from 22.2mm to 76.2mm
Key Applications and Industries
In the UK market, Louvered Vent Plugs are widely used across a variety of industries where electronic and electrical enclosures require airflow while remaining protected from environmental contaminants. These include:
- Electronics and control panels
- Telecommunications equipment
- Automotive and motor housings
- HVAC systems
- Industrial machinery
- Renewable energy enclosures
Technical Specifications
- To Fit Hole Diameter : 63.5mm
- Max Panel Thickness : 6.4mm
- Head Diameter : 68.8mm
- Overall Height : 20.9mm
- Material: Nylon 6/6 (UL94V-2 rated)
- Temperature Range: -40°C to 105°C
- Push-Back Resistance: 35lbs / 47Nm
- Filter Type (optional): Polyurethane (30-micron)
Benefits:
- Improved airflow for internal components
- Effective barrier against dust, liquids, and pests
- Quick and secure installation via snap-fit design
- Durable construction for long-term use
- Customisable airflow direction with louver orientation
- Pre-fitted filter options reduce installation time
- Suitable for a wide range of enclosure types
Why Choose Vital Parts?
Vital Parts is a trusted UK supplier of premium fasteners and industrial components, dedicated to delivering a customer-focused service with the following advantages:
- Same-Day Dispatch: Prompt and dependable shipping to keep your projects moving.
- Competitive Trade Pricing: Save more with discounted rates on bulk purchases.
- Expert Technical Support: Get guidance from our experienced team for choosing the right products and applications.
Click here to view our full Guide to Plugs & Stoppers
Whether working on a new enclosure design or retrofitting ventilation into an existing housing, our Louvered Vent Plugs provide a dependable and flexible solution. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
