22mm Washer Masking Plug - For 32mm Washer (14mm Length) | Thermoplastic Rubber
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.72 | £0.86 |
| 2 - 10 | £0.72 | £0.86 |
| 11 - 50 | £0.63 | £0.76 |
| 51 - 100 | £0.54 | £0.65 |
| 101 - 500 | £0.47 | £0.56 |
| 501 - 1000 | £0.39 | £0.47 |
| 1001 - 2500 | £0.33 | £0.40 |
| 2501 + | £0.28 | £0.34 |
Product Specification
| To Fit Hole Diameter | 22mm |
| Washer Diameter | 32mm |
| Length | 14mm |
| Internal Diameter | 19.0mm |
| Material & Colour | Thermoplastic Rubber |
Frequently Bought Together
Total Price: £0.00
22mm Hole x 32mm Washer Masking Plug | Black TPR
Suitable for production masking tasks, this black flanged plug helps protect a 22mm hole and nearby panel face with its moulded 32mm washer section. The format is useful where a coating protection plug needs to protect more than the bore alone.
The integrated washer profile is useful where standard tapered plugs would protect the hole but leave the surrounding face exposed.
Common Applications
- Masking holes in sheet metal assemblies
- Protecting counterbore and washer seating areas
- Use on frames, plates and fabricated covers
- Helping finishing teams avoid secondary scraping work

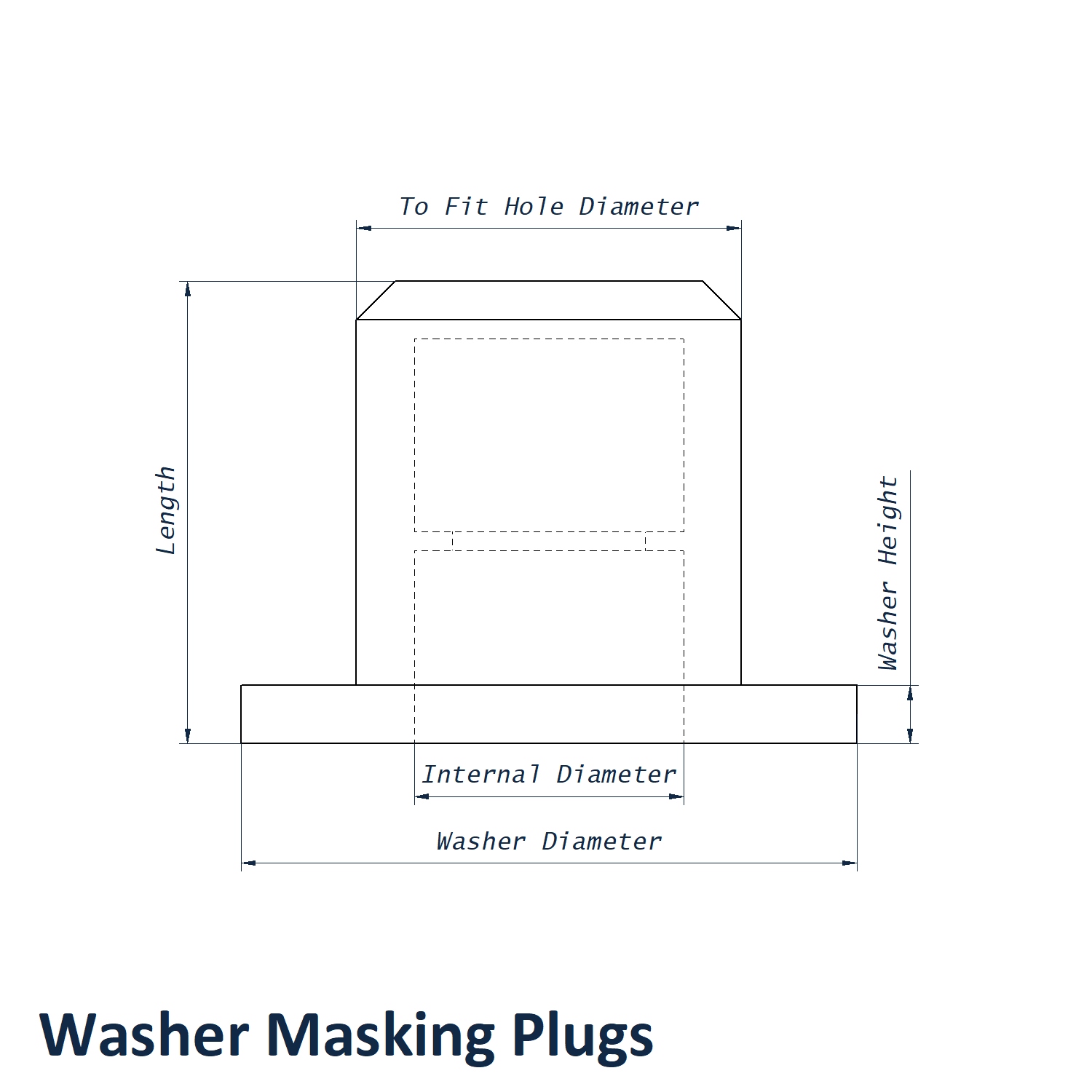

22mm Hole x 32mm Washer Masking Plug Dimensions
- To Fit Hole Diameter: 22mm
- Washer Diameter: 32mm
- Length: 14mm
- Internal Diameter: 19.0mm
- Material & Colour: Thermoplastic Rubber (TPR)
- Colour: Black
- Temperature Resistance: Up to 125°C
Washer Masking for Powder Coating
If the washer flange is not required, our Masking Plugs range includes other plug styles for powder coating and hole protection.
View our full Washer Masking Plugs range.
Product Support and Trade Orders
For help matching these masking plugs to your powder coating or finishing process, speak with the Vital Parts team on 01233 713581. Our team can assist with sizing, application guidance and repeat order support.
