30mm Washer Masking Plug - For 40mm Washer (16mm Length) | Thermoplastic Rubber
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.88 | £1.06 |
| 2 - 10 | £0.88 | £1.06 |
| 11 - 50 | £0.85 | £1.02 |
| 51 - 100 | £0.72 | £0.87 |
| 101 - 500 | £0.62 | £0.74 |
| 501 - 1000 | £0.53 | £0.63 |
| 1001 - 2500 | £0.44 | £0.53 |
| 2501 + | £0.38 | £0.46 |
Product Specification
| To Fit Hole Diameter | 30mm |
| Washer Diameter | 40mm |
| Length | 16mm |
| Internal Diameter | 27.9mm |
| Material & Colour | Thermoplastic Rubber |
Frequently Bought Together
Total Price: £0.00

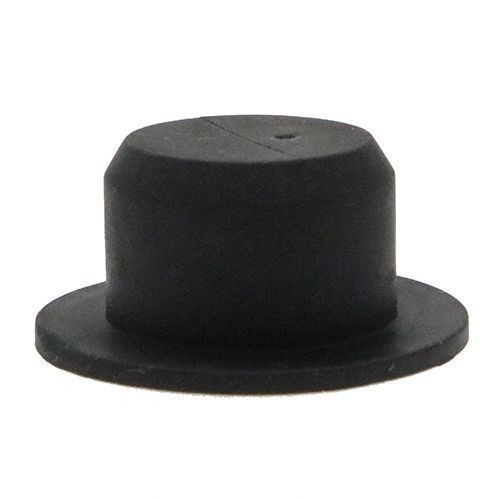

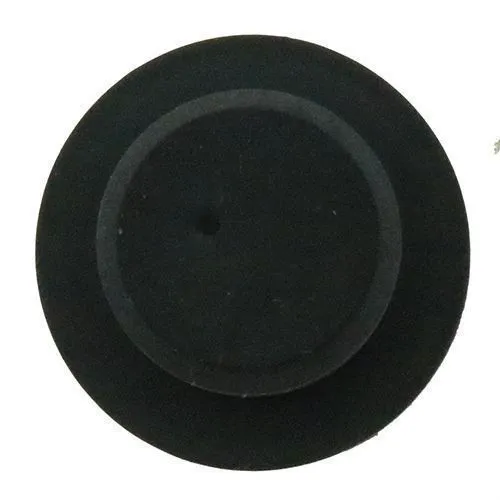

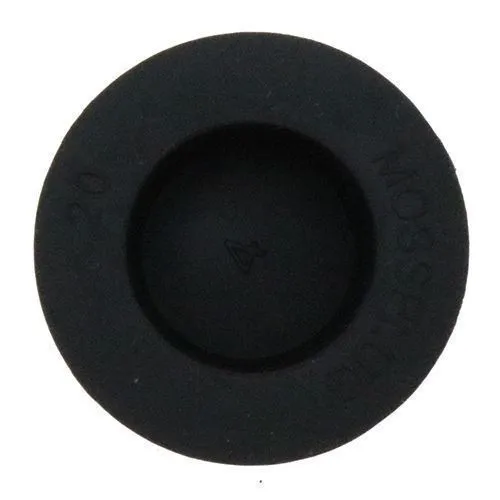

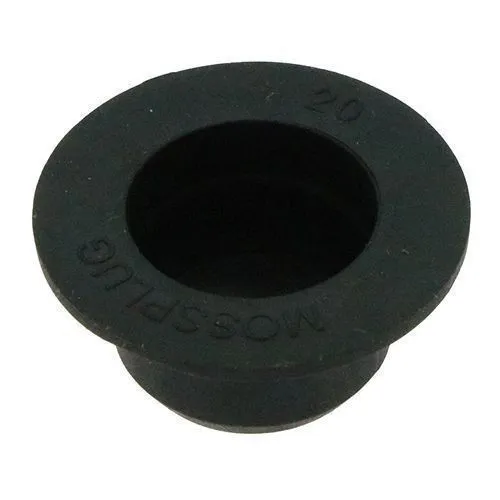

30mm Hole x 40mm Washer Masking Plug | Black TPR
Offering a practical single-piece masking solution, this black washer plug seals a 30mm opening while the integrated 40mm flange helps prevent coating build-up around the aperture. The format is useful where a dual masking plug needs to protect more than the bore alone.
The tapered body helps create a firm seal inside the hole while the flange gives extra cover against coating creep around the edge.
Common Applications
- Powder coating holes while keeping the surrounding washer face clear
- Masking threaded inserts before paint or e-coat work
- Protecting fabricated steel parts during finishing
- Preparing brackets, plates and panels for coating lines

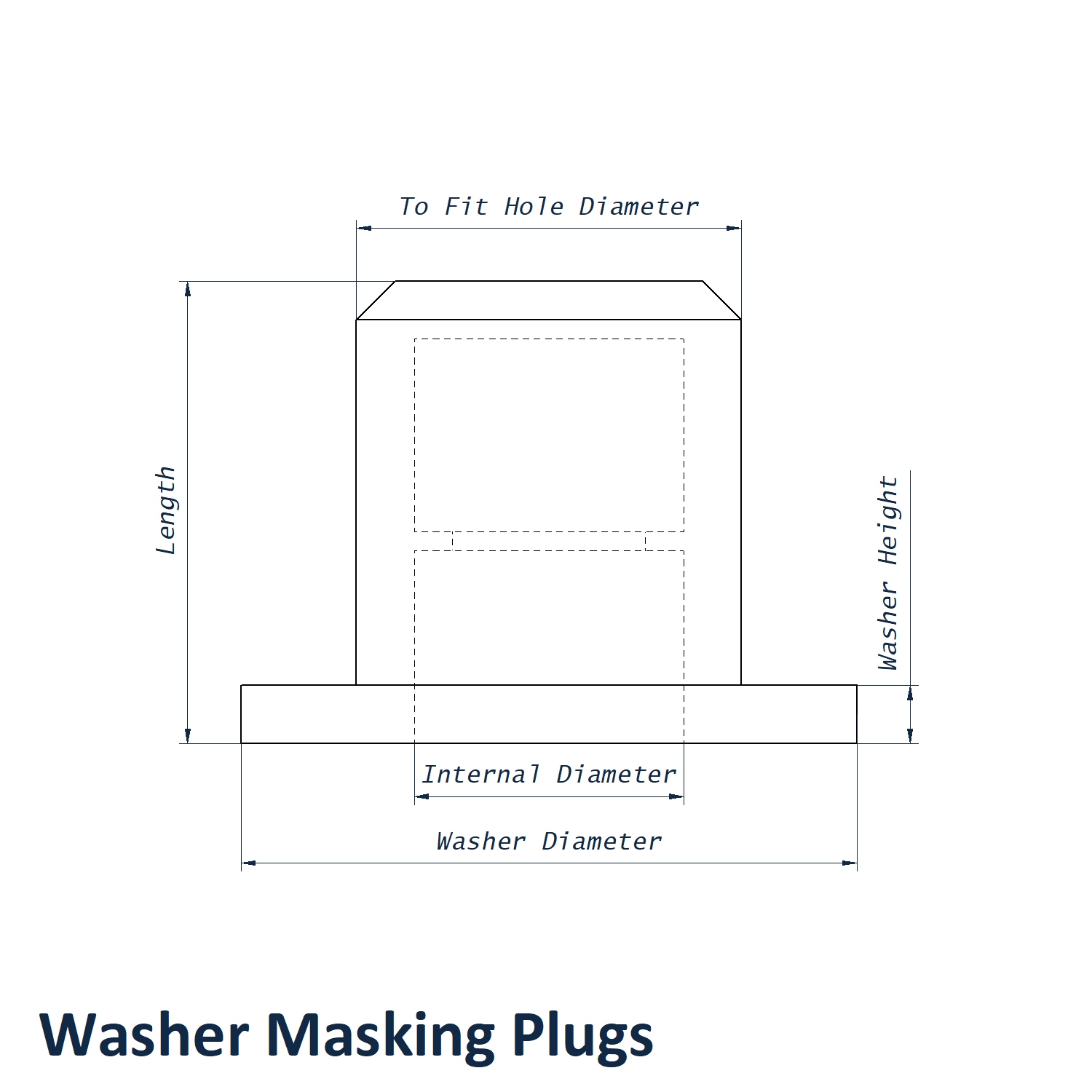

30mm Hole x 40mm Washer Masking Plug Dimensions
- To Fit Hole Diameter: 30mm
- Washer Diameter: 40mm
- Length: 16mm
- Internal Diameter: 27.9mm
- Material & Colour: Thermoplastic Rubber (TPR)
- Colour: Black
- Temperature Resistance: Up to 125°C
Washer Masking for Powder Coating
For wider powder coating work, we also supply a selection of Masking Plugs for threaded holes, plain holes and high temperature finishing tasks.
View our full Washer Masking Plugs range.
Product Support and Trade Orders
For help checking the correct washer masking plug size, washer coverage or suitability for your finishing process, speak with the Vital Parts team on 01233 713581. Our team can help with product guidance, samples where available and support for bulk or repeat trade requirements.
